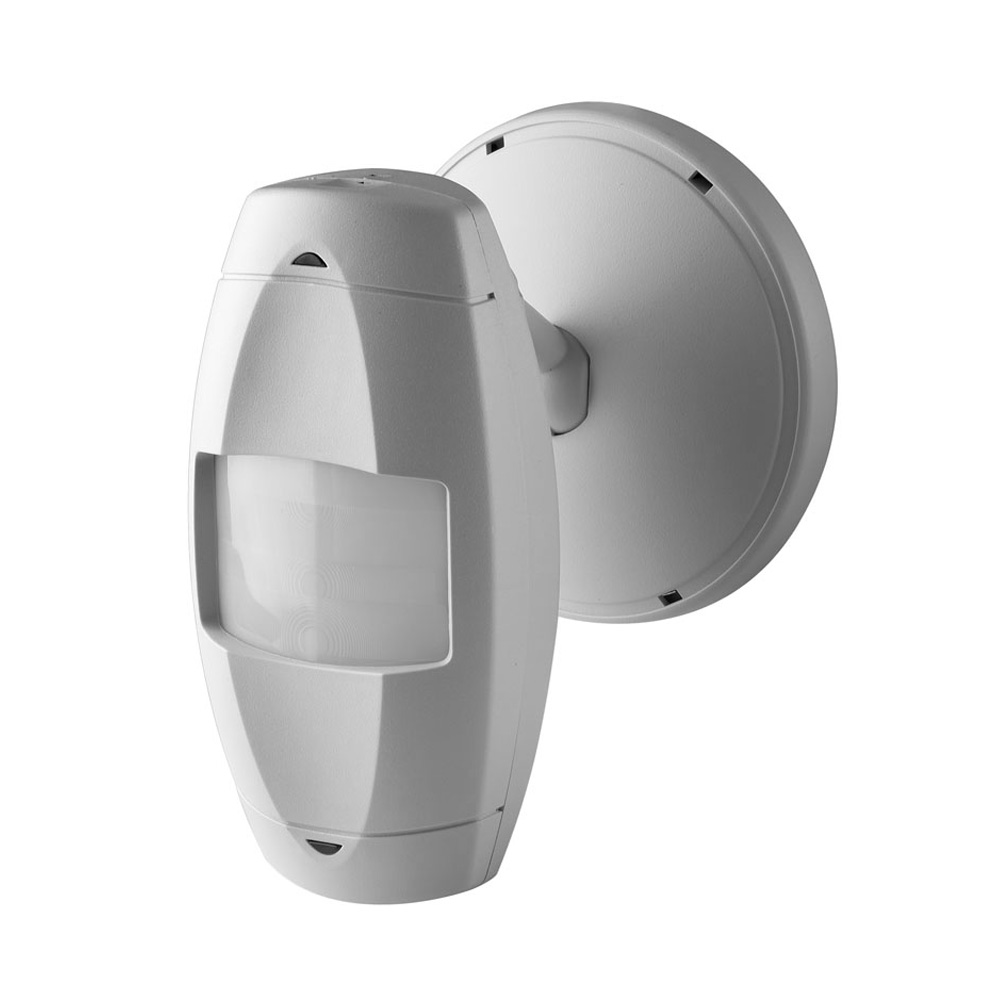

Product image for LEV OSWLR-I0W WH OCC SENS WALL MNT
Email

LEV OSWLR-I0W WH OCC SENS WALL MNT

Manufacturer: Leviton Mfg Co | Catalog # OSWLR-I0W | Cooper Electric Part # 143092
$277.80/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Long Range, PIR, Occupancy Sensor lighting control, Wall Mounted, 24VDC, 15mA power consumption, 10' mounting height, 100' length x 30' width (major motion only), Red LED=PIR, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', Patented Canopy Knuckle for versatile wall and ceiling mounting options, cUL/NOM/ANCE listed, Color: off-white

Technical Information

Amperage
15 mA
Applications
For Commercial use
Coverage
1400 sq-ft
Grade
Commercial
Input Voltage
24 V
Material
Plastic
Mounting Type
Ceiling, Wall
Operating Temperature
0 degrees
Response Time
30 min
Sensor Type
Passive Infrared
Size
71.12 mm
Standard
ANCE Compliant,ASHRAE (Standard 90.1 Compliant),CUL\US Listed 9034,Code Compliance (California Title 24),FCC Compliant,NOM (057)
Temperature Rating
1 - 40 degrees C Operating, -20 to 60 degrees C Storage
Type
Presence Detector
Voltage
24 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477188354
Color
White
Environmental Conditions
0 - 95% Humidity
GTiN
00078477188354
Product UPC
07847718835

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
CUL/US Cert
Country of Origin
Please Contact Customer Service
Made In USA
No
Features
  • Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free \"install and forget\" solution for lighting control
  • Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance
  • Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting
  • Ambient light override prevents lights from turning on when there is ample natural light
  • Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes. Compensates for real-time occupancy patterns- preventing unnecessary on/off switching
  • Non-volitile memory preserves all automatic and manual settings during power outages.
  • Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
  • Excellent 5-Year Limited warranty
  • Typical Applications: Long narrow spaces such as Warehouse Aisles, Hallways and Corridors where a low mounting height is desireable
  • Specifically designed for long, relatively narrow spaces such as hallways and corridors, the OSWLR-I occupancy sensor provides long range and high sensitivity. The OSWLR-I occupancy sensor is a long range lens. This lens provides coverage up to 100 ft. When mounted 10 ft. Above the floor. Can be mounted lower if needed. The mounting base, provided with the sensor, allows quick and easy mounting in corners, on walls or on ceilings. The most common applications are factory storage areas, warehouse aisles and corridors. The OSWLR-I Sensor combines PIR technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free install and forget solution for lighting control . Do you have a question about an occupancy sensor or vacancy sensor?
