Product image for Thomas & Betts F9035 .984 Inch Length 2 AWG 35 mm.. Conductor Size Non-Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts F9035 .984 Inch Length 2 AWG 35 mm.. Conductor Size Non-Insulated Ferrule

Manufacturer: ABB | Thomas & Betts | Catalog # F9035 | Cooper Electric Part # 1430460
$212.77/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

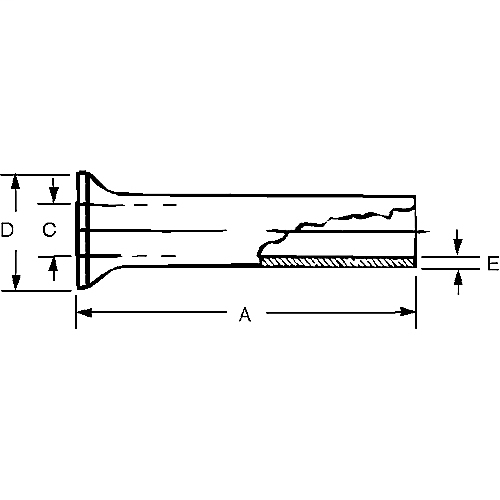

Non-Insulated Ferrule, Length .984 Inches/25mm, Inner Diameter .327 Inches/8.3mm, Outer Diameter .433 Inches/11mm, Conductor Size 2 AWG/35mm2, Copper, Tin Plated

Technical Information

Conductor Size
2 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
2 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336138
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210336138
Product UPC
78621033613

Dimensions

Overall Length
0.984 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
