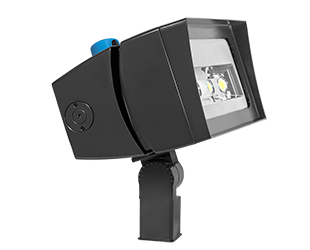

Product image for RAB FFLED230SF/D10/PCT 2307HX6V 5K1
Image thumbnail 0
Image thumbnail 1
Email

RAB FFLED230SF/D10/PCT 2307HX6V 5K1

Manufacturer: Rab Electric Mfg | Catalog # FFLED230SF/D10/PCT | Cooper Electric Part # 1430148
$1,237.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Future Flood, 230W,7Hx6V, 5000k, LED, 120-277V, Dimmable Twistlock Photocell slipfitter, Bronze

Technical Information

Ambient Temperature
104 degrees F
Amperage
0.86 Amp
Applications
OUTDOOR
Average Rated Life
100,000 hr
Color Accuracy
76
Color Rendering Index
76
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Efficacy
140 LPW
Input Wattage
238 W
Lens Material
Clear Glass
Lumens
33,506 Lumen
Minimum Starting Temp
-40 degrees C
Power Factor
120 V
Total Harmonic Distortion
6.3% At 120V,6.6% At 277V
Type
Constant Current
Voltage
120/277 Volt
Wattage
230 Watt

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813674919
Finish
Bronze
GTiN
00019813674919
Product UPC
01981367491
Weight
40.5 lb
Features
  • Ultra-efficient LED and optical design
  • 100,000-hour life based on LM-80 results and TM-21 calculations
  • Air-Flow\" technology heatsink
  • 5-Year, No-Compromise Warranty
  • Equivalency
  • Warranty
  • Patents
  • Buy American Act Compliance
