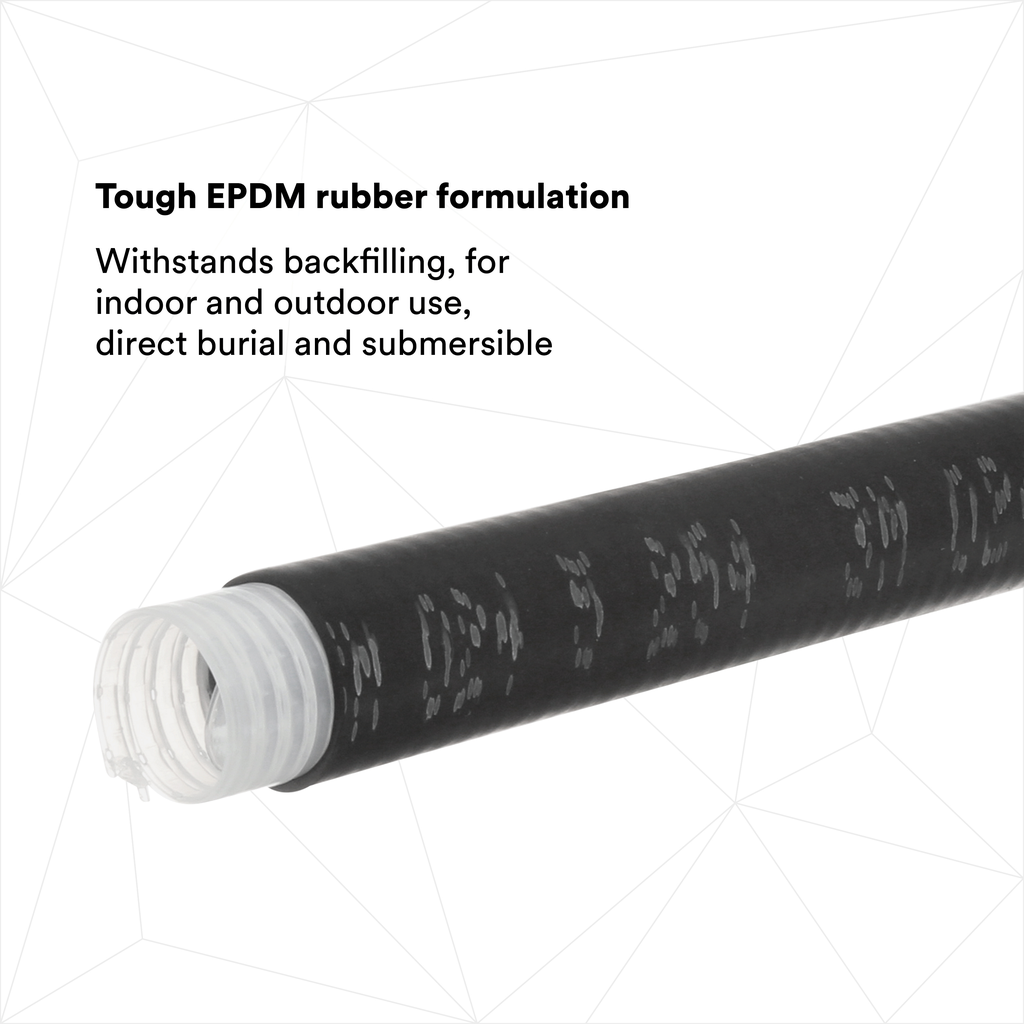

Image thumbnail 2

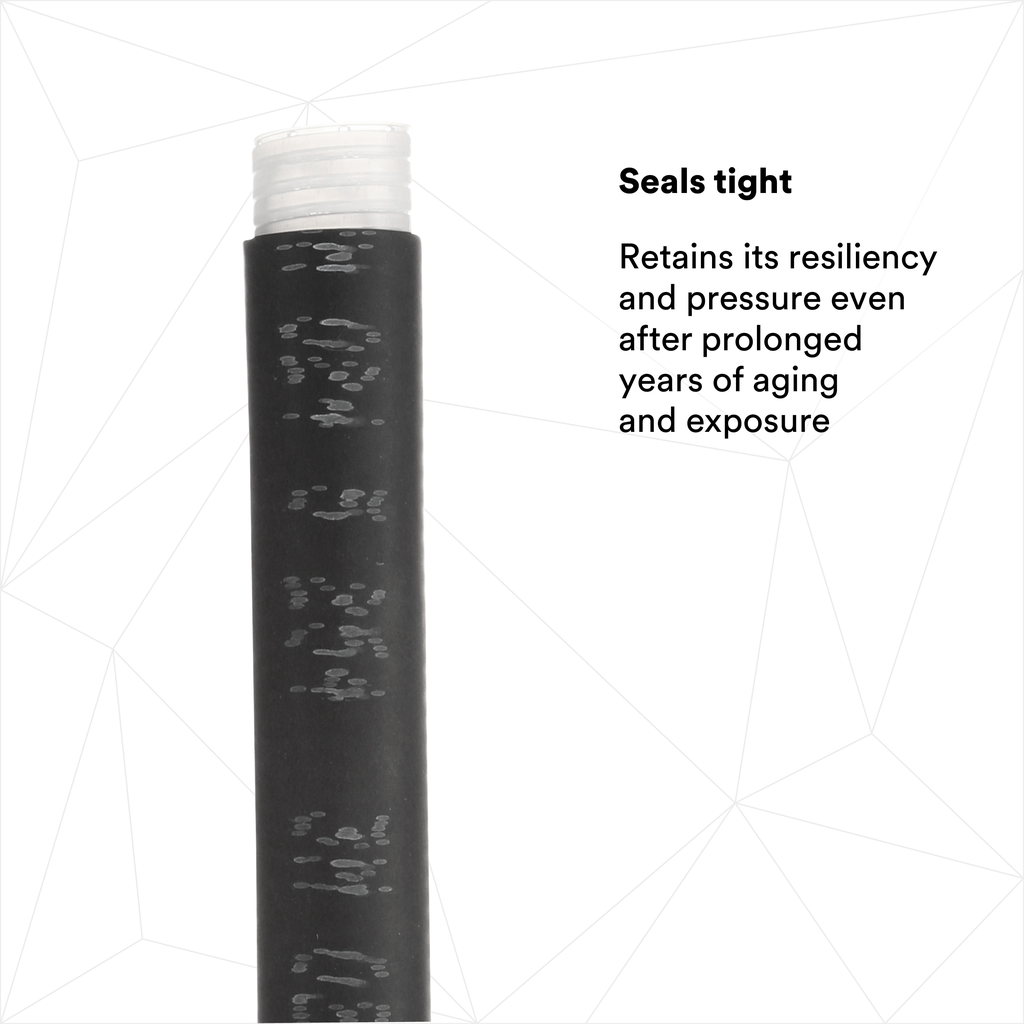

Image thumbnail 3
Image thumbnail 4
Email

3M 8425-8 Cold Shrink Connector Insulator

Manufacturer: 3M | Catalog # 7000031605 | Cooper Electric Part # 143
$69.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Catalog Page Product Spec Sheet Safety Data Sheet
Quick and easy installation, no special tools and no heat requiredSeals tight, retains resiliency and pressureAccommodates a wide range of cable sizesResists acids, alkalis and ozoneNo mastic or tape required to seal

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Size
2 AWG
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Operating Temperature
-40 degrees C
Size
1 AWG; 1/0 AWG; 2 AWG
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Packaging

Units Per Case
10

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007423911
Color
Black
GTiN
00054007423911
Product Type
Cold Shrink
Product UPC
05400742391

Dimensions

Diameter
23.9 mm
Length
203 mm
Overall Length
8.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • DESIGNED TO PERFORM: Offers reliable primary insulation for solid dielectric wires and secondary splices rated up to 1000 volts
  • HIGH-RESISTANCE: Provides excellent wet electrical properties and resists fluid splashes, acids, and alkalis
  • EASY TO INSTALL: Requires no tools or heating sources and can be installed by hand
  • BUILT STRONG: Made of EPDM rubber, enduring operating temperatures ranging from -40 °F to 194 °F (-40 °C to 90 °C)
  • MULTIPURPOSE: For environmental sealing on terminal lug barrels, conduit coupling, conduit-to-cable breakouts, and more
  • WATER-RESISTANT SEAL: Meets the water-resistant requirements of ANSI C-119.1
