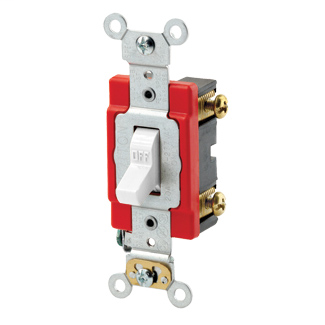

Product image for LEV 1221-7LW 20A 277V SP TOGGLE ILL
Email

LEV 1221-7LW 20A 277V SP TOGGLE ILL

Manufacturer: Leviton Mfg Co | Catalog # 1221-7LW | Cooper Electric Part # 1429895
$57.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton's Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Technical Information

Action
SP
Actuator
Toggle
Amperage
20 Amp
Applications
Commercial
Average Rated Life
50,000 Cycles Minimum
Base Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Material
Silver Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Flamability Class
Rated V-2 Per UL 94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Insulation Material
Brass
Material
Steel
Max Current
16 A
Mounting Type
Box
NEMA
WD-1,WD-6
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Rated Insulation Voltage
1500 V
Screw Material
Brass
Screw Size
8-32,8-32
Screw Type
Brass
Size
46 H x 1.31 W x 1.6 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Terminal Size
14-10 AWG
Toggle Material
Polycarbonate
Torque
12-14 lb-in
Type
Toggle Switch
Voltage
277 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477240434
Color
White,White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477240434
Product UPC
07847724043

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Certifications
UL 20
