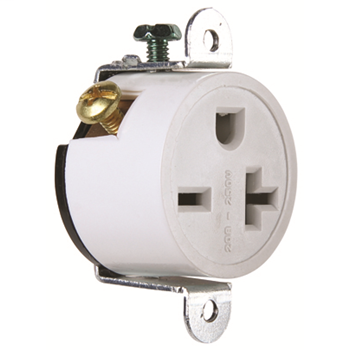

Product image for RECEPT SGL SHORT STRAP 20A 250V
Image thumbnail 0
Image thumbnail 1
Email

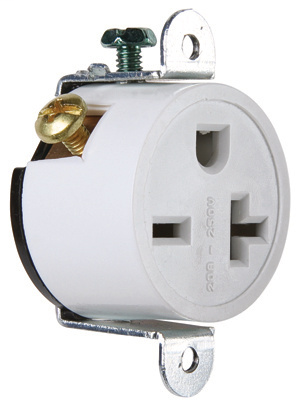

RECEPT SGL SHORT STRAP 20A 250V

Manufacturer: Pass & Seymour / Legrand | Catalog # 5858W | Cooper Electric Part # 142614
$23.03/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Short Strap Spec Grade Single Receptacle, Side Wire, 20amp 250volt, White.

Technical Information

Amperage
20 Amp
Applications
Residential/Commercial
Capacity
Single
Conductor Size
14-10 AWG
Grade
Specification
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.25x1.25x1.81
Type
Non-Reversing
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007585827
Color
White
GTiN
00785007585827
Product UPC
78500758582
UNSPSC
39121406

Dimensions

Depth
1 Inch
Height
1-3/4 Inch
Width
1.49 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Eco-Benefit Information
  • RoHS Compliant
