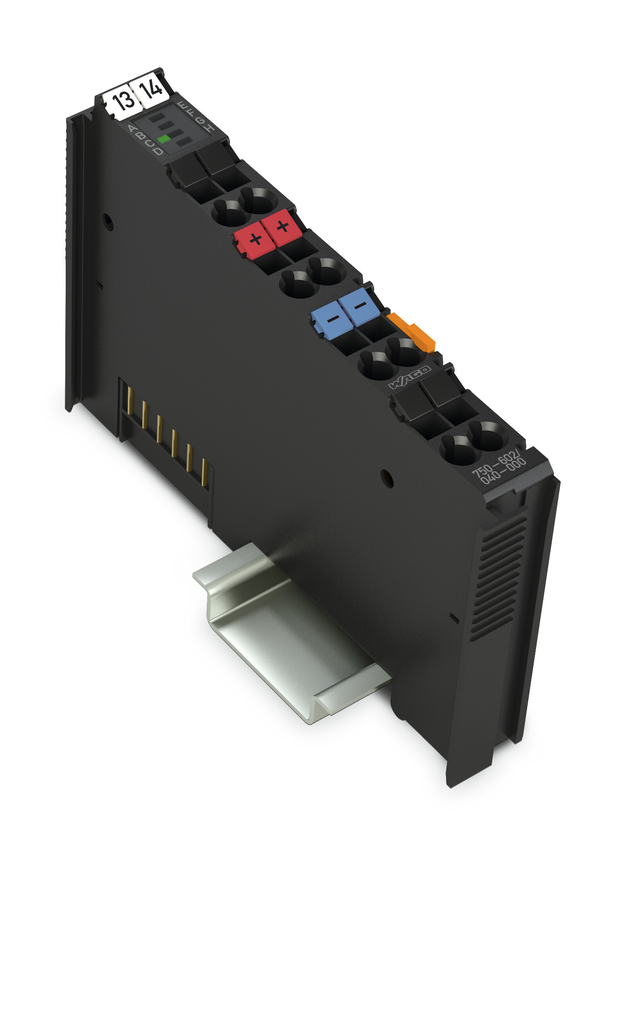

Product image for WAG 750-602/040-000 POWER SUPPLY 24 VDC EXTREME
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

WAG 750-602/040-000 POWER SUPPLY 24 VDC EXTREME

Manufacturer: Wago | Catalog # 750-602/040-000 | Cooper Electric Part # 1426047
$87.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Power Supply with 24 VDC for extreme environments. This supply module provides the I/O modules with the corresponding supply potential. The maximum current provided by the supply module is 10 A. When configuring the system, the total current must not be exceeded. Should higher currents be necessary, an intermediate supply module must be added to the assembly.

Technical Information

Conductor Size
14 AWG
Connection Type
Field Supply
Mounting Type
DIN-35 Rail
Strip Length
0.35 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
050821460163
Color
Gray
Housing Material
Polyamide 6.6,Polycarbonate
Product UPC
05082146016
Weight
44.423 g

Dimensions

Depth
2.669 Inch
Height
3.937 Inch
Width
0.472 in

Certifications and Compliance

Country of Origin
Germany
Features
  • An extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance
Approvals
  • DNV Germany GmbH, DNV, TAA00000Y7, DNV-CG-0339,Aug.2021
  • Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
  • National Radio Research Agency, KC, MSIP-REM-W43-SPP750, Article 58-2, Clause 3
  • Lloyds Register, LR, LR22276776TA
  • CNEX, CCC, 2020312310000214, CNCA-C23-01
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00087/19, TP TC 020/2011
  • American Bureau of Shipping, ABS, 22-2208829-PDA
  • TUEV Nord Cert GmbH, IECEx, IECEx TUN 16.0046X Ex ec IIC T4 Gc, IEC 60079-0
  • WAGO GmbH & Co. KG, UKEx, UKCA_WAGO22UKEX005X_ec, EN 60079-0
  • TUEV Nord Cert GmbH, ATEX, TUEV 17 ATEX 193969XII 3 G Ex ec IIC T4 Gc, EN 60079-0
  • Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
  • Polski Rejestr Statkw, PRS, TE/2215/880590/18
  • Underwriters Laboratories Inc., UL, E175199 Sec.1, UL 508
