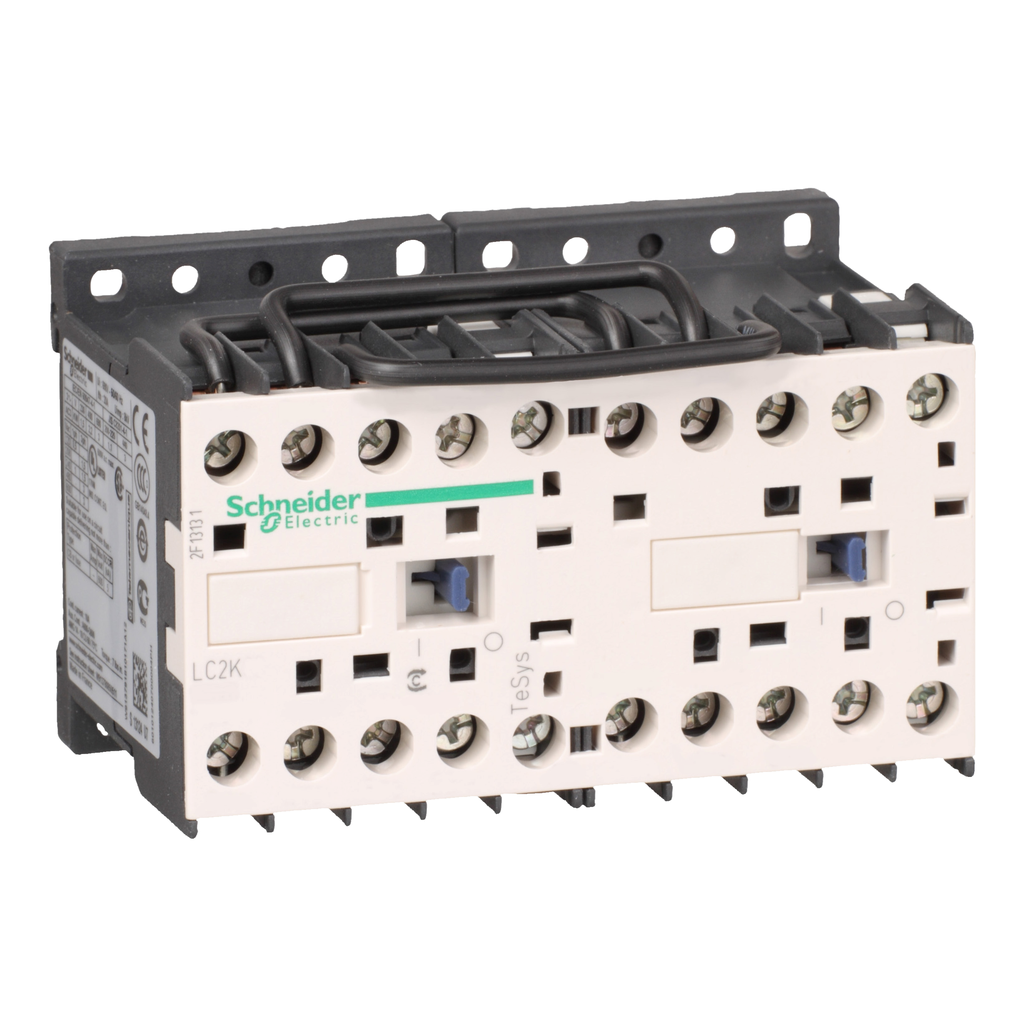

Product image for SQUARED LC2K1201B72 TeSys K reversi
Email

SQUARED LC2K1201B72 TeSys K reversi

Manufacturer: Square-D / Schneider | Catalog # LC2K1201B72 | Cooper Electric Part # 1422968
$265.78/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 12 A, 1 NC, 24VAC coil

Technical Information

Applications
CONTROL,MOTOR CONTROL-RESISTIVE LOAD
Coil Voltage
24 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Contact Configuration
1 NC,3 NO
Contact Rating
20 A 50 AC POWER CIRCUIT-10 A 50 AC SIGNALLING CIRCUIT
Control Circuit Voltage
24 V
Impedance
3 MOhm - Ith 20 A 50 Hz Power Circuit
Net Weight
0.39 kg
Operating Cycles
3600 cyc/h
Operating Temperature
-25-50 Adegrees C
Size
57 MM,58 MM,90 MM
Standard
BS 5424,IEC 60947,NF C 63-110,VDE 0660
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMAFLEXIBLE WITH CABLE END
Type
MECHANICAL,REVERSING CONTACTOR
Voltage
690 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS K

General Product Info

12-Digit UPC
389110225399
GTiN
03389110225396
Product UPC
38911022539
Weight
0.86 lb

Dimensions

Depth
2.24 Inch
Height
2.28 Inch
Warranty Length
18 mth
Width
3.54 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
