STI FFA2208 FIRESTOP ANGLE

Manufacturer: Specified Technologies Inc | Catalog # FFA2208 | Cooper Electric Part # 1422103
$78.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

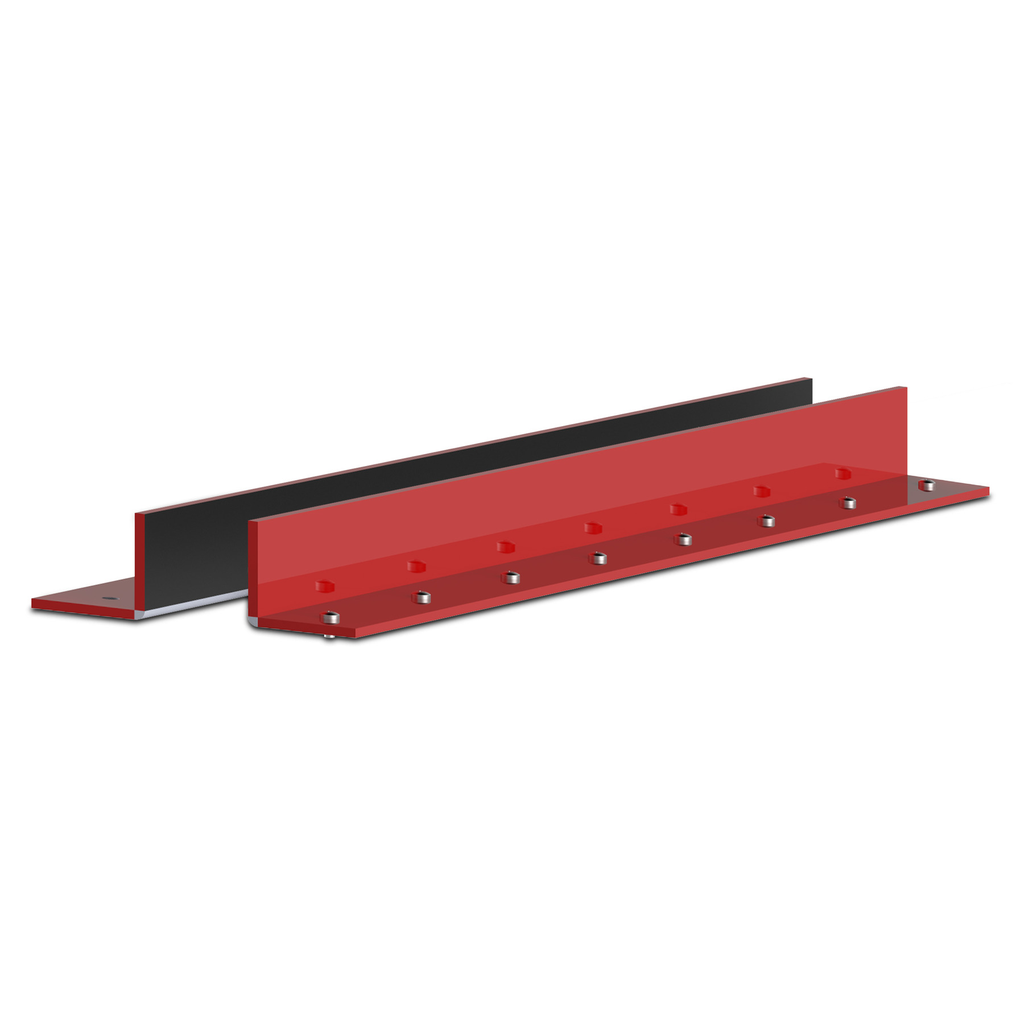

FyreFlange Firestop Angle is a single step solution to addressing HVAC Ductwork penetrations. FyreFlange consists of a heavy steel angle with an intumescent gasket, sealing against fire and smoke while reinforcing ductwork under exposure. Eliminate the headaches of staging and multiple inspections of traditional HVAC firestopping with FyreFlange.

Technical Information

Material
Steel
Type
Duct Firestopping

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573322086
Color
Red
Product UPC
73057332208
Weight
4.32 lb

Dimensions

Height
2 Inch
Length
96 Inch
Width
2 in

Certifications and Compliance

Country of Origin
USA
Features
  • The fire-rated retaining angles shall consist of powder coated galvanized steel angles with a bonded intumescent gasket and an integral corner clip assembly to join angle sections together. The fire-rated retaining angles shall provide a minimum 15x free expansion and shall contain no water soluble expansion ingredients. Fire-rated retaining angles shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
  • Powder coated red for easy identification and inspection, Eliminates the need for sealants and forming materials, Easily installs around bare and insulated rectangular ductwork.
  • Powder coated red for easy identification and inspection
  • Eliminates the need for sealants and forming materials

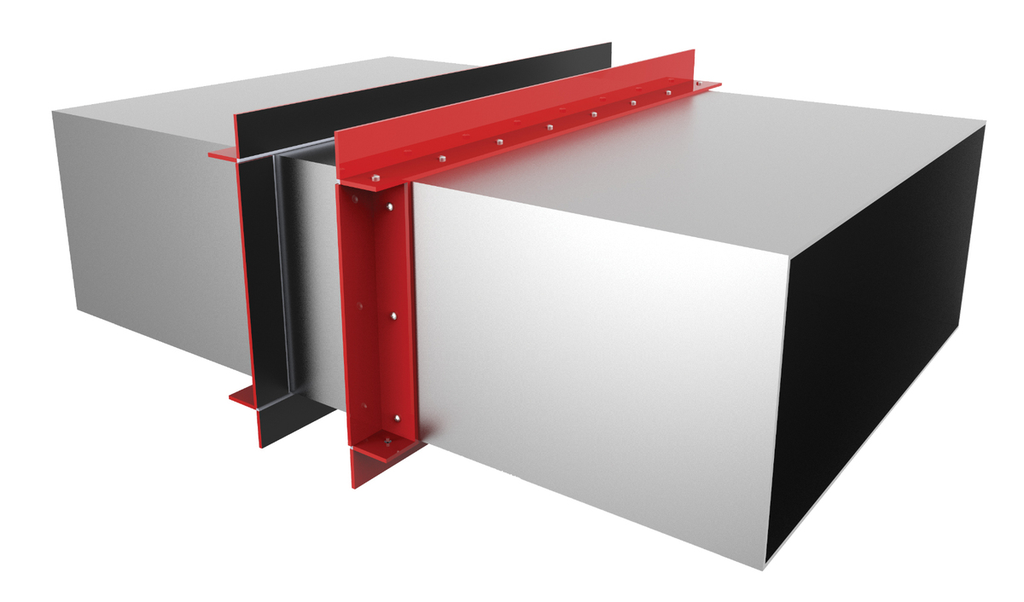

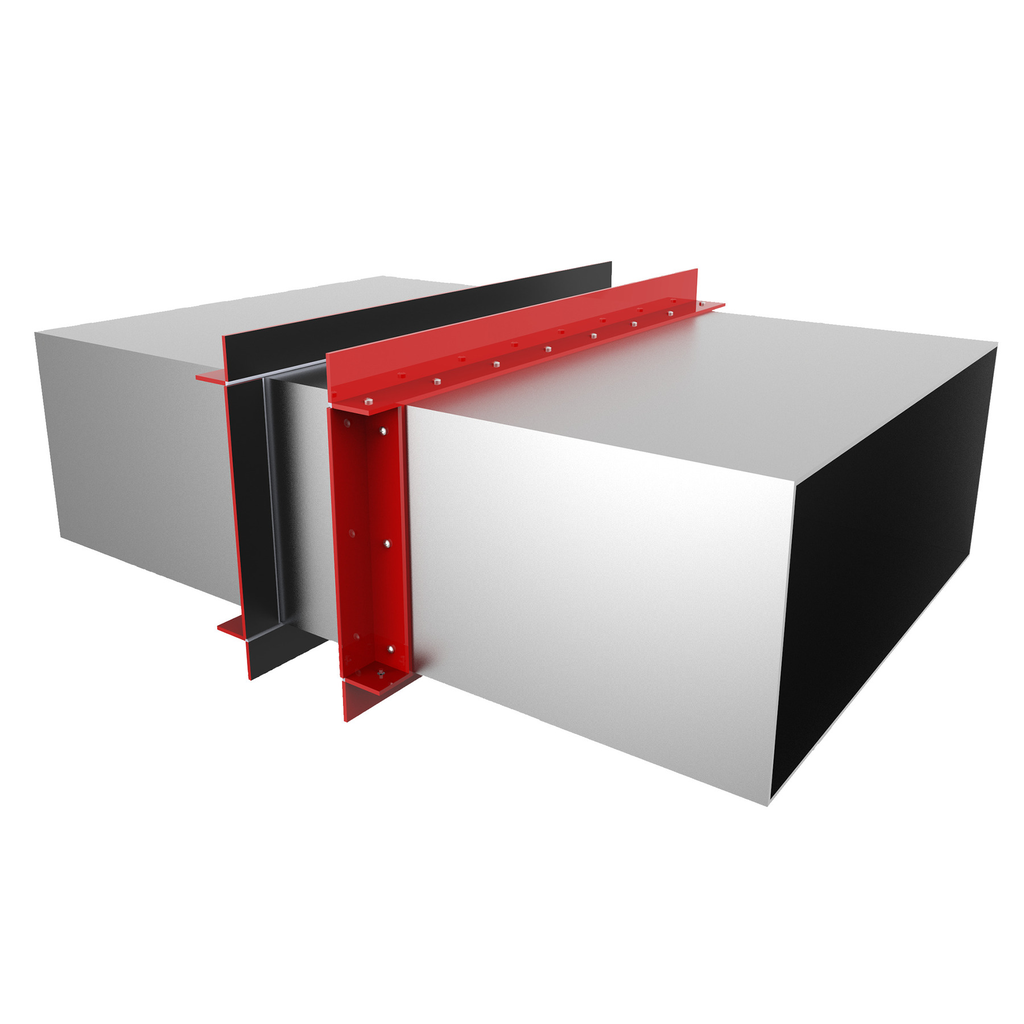

  • Easily installs around bare and insulated rectangular ductwork
  • Eliminates the need for multiple inspections
  • Economical - saves labor

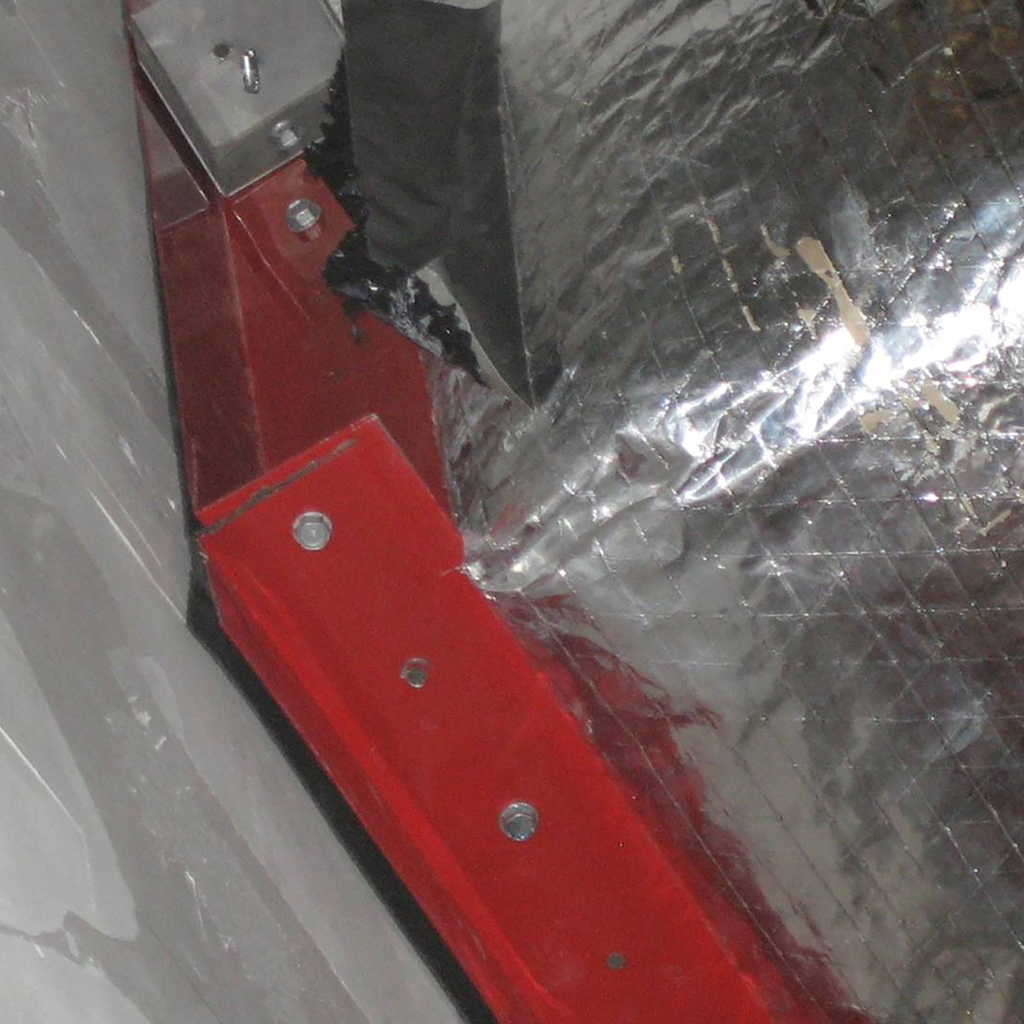

  • Can be installed over or under duct insulation
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: Yes
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • FF Duct Angle
Properties
  • Finished Product
  • Intumescent
  • Low VOC
  • No Expiration
Construction Type
  • Designed for easy installation in floors and walls all types of construction.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • FyreFlange Firestop Angles are engineered for use with steel ducts up to 92 in (234 cm) by 96 in (244 cm) installed through barriers rated up to and including 2 hours tested designs include options for non-insulated duct as well as ducts insulated with up to 2 in (51 mm) thick 3/4 pcf (12 kg/m cu) glass fiber duct wrap.
