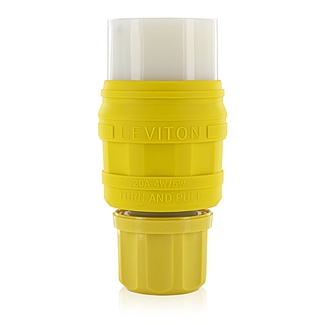

Product image for LEV 76W76-C YLWG CONN LK 3P4W3PHL16
Email

LEV 76W76-C YLWG CONN LK 3P4W3PHL16

Manufacturer: Leviton Mfg Co | Catalog # 76W76-C | Cooper Electric Part # 1420215
$109.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 480 Volt, 3 Phase, NEMA L16-20R, 3P, 4W, Locking Connector for Single Inlet, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
20 Amp
Applications
Industrial
Body Material
Nylon
Conductor Size
16-10 AWG
Connection Type
Screw Terminal
Cord Type
SJ,SJO,SJT,SO,SOO,ST,STO
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
2.31 Diameter X 4.68 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rise
200 %
Type
Locking,Watertight Connector
Voltage
480 Volt
Wire Count
4
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477525173
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477525173
Product UPC
07847752517

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
NEMA
  • L16-20R
