BUR YAEV14R 8-14 RIGHT ANGLE, 12-14

Manufacturer: Burndy | Catalog # YAEV14R | Cooper Electric Part # 1417133
$2.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet

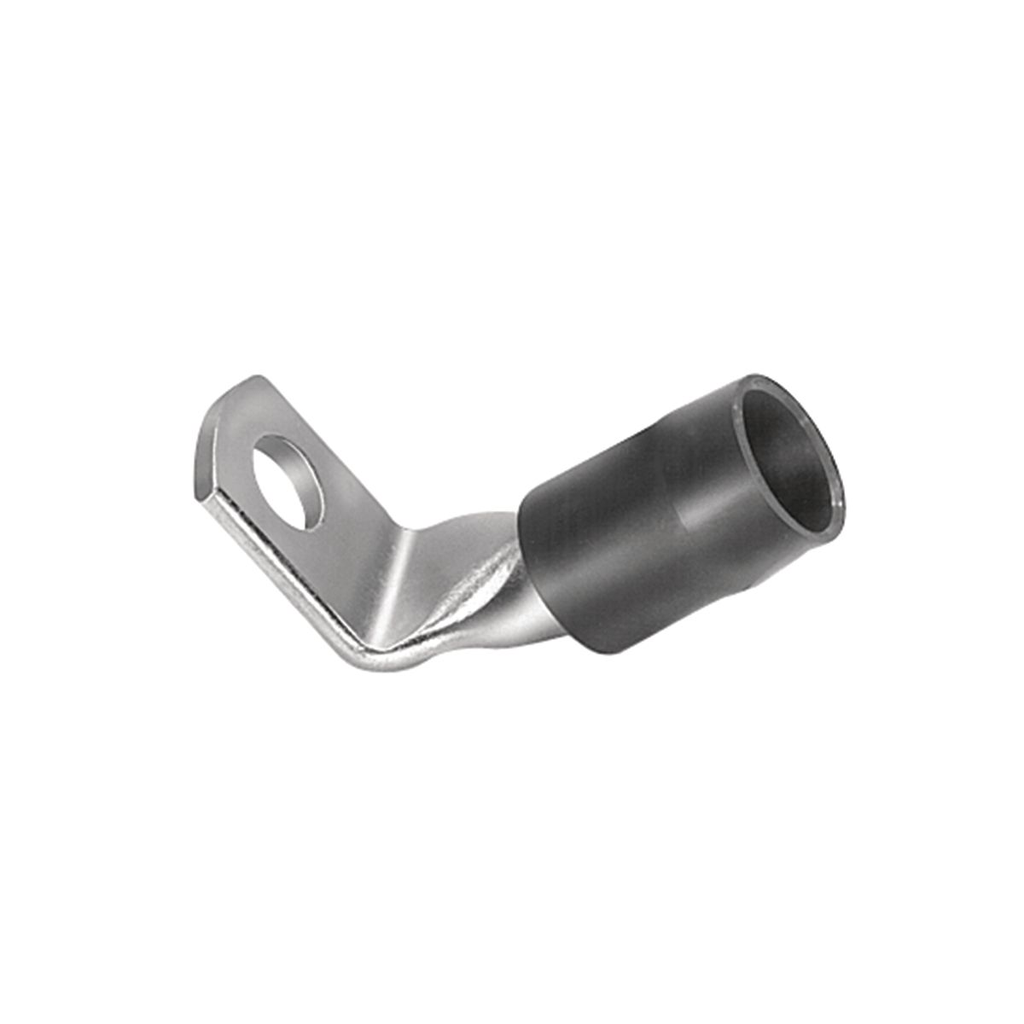

INSULUG™ Nylon Insulated Ring Terminal, Right Angle; Accommodates: #14 - #16 AWG; Stud: #8 - #10; Length: .40"; Width: .33"

Technical Information

Applications
For Very Demanding High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Color Coding
Blue
Conductor Size
14 AWG
Connection Type
Ring Terminal
Insulation Type
Nylon
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Type
Terminal
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810082232
Color
Blue
Finish
Tin Plated
GTiN
00781810082232
Product UPC
78181008223

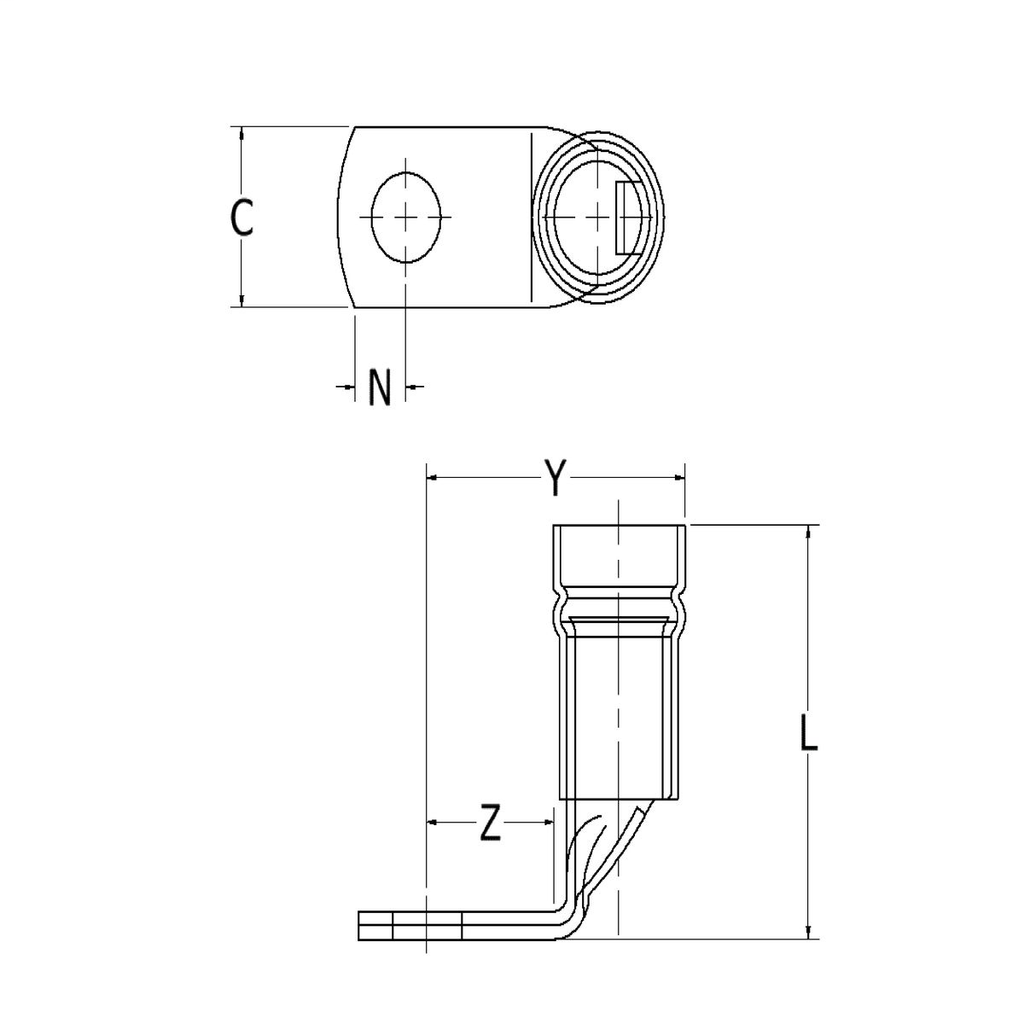

Dimensions

Height
0.4 Inch
Hole Size
0.20 in
Length
0.73 Inch
Width
0.33 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Double thick tongue for maximum reliability and electrical capacity plus an extra strong terminal tongue
  • Manufactured from one-piece pure electrolytic copper high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
  • Electro-tin plated to provide long-lasting corrosion resistance
  • Nylon insulation is locked in place Insulation will not move or twist off
  • 600 volt nylon insulation providing high dielectric strength and stability in demanding oily evironmental conditions
  • Color Coded providing quick, easy wire size connector selection
