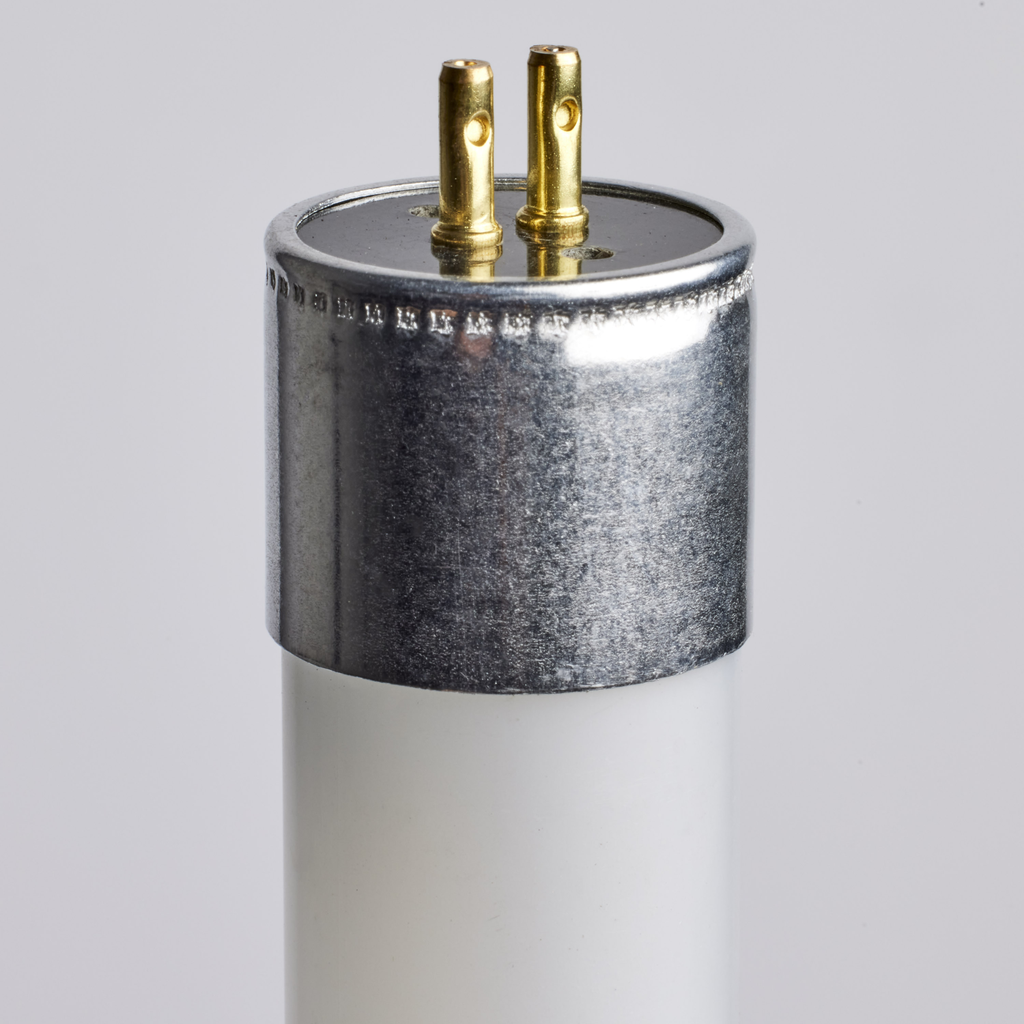

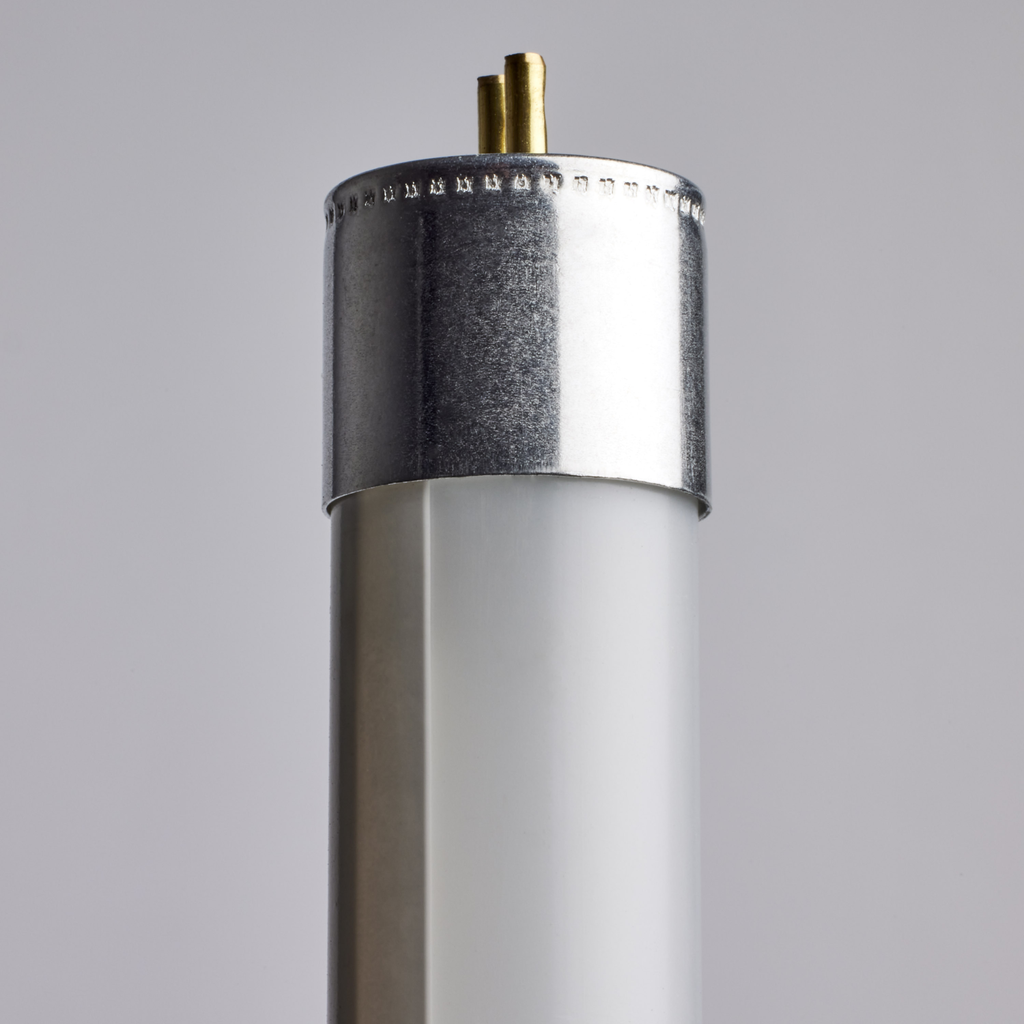

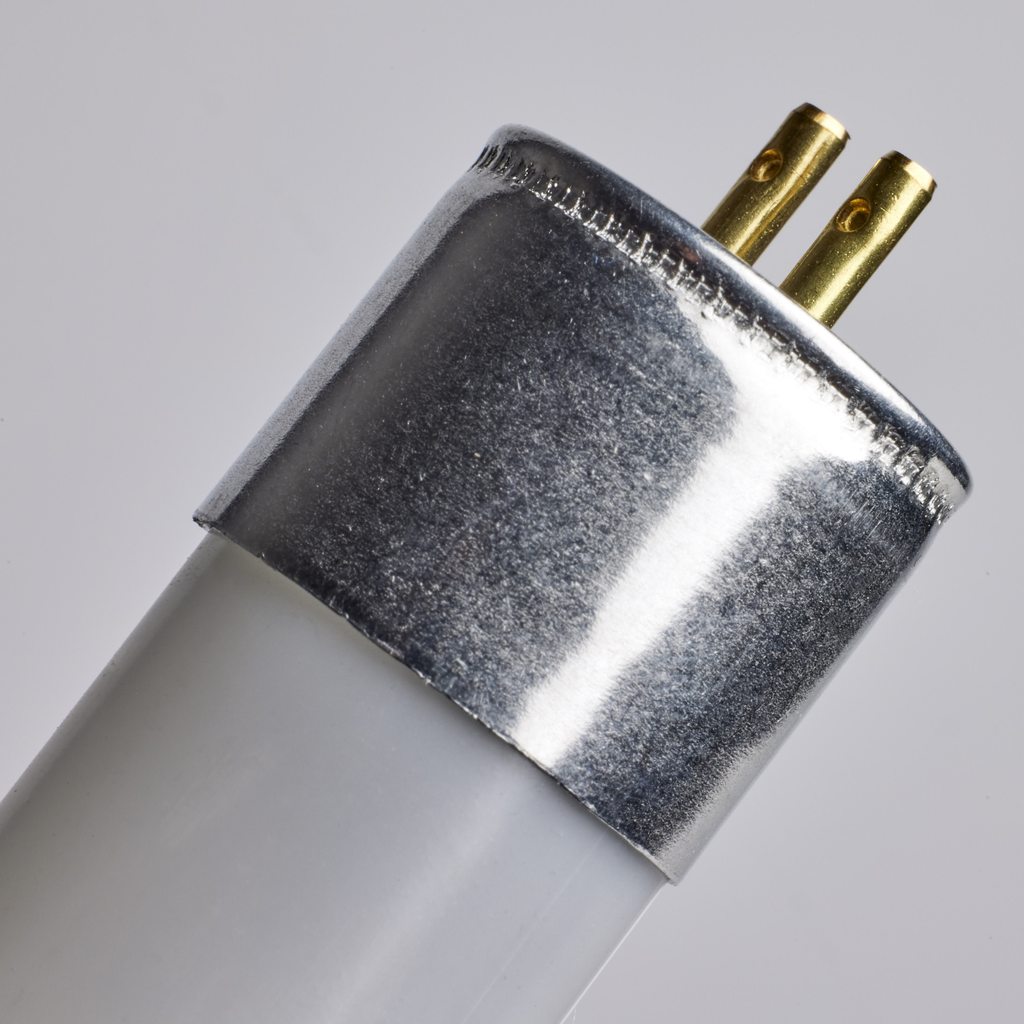

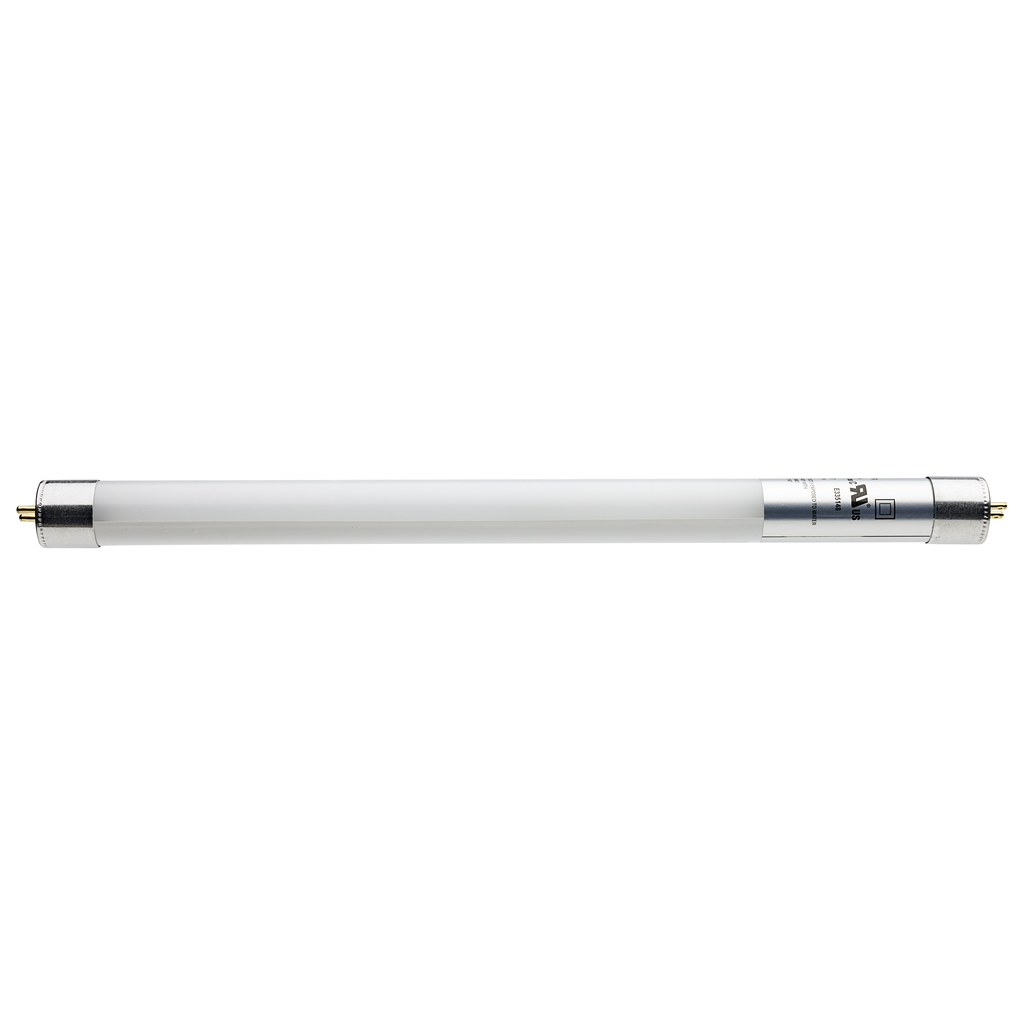

Product image for Satco S11906 4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S11906 4 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Manufacturer: Satco | Nuvo | Catalog # S11906 | Cooper Electric Part # 1416852
$11.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
4W T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 400 Lumens; 120-277V; Type B; Ballast Bypass; Double Ended Wiring

Technical Information

Amperage
0.033-0.014 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Angle
240
Beam Spread
240
Bulb Shape
T5
Color Accuracy
82
Color Rendering Index
82
Color Temperature
6500 K
Correlated Color Temp
6500 K
Dimmable?
No
Incandescent Equivalent
25 W
Lens Color
Frost
Lumens
400 Lumen
Material
Glass
Operating Frequency
50 Hz
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Lamps
Voltage
120 Volt
Wattage
4 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119064
Finish
Frosted
GTiN
00045923119064
Product UPC
04592311906
Weight
0.08 lb

Dimensions

Diameter
0.63 Inch
Length
11.91 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 11.91 inches, MOD: 0.83 inches
  • Superior 82 CRI light quality, 400 lumens, 6500K daylight, with a 240 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 8 Watt fluorescent equivalent
  • Frost finished linear bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
  • Replaces F8T5/D lamps
Ballasting Requirements
  • No ballast or external driver required
Installation Notes
  • Not for use in vapor tight fixtures. Direct wire 120-277V line voltage
  • Double ended wiring
