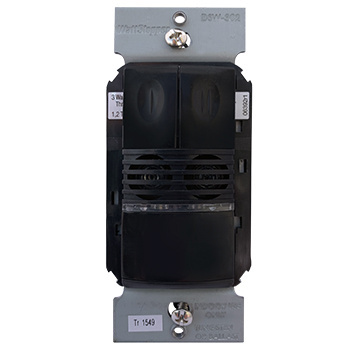

Product image for OnQ DSW-302-B DT-SWTCH OCC SNSR, 12
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

OnQ DSW-302-B DT-SWTCH OCC SNSR, 12

Manufacturer: Wattstopper / Legrand | Catalog # DSW-302-B | Cooper Electric Part # 1415519
$139.90/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
The DSW-302 dual technology wall switch sensor turns lights ON and OFF based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-302 replaces existing wall switches and fits a standard decorator wall plate.

Technical Information

Amperage
8.3 Amp
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Connection Type
Wired
Indicator
True
Load Rating
1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Number of Connections
6.0
Sensor Type
Occupancy
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Switch Type
Motion Sensor, Push
Type
Core Balanced

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935451
Color
Black
Finish
Matte
GTiN
00754182935451
Product UPC
75418293545

Dimensions

Depth
1.83 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.76 in

Certifications and Compliance

Country of Origin
China
Features
  • Color-matched lens and low profile for appealing design
  • 120/240/277 VAC and 347 VAC models
  • Defaults to Manual-ON operation for maximum energy savings
  • Retrieving data. Wait a few seconds and try to cut or copy again.
  • High sensitivity and dense coverage for exceptional performance
  • Two relays for control of two separate lighting loads or circuits
