Panduit FHS9N-12-10P LC Splice Cassette, OS2, 12 Fiber Discrete Pigtail

Manufacturer: Panduit Corp | Catalog # FHS9N-12-10P | Cooper Electric Part # 1414301
$601.85 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet Installation / Instruction Manual Engineering Drawing Product Brochure

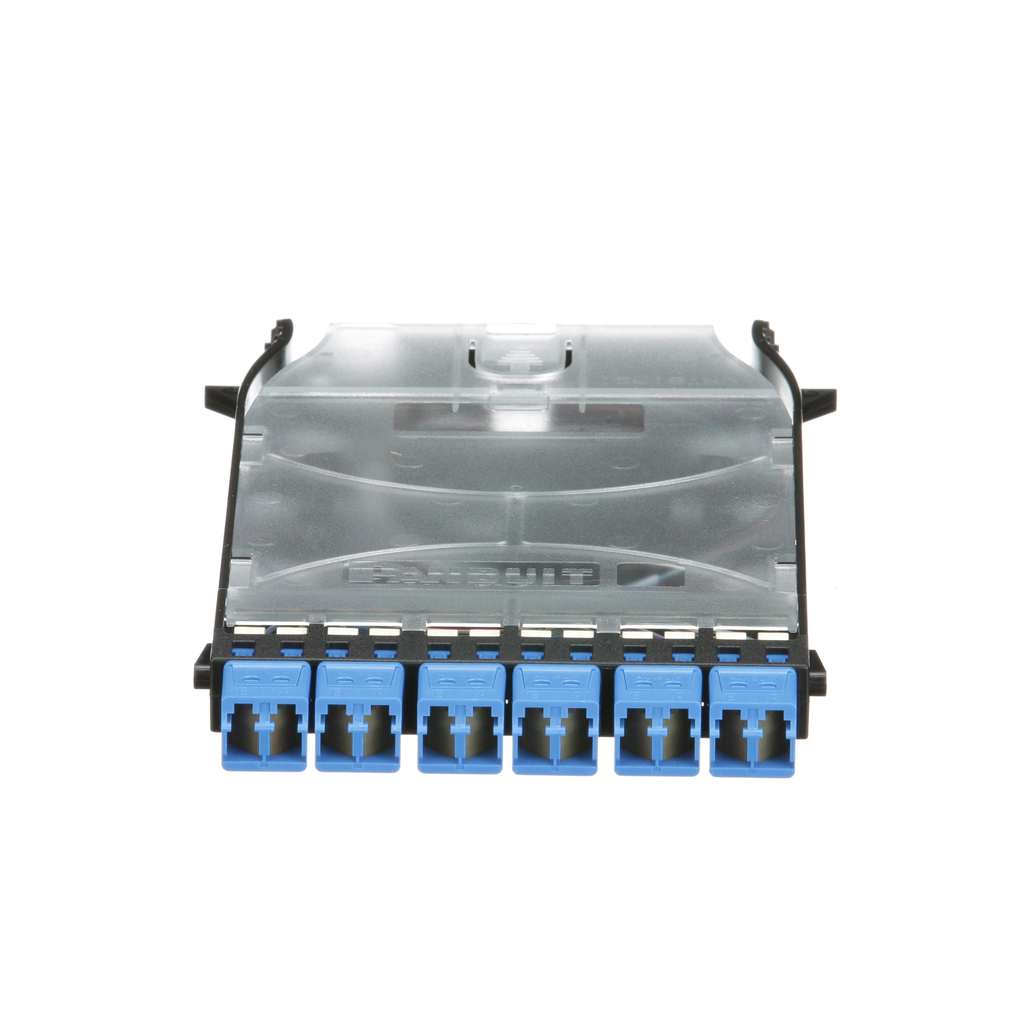

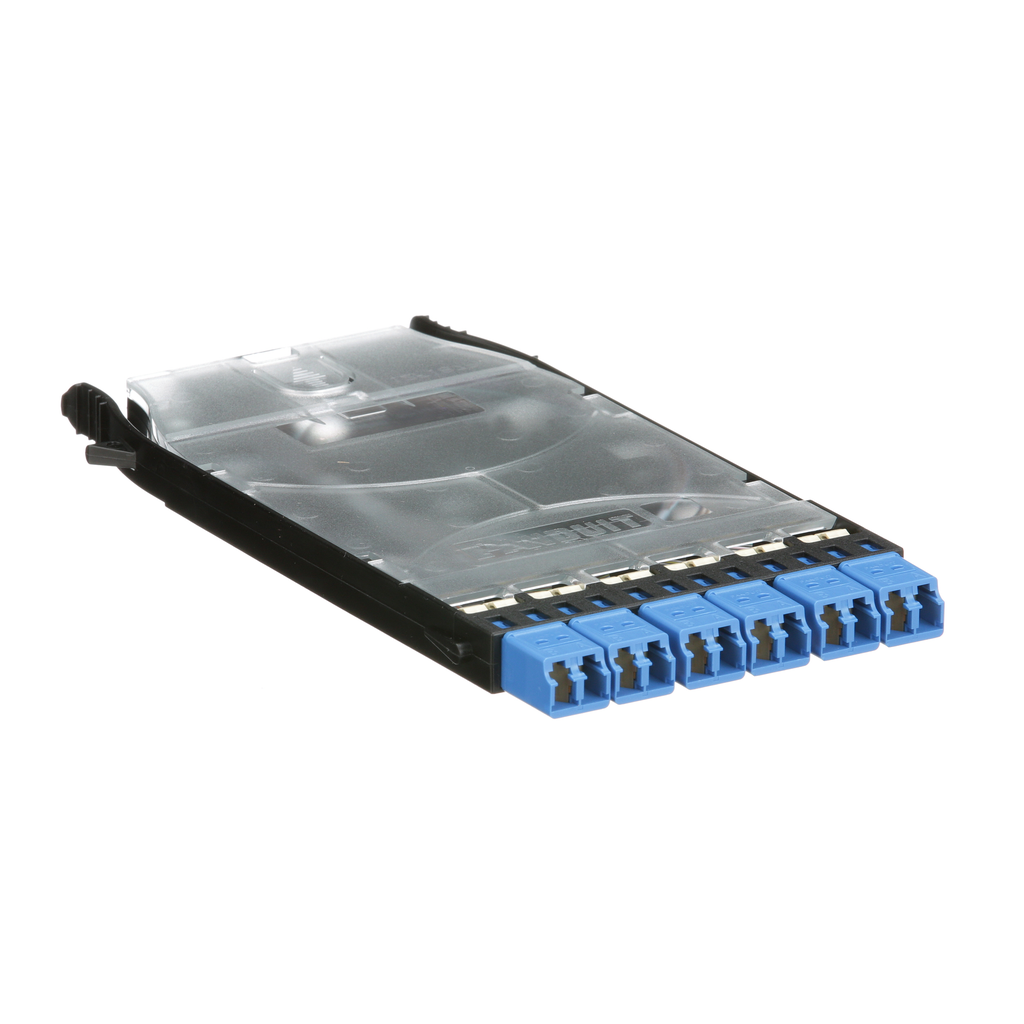

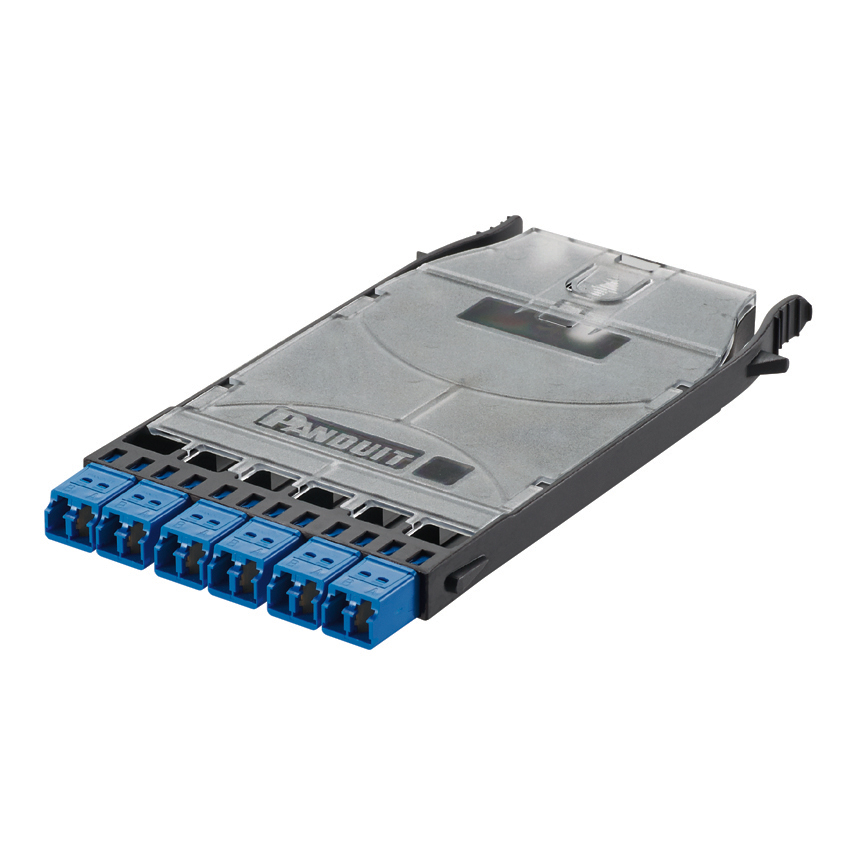

The HD Flex™ LC Splice Cassette is preloaded with 12 discrete OS2 standard IL pigtails and 12 splice sleeves. The cassette has a black cover and 6 blue duplex LC adapters with integral shutters to prevent contamination.

Technical Information

Applications
For use to Allows System Designers to Tailor Configuration, Reach and Breakout Construction to Application Requirements to Minimize Waste, Optimize Cable Management, Speed Deployment and Improve Flexibility, Manageability for Lower Installation Costs
Connection Type
LC Duplex
Connector Type
LC Duplex
Fiber Count
12
Fiber Type
OS2 9/125 m
Material
Zirconia Ceramic
Number of Fibers
12
Number of Ports
6
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Temperature Rating
0 - 70 degrees C
Type
HD Flex Splice Cassette

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
HD Flex™

General Product Info

12-Digit UPC
074983039920
Color
Blue Adapter
GTiN
00074983039920
Product UPC
07498303992

Dimensions

Depth
7.3 Inch
Height
0.46 Inch
Width
7.5 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica,Romania
