LEV GFTR2-5LW WH SLCK PRO ST TR GFC

Manufacturer: Leviton Mfg Co | Catalog # GFTR2-5LW | Cooper Electric Part # 1413611
$44.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

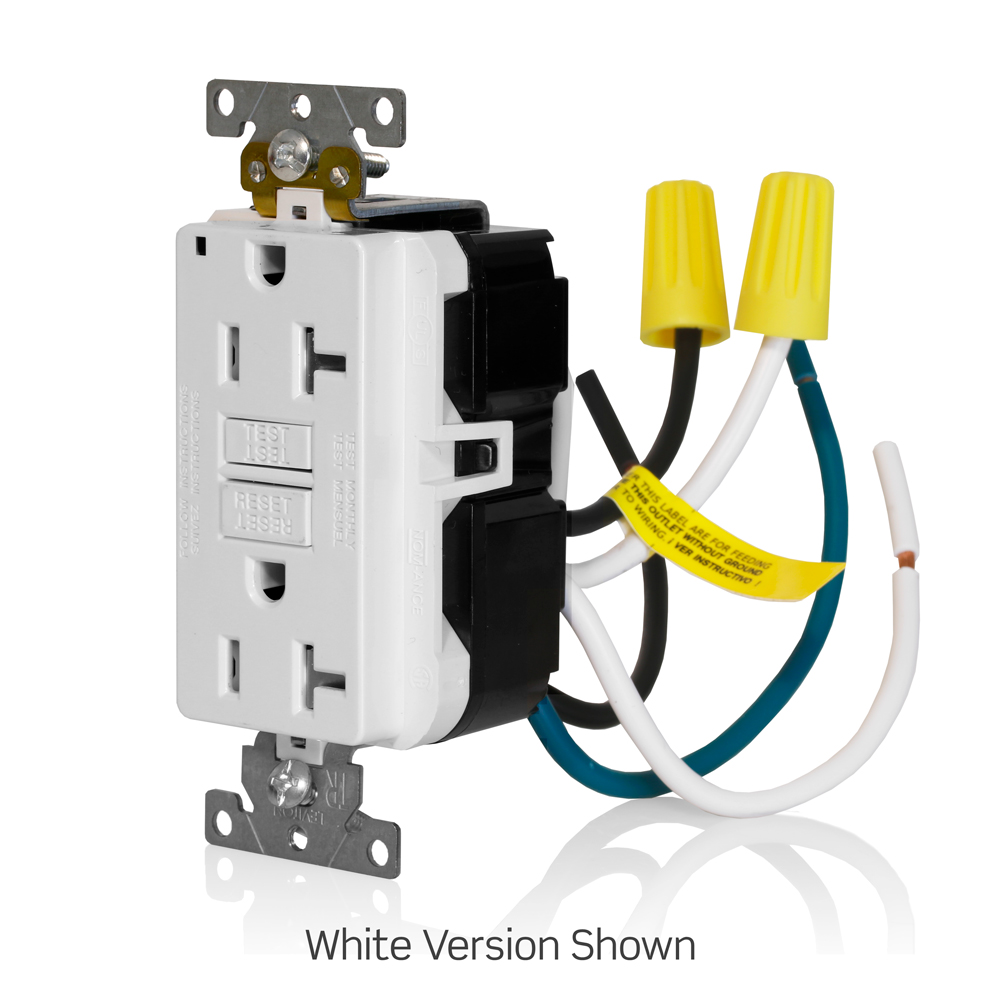

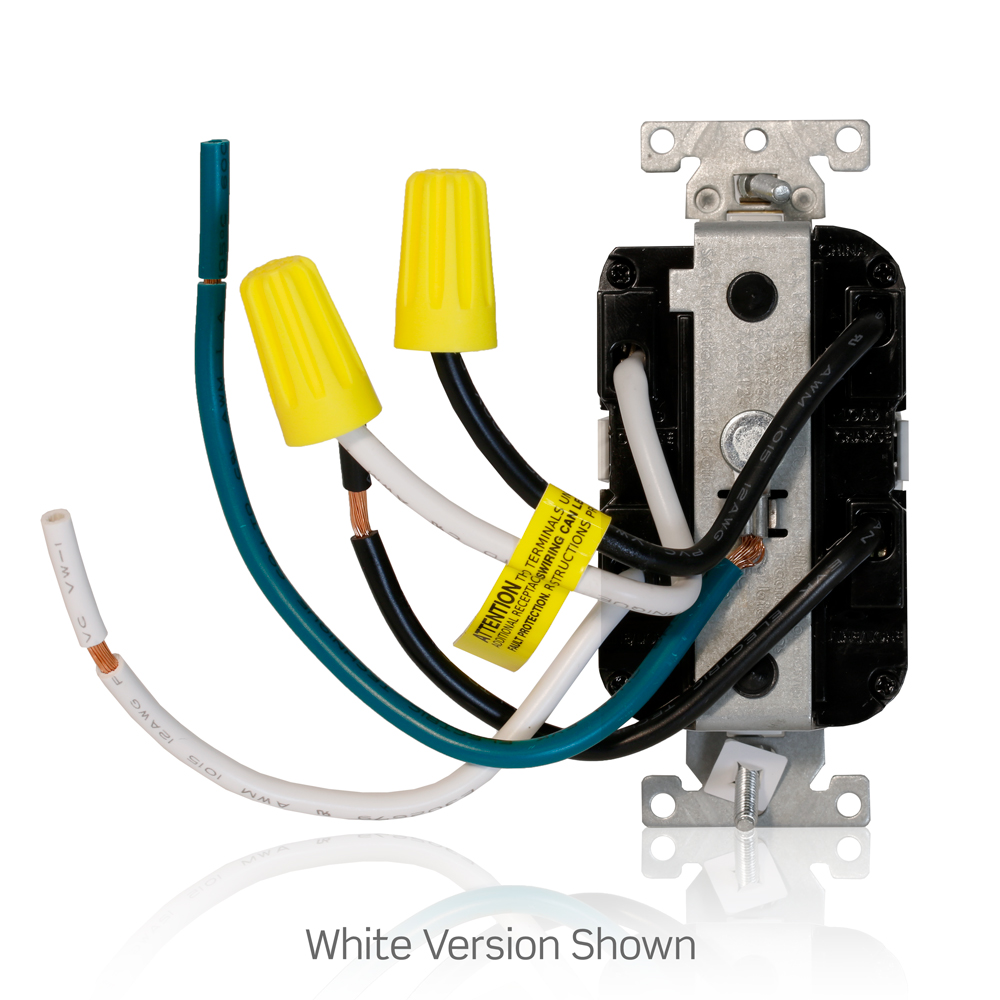

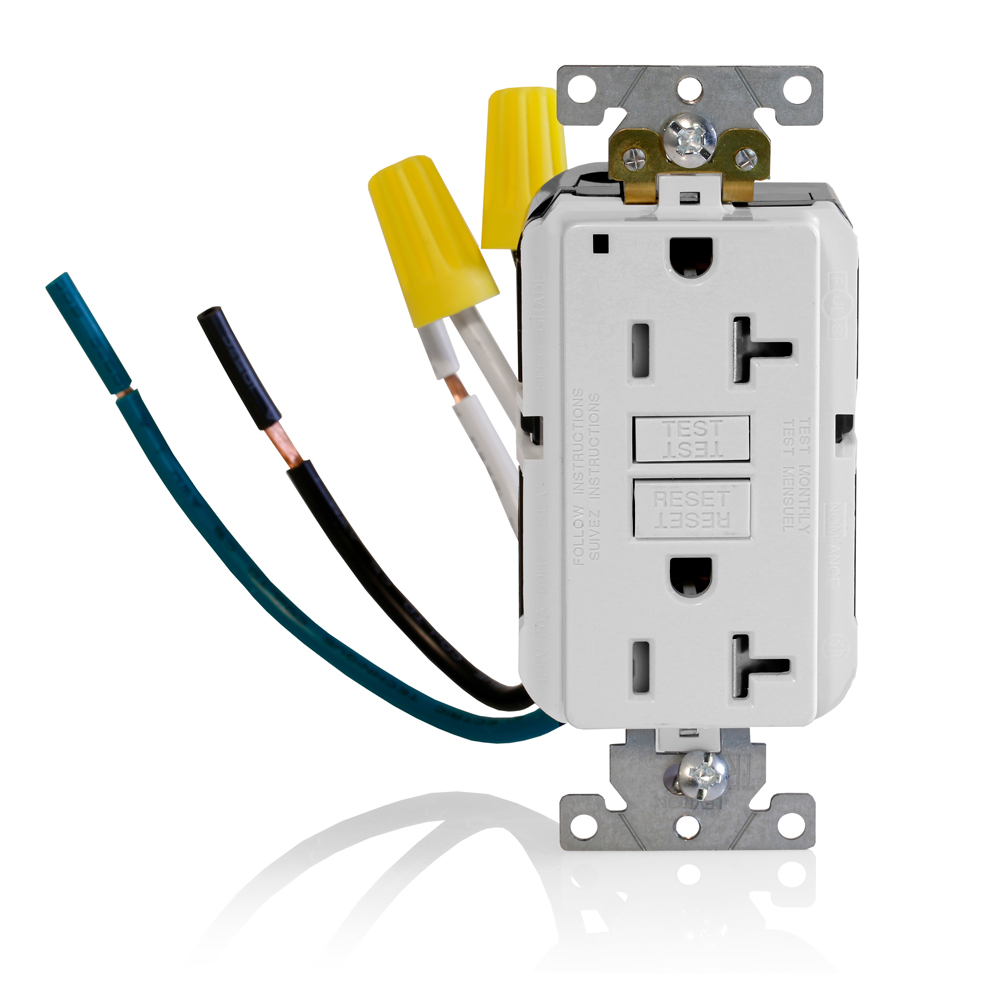

SmartlockPro Self-Test GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Tamper-Resistant, Power Indication, 20 Amp, 125 Volt, Pre-Wired Leads, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 Amp
Applications
Extra-Heavy Duty Industrial Grade
Body Material
Polycarbonate
Device Type
Duplex Receptacle Outlet
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-0 Per UL 94
Grade
Extra Heavy-Duty Hospital
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate
NEMA
WD-1
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Temperature Rating
-35 To 66 degrees C
Termination Type
Pre-Wired Leads
Torque
14 lb-in
Type
Self-test SmartLock Pro Slim GFCI
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT C/I GFCI

General Product Info

12-Digit UPC
078477724309
Color
White
GTiN
00078477724309
Product UPC
07847772430

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CSA,NOM-ANCE,UL
Country of Origin
China
Patents
  • CA2621644
  • CA2677283
  • MX302458
  • MX308495
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8587914
  • US8599522
  • US9053886
  • US9077091
NEMA
  • 5-20R
Color Variations
  • Black
