Erico LPA30212 Air Terminal Base, Adjustable, Imperial Thread, Aluminum, 1/2 UNC Thread, Flat

Manufacturer: Erico, Inc | Catalog # LPA30212 | Cooper Electric Part # 1412101
$36.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

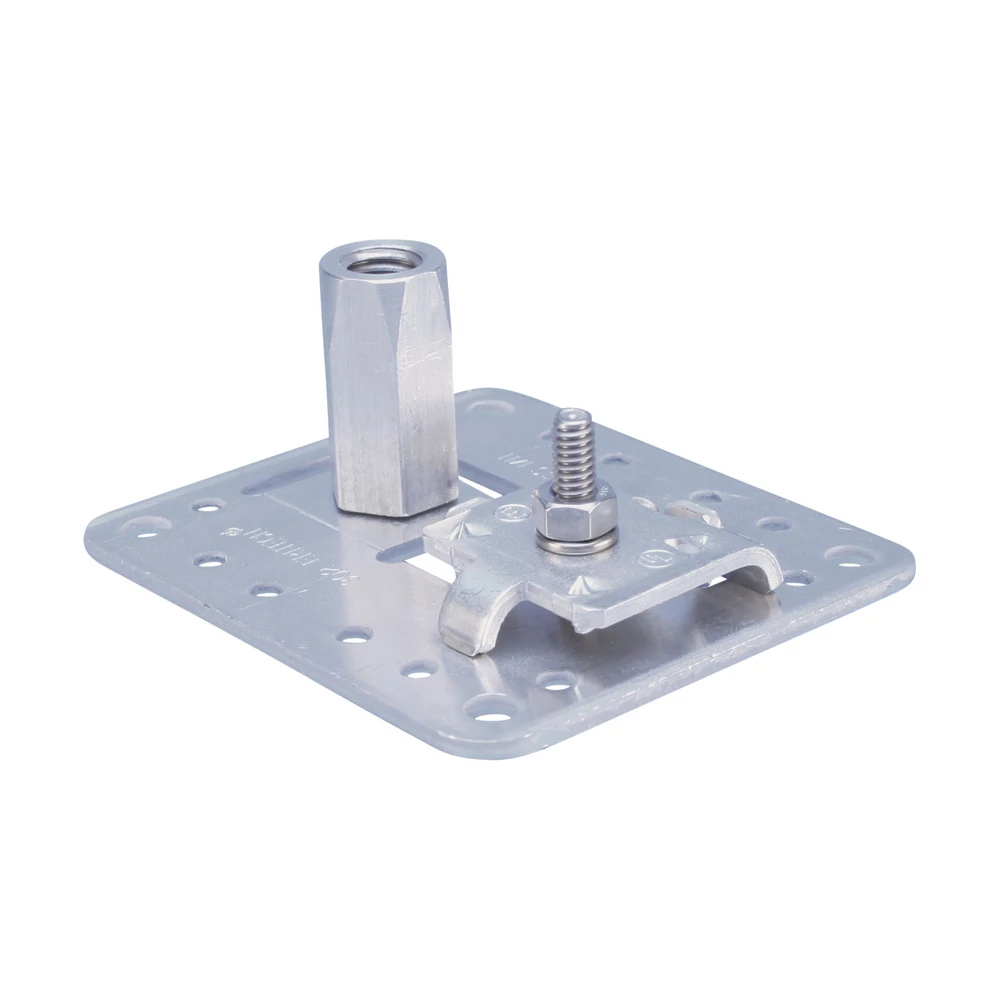

Air Terminal Base, Stamped Adjustable, Imperial Thread. Adjustable, Imperial Thread, Aluminum Air Terminal Base with 1/2 UNC Thread.

Technical Information

Applications
Lightning Protection
Conductor Size
4/0 AWG
Material
Aluminum
Standard
UL
Thread Size
1/2 UNC
Type
Flat

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856584575
GTiN
00782856584575
Product UPC
78285658457
Weight
0.12 kg

Dimensions

Depth
3-1/2 Inch
Height
1-3/8 Inch
Hole Size
9/32 in
Width
4 in

Certifications and Compliance

Certifications
UL
Features
  • For use on flat, vertical or sloping surfaces
  • Air terminal support tab is field adjustable, eliminating the need for swivel adaptors
  • Available pre-configured for vertical applications
  • Install with adhesive or screw down fixings
  • Positive single bolt tension for multi-directional cable clamping
Certifications
  • UL ANSI/UL 96
