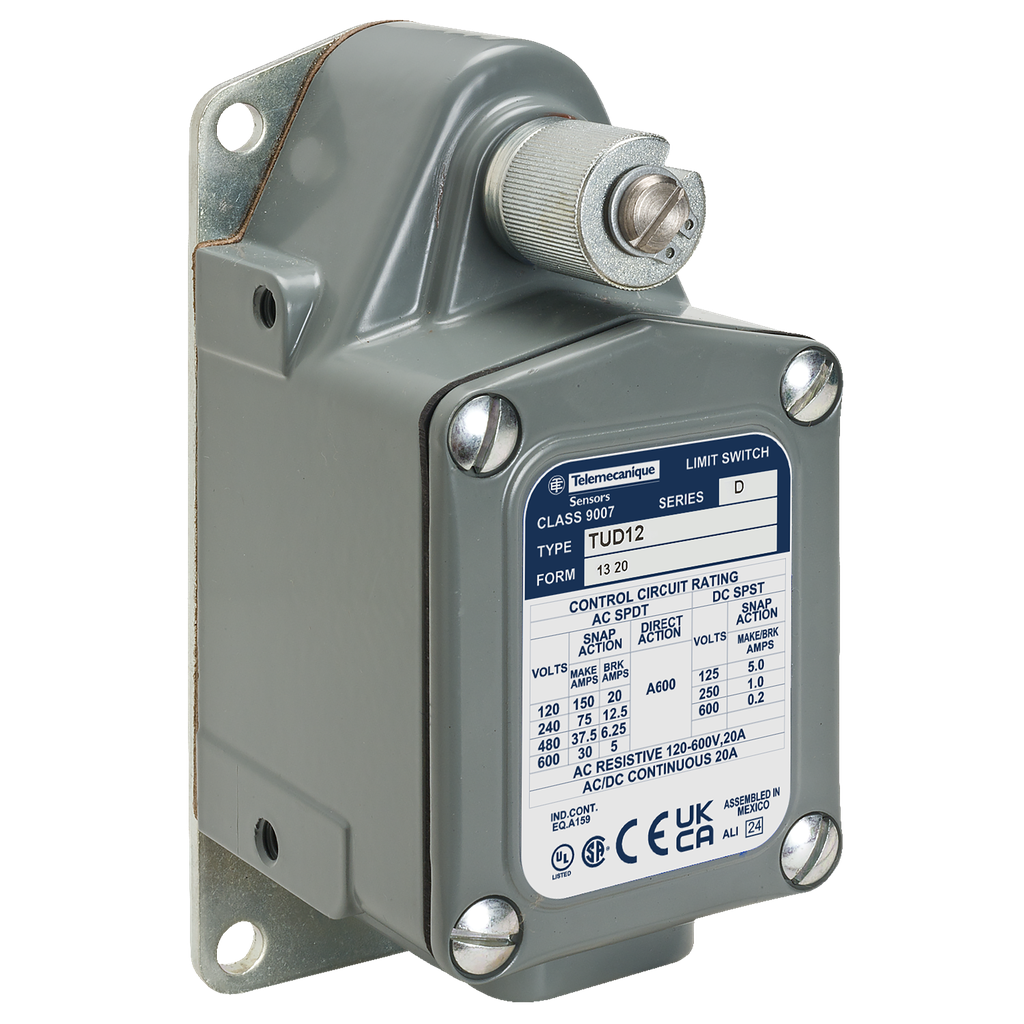

Product image for TES 9007TUD12 Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2" NPT
Image thumbnail 0
Image thumbnail 1
Email

TES 9007TUD12 Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2" NPT

Manufacturer: TES Electric | Catalog # 9007TUD12 | Cooper Electric Part # 1407296
$859.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Limit switch, 9007, 9007FT mill universal, spring return, CW+CCW, 1/2" NPT

Technical Information

Action
Snap action;From left or right;CW and CCW;Lateral approach
Actuator
Spring return without operating lever
Amperage
20 Amp
Applications
Universal mill switch
Body Material
Cast Zinc
Body Type
Fixed NULL
Cable Entry
1 entry for 1/2" - 14 NPT ANSI B1.20.1
Contact Configuration
FORM Z SINGLE POLE DT-DB
Contact Material
Silver Flashed Copper
Contact Rating
NEMA A600/P600
Enclosure
NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
Head Type
Rotary head NULL
Net Weight
2.5 lb
Number of Poles
1 Pole
Operating Temperature
-10-185 Adegrees F
Size
2.44 in
Storage Temperature
-10-185 degrees F
TC Connection
SCREW-CLAMP TERMINALS AWG 22...AWG 12
Type
Limit switch

Manufacturer Information

Brand
Telemecanique
Sub Brand
9007T/FT

General Product Info

12-Digit UPC
785901729334
GTiN
00785901729334
Product UPC
78590172933
Weight
2.5 lb

Dimensions

Depth
2.44 Inch
Height
4.66-4.66 Inch
Warranty Length
18 mth
Width
2.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
