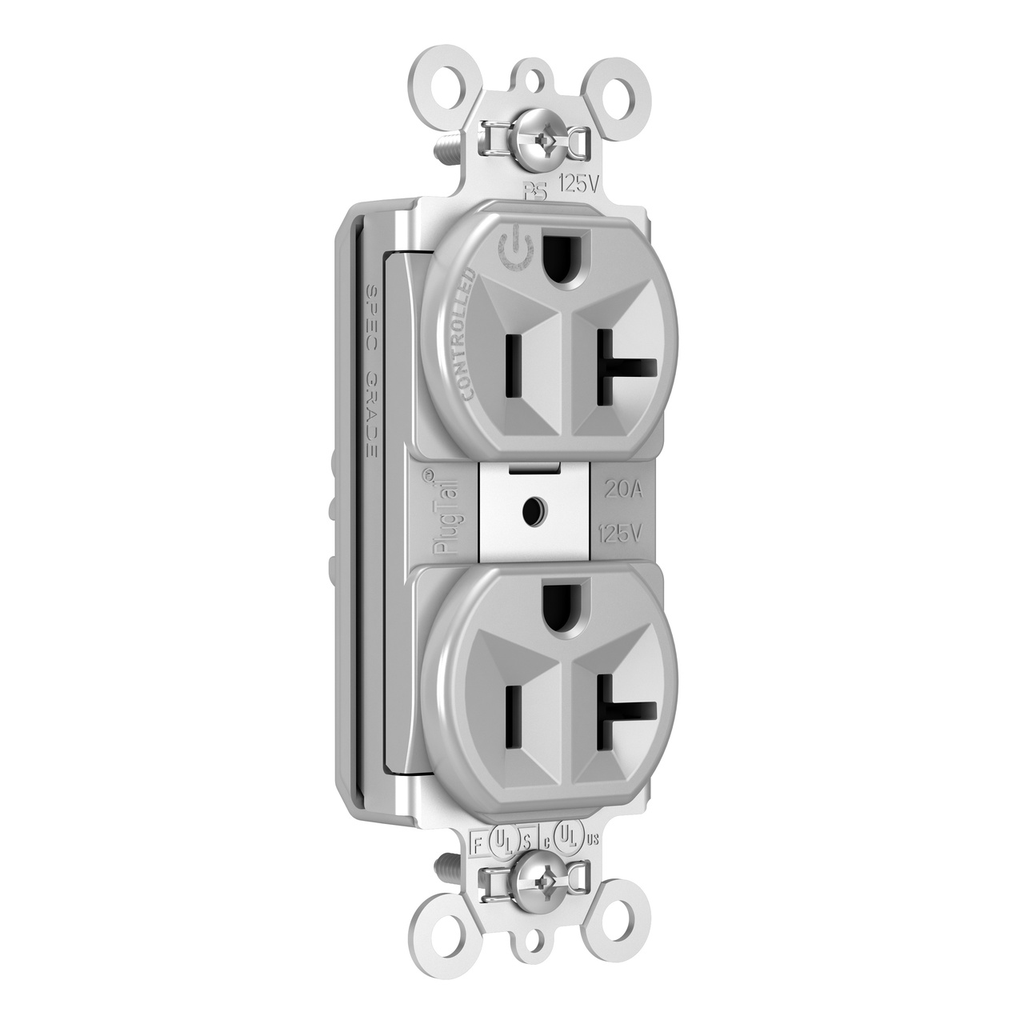

Product image for P&S PT5362SCCHGRY PT PLUG LOAD DUP
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

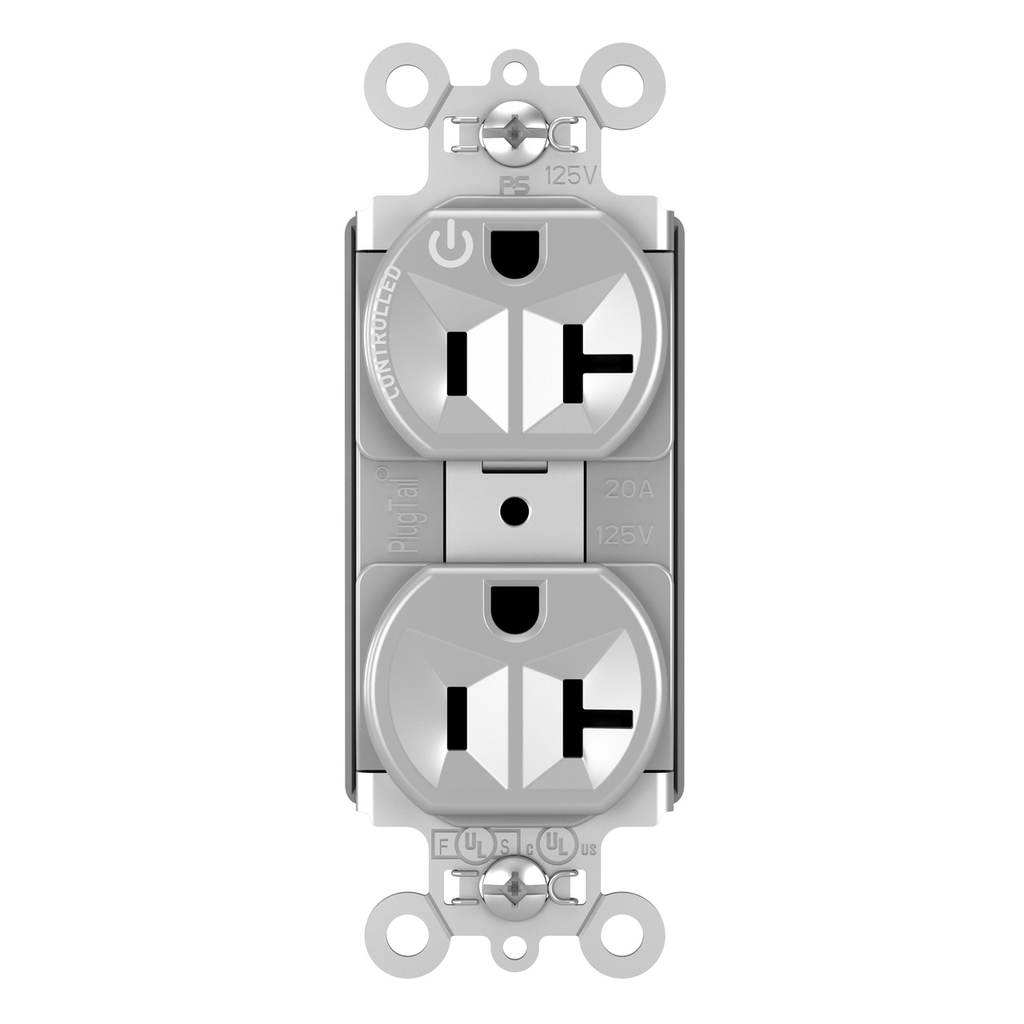

P&S PT5362SCCHGRY PT PLUG LOAD DUP

Manufacturer: Pass & Seymour / Legrand | Catalog # PT5362SCCHGRY | Cooper Electric Part # 1404836
$19.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
PlugTail® Spec Grade Receptacles, 20A, 125V. These durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements.PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Grade
Federal Specification
Indoor Outdoor
Indoor
NEMA
5-20R
Number of Poles
2
Number of Wires
4
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Type
Receptacles
Voltage
125 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007051902
Color
Gray
GTiN
00785007051902
Product Series
PlugTail
Product UPC
78500705190
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Large brass contacts snugly terminate on device blade terminals.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Dual mechanical shutter system to help prevent insertion of foreign objects (TR models).
  • Permanent controlled markings on face of receptacle compliant with ASHRAE 90.1, CA Title 24, and NEC.
  • Half-controlled versions include welded, pre-wired lead that control top half of receptacle for split circuit applications.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
