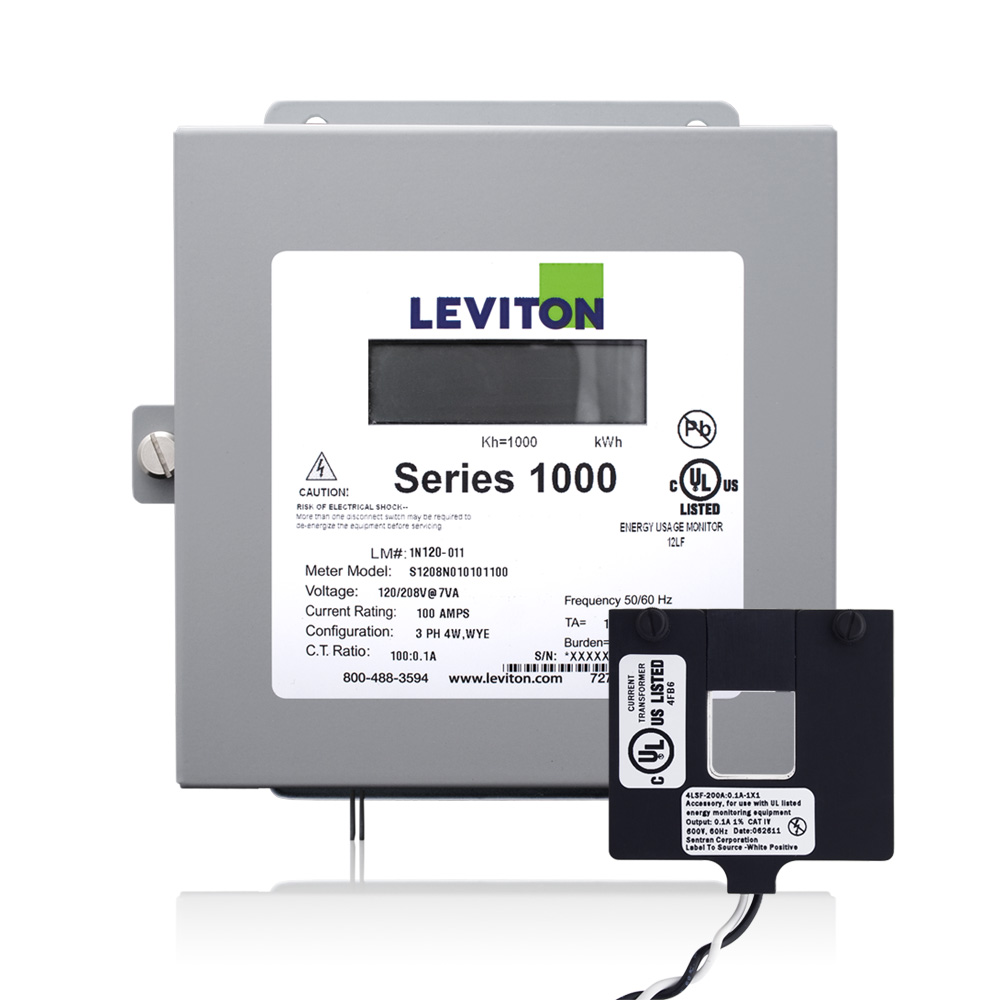

Product image for LEV 1K277-1W GY 1000MTR 277V 100A S
Email

LEV 1K277-1W GY 1000MTR 277V 100A S

Manufacturer: Leviton Mfg Co | Catalog # 1K277-1W | Cooper Electric Part # 1404231
$651.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Series 1000 Submeter, 277V 100A 1P/2W Indoor Kit with 1 Split Core Current Transformer (CT)

Technical Information

Accuracy
1 PCT
Amperage
100 Amp
Applications
Commercial
Cable Size
18-14 AWG
Communication Type
Pulse Output
Enclosure
JIC Steel
Enclosure Rating
1
Enclosure Type
Indoor (NEMA 1)
Mounting Type
Surface
Number of Phases
1 Phase
Primary Current
100 A
Primary Voltage
277 V
Standard
ANSI C12.1,UL And CUL Listed
Type
Single Phase Meter Kit

Manufacturer Information

Brand
Leviton
Sub Brand
METER KITS

General Product Info

12-Digit UPC
078477597897
GTiN
00078477597897
Product UPC
07847759789

Dimensions

Height
3-1/4 Inch
Length
6.19 Inch
Width
6.19 in

Certifications and Compliance

Country of Origin
USA
Features
  • Measures kWh and demand (optional)
  • Conforms to all applicable standards of ANSI C12.1
  • Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface
  • Utilizes revenue-grade 0.5% accuracy class 0.1A secondary solid core Current transformers (CTs) that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and optional peak and instantaneous kW with Demand Reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • CT lead length maximum: 48
  • UL/cUL Listed Energy Usage Monitor per CCN FTRZ
  • Five year warranty
  • The Leviton VerifEye™ Series 1000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 1000 submeters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.
