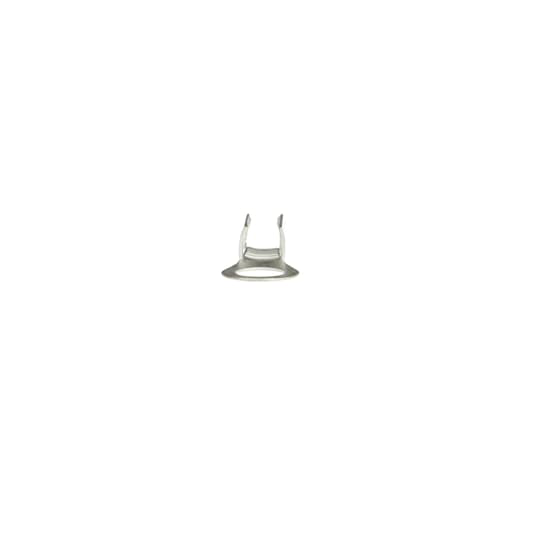

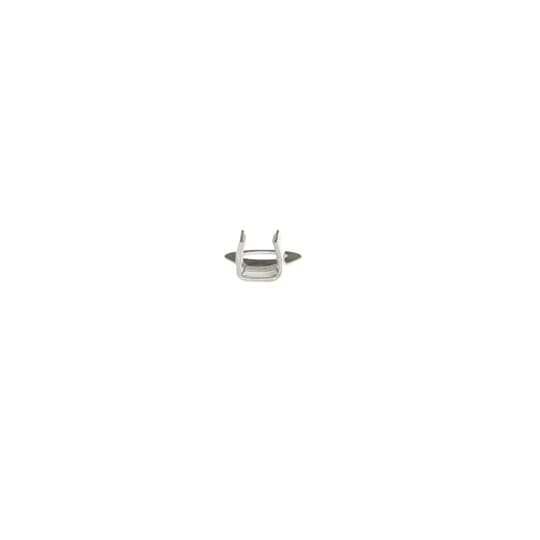

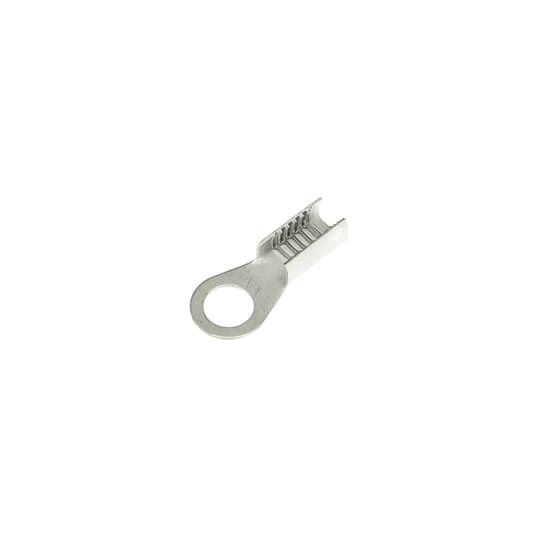

ABB 22R146 RING TERM CU 16-12 AWG 1

Manufacturer: ABB | Thomas & Betts | Catalog # 22R146 | Cooper Electric Part # 1402328
$296.74/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Insulation Piercing Magnet Wire Ring Terminal, Length .95 Inches, Width .42 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 1/4 Inch, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Technical Information

Applications
For Aluminum to Copper, Aluminum to Aluminum or Copper to Copper Magnet Wire Connections
Barrel Diameter
6.4 mm
Barrel Length
11.5 mm
Conductor Size
16-12 AWG
Material
Copper
Stud Size
1/4 in
Type
Ring Terminal
Wire Size
16-12 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Dragon Tooth®

General Product Info

12-Digit UPC
786210890012
Finish
Tin Plated
GTiN
05414363112150
Product UPC
78621089001

Dimensions

Length
24.2 mm
Features
  • Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Application
  • For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Notes
  • Wire sizes and combinations shown have been tested to and meet or exceed Thomas & Betts specifications. Connectors may be suitable for other wire sizes or combinations. Thomas & Betts sells these connectors with the understanding that the user will perform necessary tests to determine their suitability for the intended purpose.
