SQD K63F003UP 63A 6 POLE CHANGEOVER

Manufacturer: Square-D / Schneider | Catalog # K63F003UP | Cooper Electric Part # 1401541
$624.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

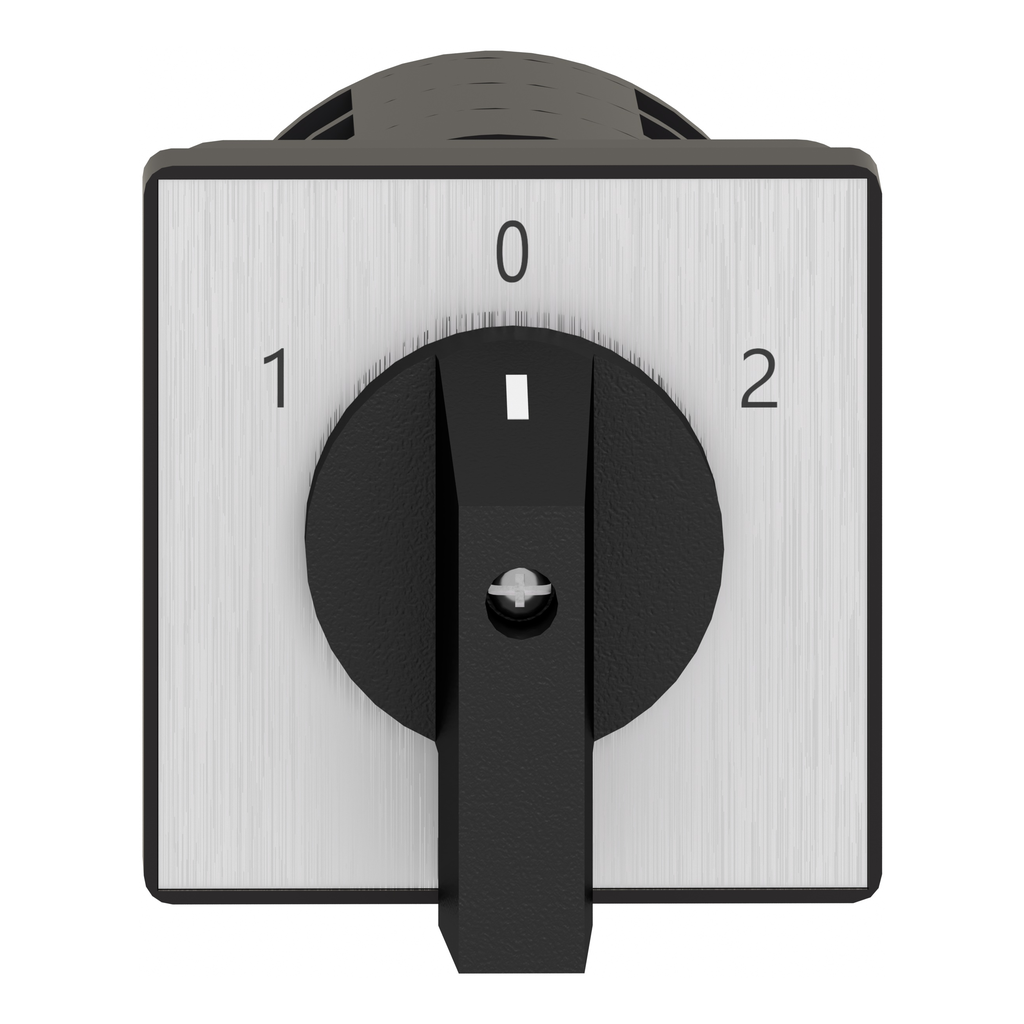

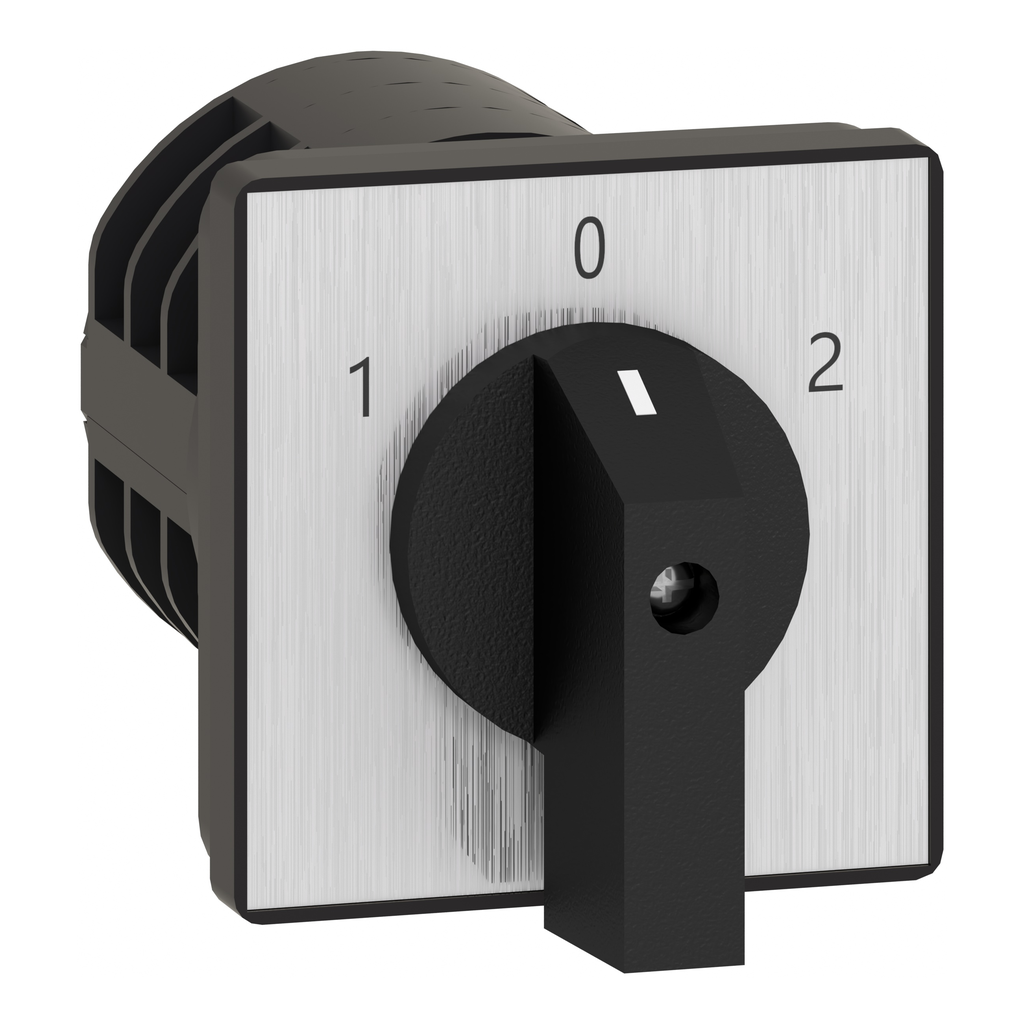

This Harmony K63 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 63A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.

Technical Information

Amperage
63 Amp
Net Weight
0.59 kg
Operating Temperature
-25-55 degrees C
Short Circuit Current
10000 A
Standard
IEC 60947-3
Storage Temperature
-40-70 degrees C
Type
COMPLETE CAM SWITCH,WITH FRONT PLATE 64 X 64 MM

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901636182
GTiN
03389110083378
Product UPC
78590163618
Weight
1.30 lb

Dimensions

Height
64 mm
Warranty Length
18 mth
Width
64 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CULus 120 V 3 Hp 1 Phase,CULus 240 V 10 Hp 3 Phases,CULus 240 V 7.5 Hp 1 Phase,CULus 480 V 25 Hp 3 Phases
Country of Origin
Austria
