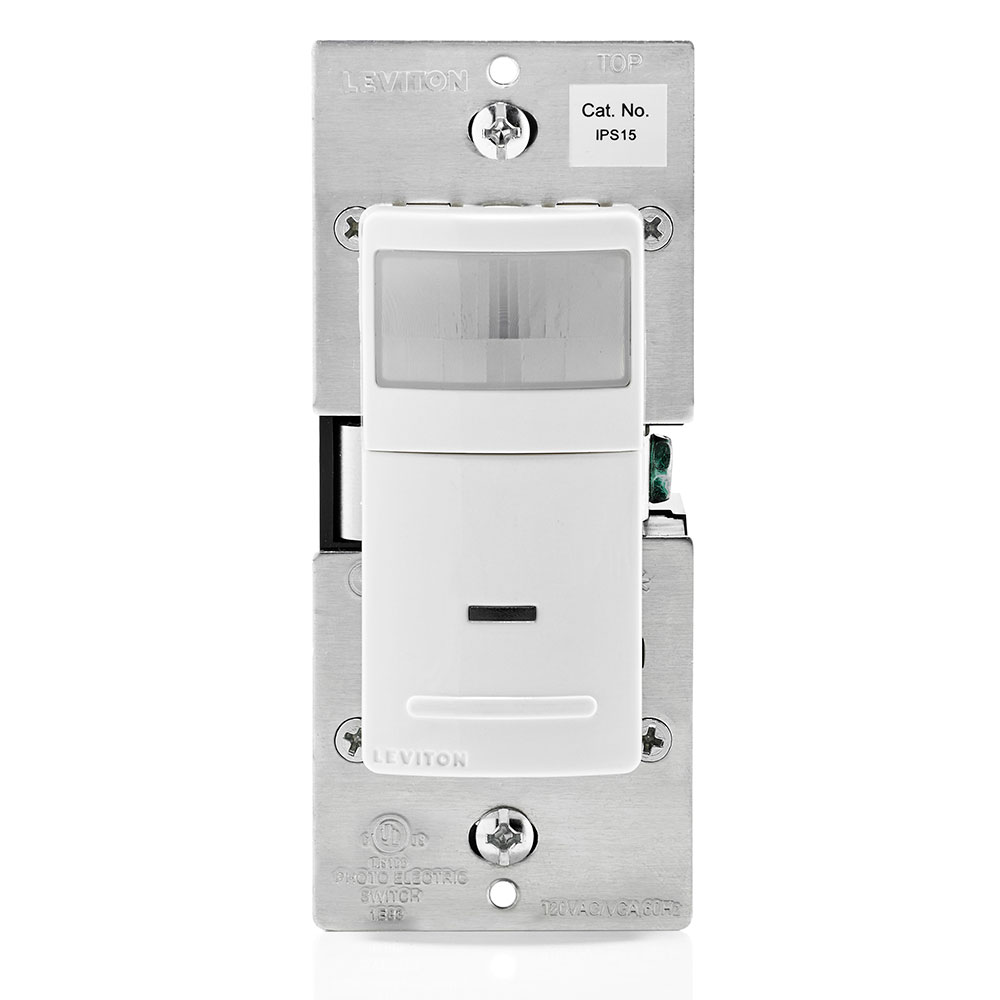

Product image for LEV IPS15-1LZ WH/IV/LA OCC DETECT 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV IPS15-1LZ WH/IV/LA OCC DETECT 1

Manufacturer: Leviton Mfg Co | Catalog # IPS15-1LZ | Cooper Electric Part # 1400551
$84.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Decora Motion Sensor, 180 Degree PIR In-Wall Switch, 15 Amp, Single Pole & 3-Way Installation - White, with Ivory and Light Almond color change kits included.

Technical Information

Applications
For Commercial Use, LED, CFL, Incandescent, Fluorescent Ballast or Motor Loads
Coverage
900 sq-ft
Frequency
60 Hz
Grade
Residential
LED Color
Green
Material
Plastic
Mounting Type
Surface/Wall
Number of Poles
1 Pole
Response Time
30 min
Sensor Type
Passive Infrared
Size
4.13 H x 1.75 W x 1.22 D IN
Standard
CA Title 20 Code Compliance,UL Listed
Switch Type
3-Way,Single-Pole
Temperature Rating
0 degrees C to 40 degrees C
Torque
14 lb-in
Type
Wall Switch, 3 Way
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477570456
Color
White
Environmental Conditions
Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
GTiN
00078477570456
Product UPC
07847757045

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Universal Light Control - Switches Incandescent, CFL, LED and Fluorescent Ballasts using relay technology
  • Automatic-ON/Automatic OFF operation for seamless energy management
  • Low-Profile design eliminates an obtrusive \"scanning device\" look. Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora® wiring devices
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Segmented lens provides optimum sensitivity and performance. It is designed with an extensive \"minor motion\" area where even slight body movements will be detected
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Unit can be used for 120V lighting. Compatibile with both electronic and magnetic ballasts or 1/2 HP loads
  • Relay switches at zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Fits in standard wallbox; Single Pole or Multi Location with IPV0R
  • Neutral wire required
  • Can be used to comply with 2016 California Title 24, Part 6 Vacancy Control Device Requirements
