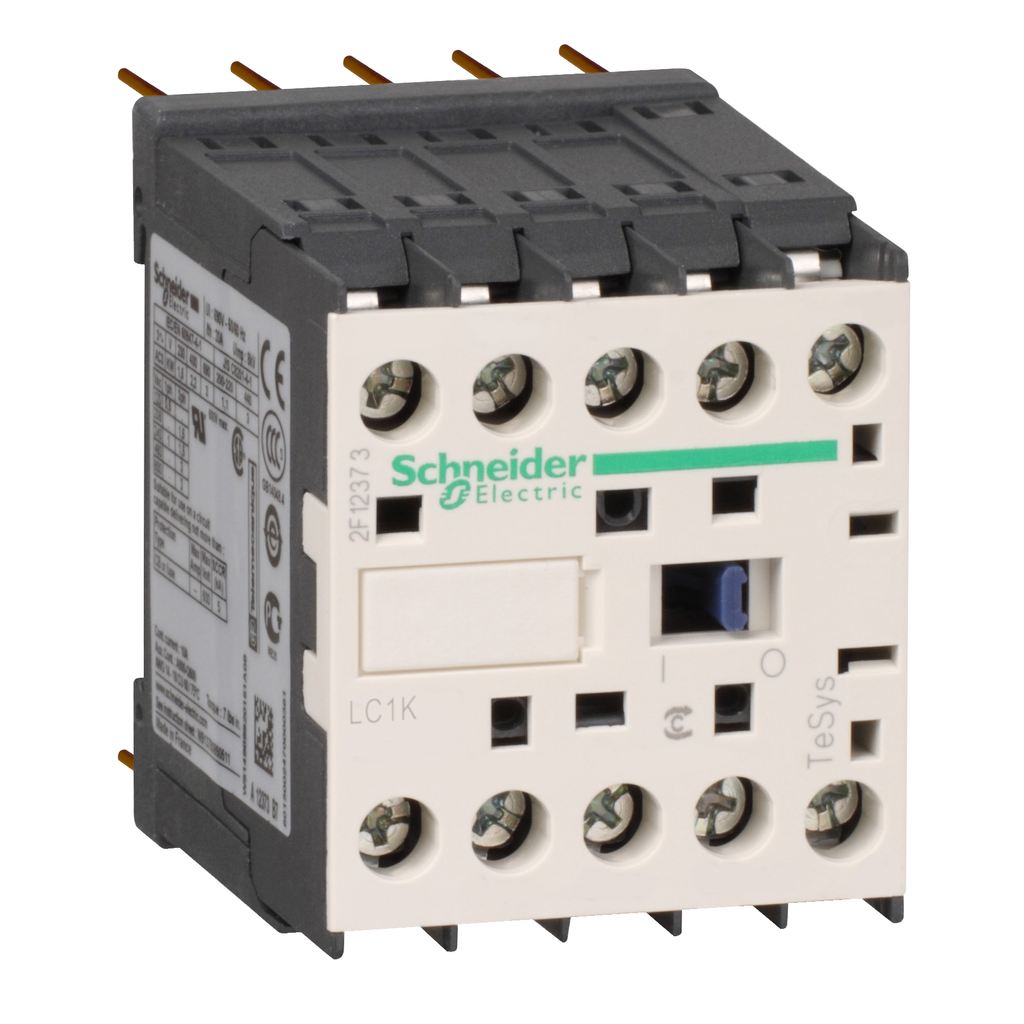

SQUARED LC1K0610K7 CONTACTOR 575VAC

Manufacturer: Square-D / Schneider | Catalog # LC1K0610K7 | Cooper Electric Part # 1400493
$77.59/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1
Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NO aux., 100VAC coil

Technical Information

Applications
CONTROL,MOTOR CONTROL
Coil Voltage
100 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Contact Configuration
1 NO
Contact Rating
20 A 50 AC POWER CIRCUIT-10 A 50 AC SIGNALLING CIRCUIT
Impedance
3 mOhm - Ith 20 A 50 Hz Power Circuit
IP Rating
IP2x
Operating Cycles
3600 cyc/h
Operating Temperature
-25-50 Adegrees C
Rated Insulation Voltage
600 V
Size
45 MM,57 MM,58 MM
Standard
BS 5424,IEC 60947,NF C 63-110,VDE 0660
TC Connection
SCREW CLAMP TERMINALS 1 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMAFLEXIBLE WITH CABLE END
Type
CONTACTOR
Voltage
690 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
TeSys
Sub Brand
TESYS K

General Product Info

12-Digit UPC
891106031636
GTiN
03389110603163
Product UPC
38911060316
Weight
0.4 lb

Dimensions

Depth
2.24 Inch
Height
2.28 Inch
Width
1.77 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Antimony oxide & Antimony trioxide which is known to the State of California to cause Carcinogen harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,CSA,UL,UL
Country of Origin
France
