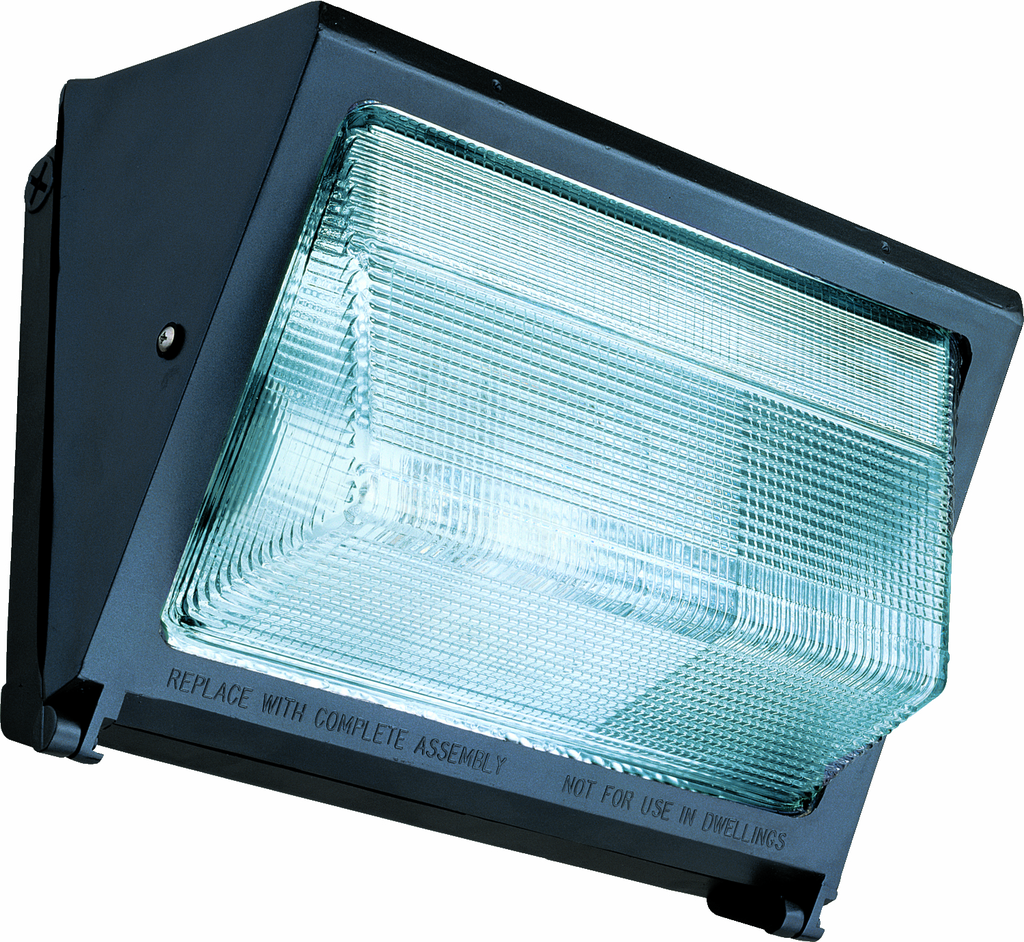

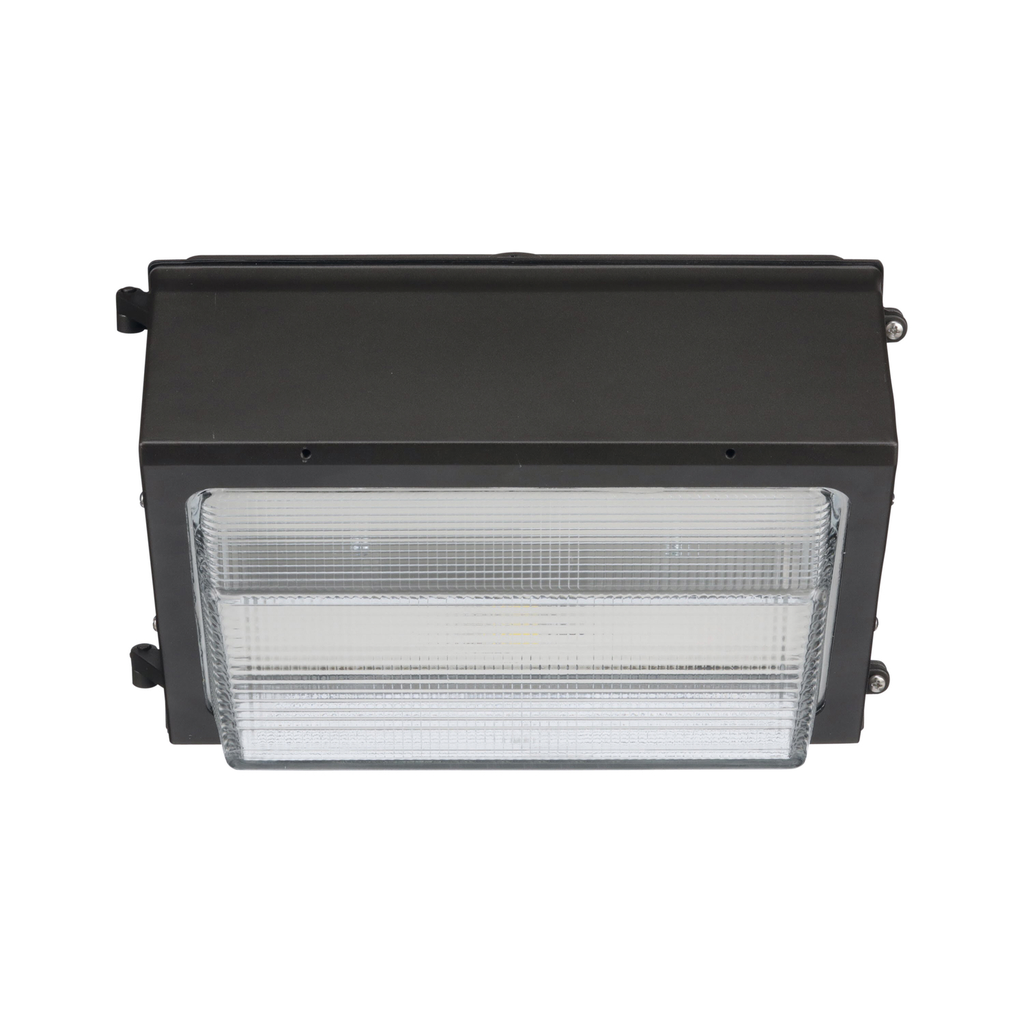

Product image for Lithonia TWR1-LED-ALO-40K-MVOLT-DDBTXD LED Wallpack, (1) Lamp, 51W, 120-277V, Dark Bronze Housing
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Lithonia TWR1-LED-ALO-40K-MVOLT-DDBTXD LED Wallpack, (1) Lamp, 51W, 120-277V, Dark Bronze Housing

Manufacturer: Lithonia Lighting | Catalog # TWR1 LED ALO 40K MVOLT DDBTXD | Cooper Electric Part # 1399575
$342.44/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Small glass refractor wall pack, LED, Adjustable light output, 4000K, 120-277V, Textured dark bronze, super durable

Technical Information

Applications
Education, Hospitality, Offices & Banks
Color Temperature
4000 K
Correlated Color Temp
4000 K
Enclosure
Aluminum
Lamp Type
LED
Lens Material
Glass
Lumens
6,000 Lumen
Material
Aluminum
Mounting Type
Surface
Number of Lamps
1
Size
7.5x12.94x9
Standard
CUL,UL
Style
Traditional
Type
Wallpack
Voltage
120-277 Volts Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193047637084
Color
Bronze
Environment
Outdoor
Finish
Textured
GTiN
00193047637084
Product UPC
19304763708
Shape
Rectangle

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Taiwan,Taiwan
Features
  • The TWR1 LED luminaire is powerful yet energy efficient, capable of replacing up to a 250W metal halide luminaire while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. The Adjustable Light Output (ALO) feature allows the installer to set the light output during installation, to a level perfectly suited for the job site. The TWR1 LED ALO luminaires can replace anything from 70W to 250W metal halide luminaires.
  • The Adjustable Light Output (ALO) feature of the TWR1 LED allows the contractor to set the light output during installation, to a level best suited for the job site.
  • Delivering between 1,100 and 6,200 lumens the TWR1 LED replaces up to 250W metal halide luminaire offering up to 86% energy savings
  • Adjustable Light Output (ALO)
  • UL Listed to U.S. and Canadian safety standards for wet locations and tested in accordance with IESNA LM-79 and LM-80 standards and DesignLights Consortium (DLC) qualified product
  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and was designed to install at atleast 4 feet above the ground and easily mounts to a standard 4-inch outlet box or surface wiring
  • LEDs maintain up to 90% of light output at 100,000 hours of service life or L90/100,000 hours
  • Rugged cast-aluminum housing with bronze polyester powder paint for lasting durability and castings are sealed with a one-piece gasket to inhibit the entrance of external contaminants
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 12-15/16 in x 9 in x 7-1/5 in
  • The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation
  • The TWR1 LED luminaire is powerful yet energy efficient, capable of replacing up to a 250W metal halide luminaire while saving up to 86% in energy costs
  • Offering an expected service life of more than 20 years
  • Wall mount, wall pack, replacement, classic dayform, carports, loading, docks, driveways, parking, building, prismatic glass lens, uniformity
Applications
  • Education
  • Hospitality
  • Offices & Banks
