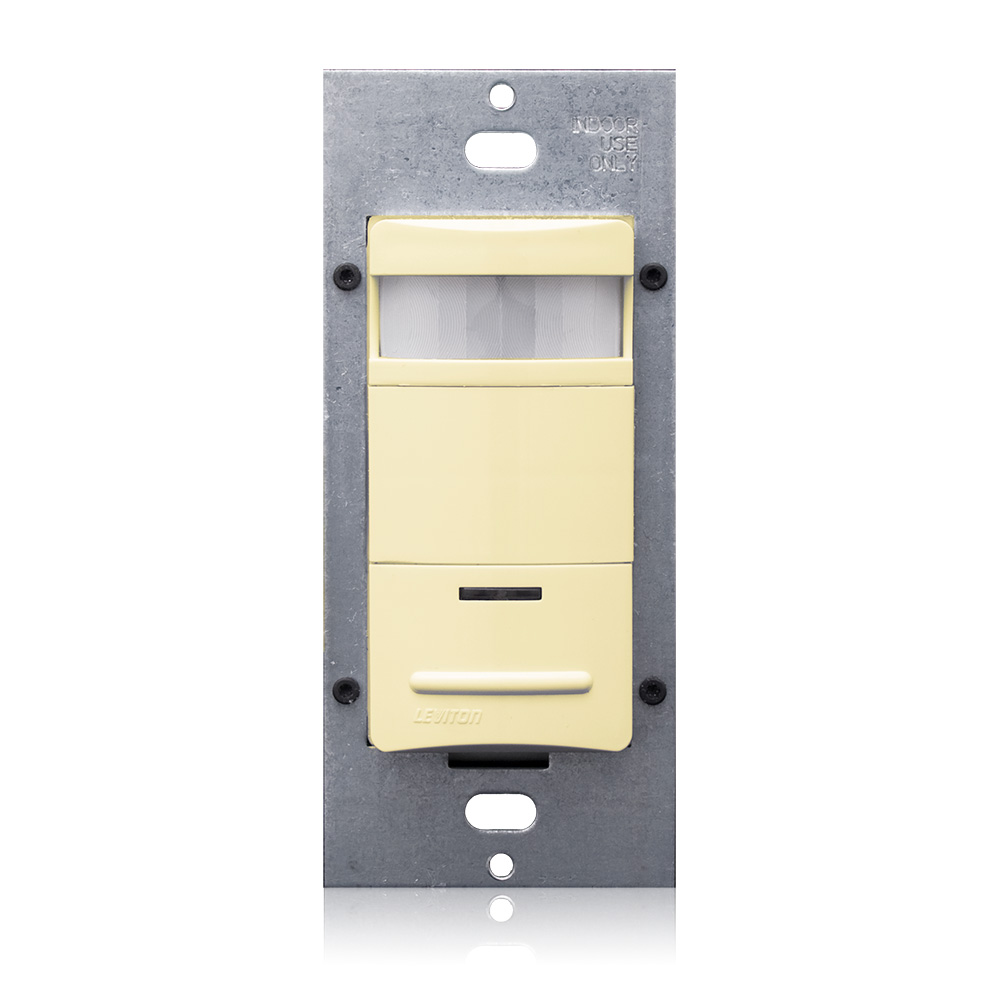

Product image for LEV MDS10-IDI IV LEVLK PIR OC SENS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

LEV MDS10-IDI IV LEVLK PIR OC SENS

Manufacturer: Leviton Mfg Co | Catalog # MDS10-IDI | Cooper Electric Part # 1398935
$111.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
LevLok, Passive Infrared wallbox occupancy sensor lighting control, Single Relay, photocell controlled, Low profile, 180 degree field of view, 2100 sq ft, Adjustable Blinders, Time Delay 30s-30m. 120/208/220/230/240/277VAC, 50/60Hz, AutoON/ManualON selectable, CEC Title 20/24 Compliant, UL Listed, RoHS Compliant, Color: Ivory

Technical Information

Applications
Commercial
Coverage
2100 sq-ft
Frequency
50 Hz
Grade
Commercial
Mounting Type
Wall Switch
Operating Temperature
0 degrees
Power Consumption
100 m 277m W
Sensor Type
Wall Switch
Size
67.82 mm
Standard
UL\cUL Or ETL\cETL Listed To UL\CSA Standards (E31373 For Dimmers, E123566 For Fans), ANSI\IEEE C62.41.2, ESD Protection To IEC61000, FCC Part 15 Class B
Switch Type
Single-Pole,Single-Pole
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477544587
Color
Ivory
Environmental Conditions
0 to 50 C
GTiN
00078477544587
Product UPC
07847754458

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Fits in standard wallbox and replaces single-pole wall switch. Gangable with other units
  • Low-profile design eliminates obtrusive scanning-device look. Elegant Decora wallplates compliment any interior for sleek aesthetics; uses Decora wallplates and coordinates with Levitons popular line of Decora wiring devices
  • 180° field-of-view provides approximately 2100 square feet of coverage suitable for small offices, conference rooms, classrooms, lounges and a variety of commercial areas
  • Convenient pushbutton provides manual-ON/OFF light switching at any time
  • Two dual element PIR sensors used to widen detection range
  • Segmented Fresnel lens provides optimum sensitivity and performance. Designed with an extensive minor motion area where even slight body movements will be detected
  • Vandal resistant PIR lens

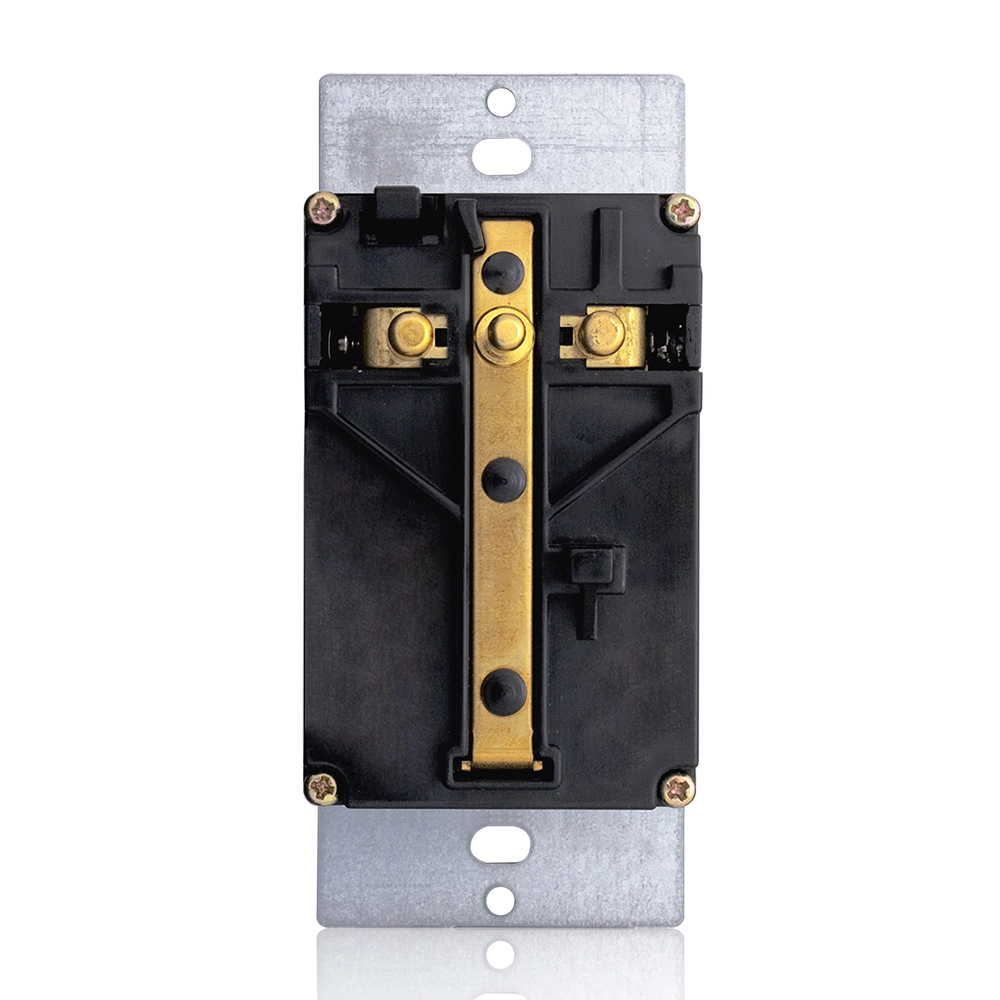

  • Lev-Lok makes installation and replacement simple with latch-and-lock system which streamlines installation and reduces costs
  • The Lev-Lok wiring module is keyed so that it cannot be installed incorrectly, saving time during installation and making maintenance quicker, safer and easier
  • Horizontal field-of-view may be adjusted between 180° and 60° of arc by using integral blinders located on either side of the lens. No masking tape required
  • Manual-ON/auto-OFF mode for installations where manual-ON switching is required but auto-OFF switching is still desired for CEC Title 24 energy savings
  • Red LED indicator light flashes when sensor detects motion to verify detection is active
  • Time Delay adjustment for delayed-OFF time settings of 30 seconds (for walking test), 10 minutes, 20 minutes, and 30 minutes. Allows customized adjustments to maximize energy savings
  • Light Sensor Adjustable Ambient Light Override ranges from approximately 2 foot-candles (20 lux) to 500+ foot-candles (5000+ lux) to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings
  • Light sensor enables the load hold-OFF feature once level has been set
  • Vacancy confirmation - when the time out expires and the lights turn OFF a 30 second vacancy confirmation exists to turn the lights back ON
  • False detection circuitry
  • Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
  • One unit can be used for 120V through 277V lighting. Compatible with both electronic and magnetic ballasts
  • Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.
  • Exclusive Leviton H.I.S. Circuitry. Specifically designed to handle todays high inrush electronic ballast loads and offer unmatched durability and service.
  • No neutral design is optional for retrofit applications.
  • Lev-Loks innovative design streamlines installation and reduces costs. In just two easy steps, the wiring device is securely attached to the wiring module. Place the wiring module over the devices connection pins and twist clockwise to lock. Replacement is just as easy just turn counter-clockwise to unlock and remove. The module is keyed so that it cannot be installed incorrectly. This not only saves time during the initial installation, but makes maintenance applications quicker, safer and easier as well. Do you have a question about an occupancy sensor or vacancy sensor?
