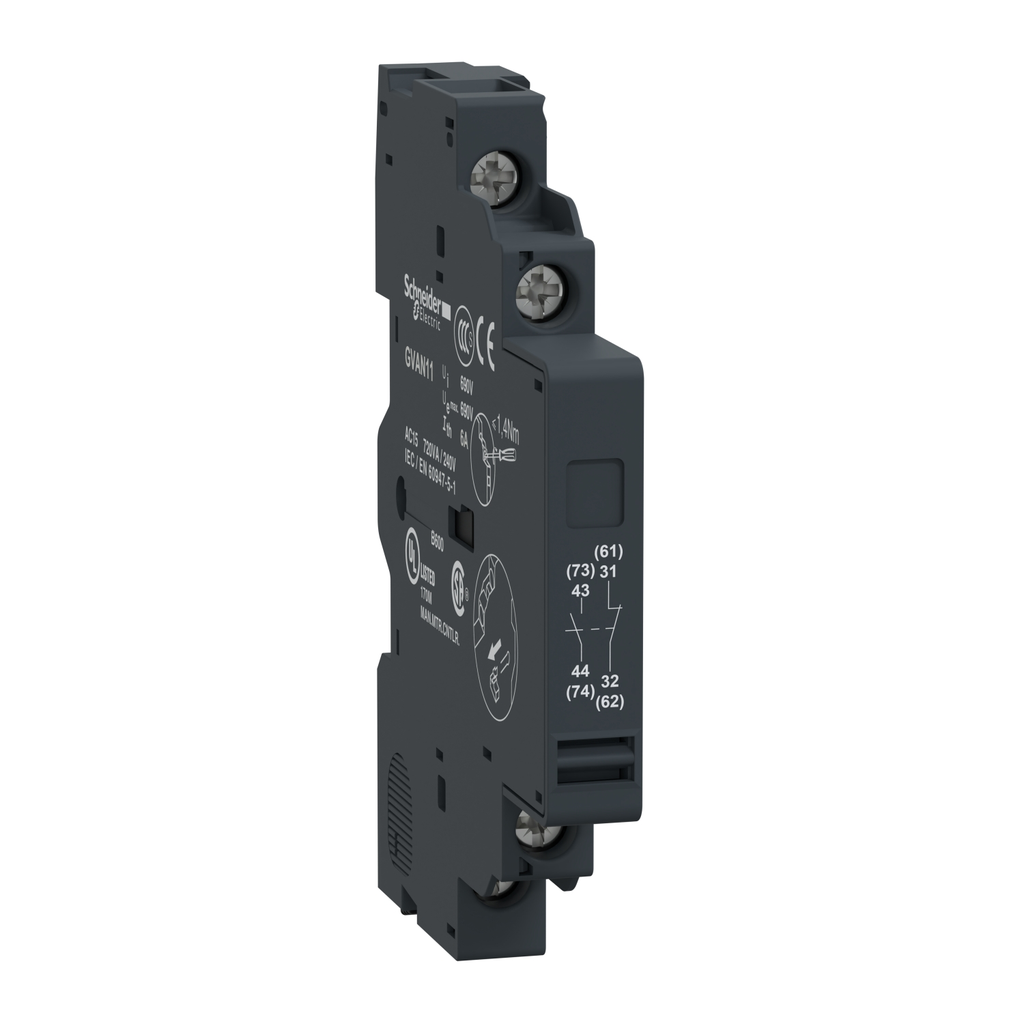

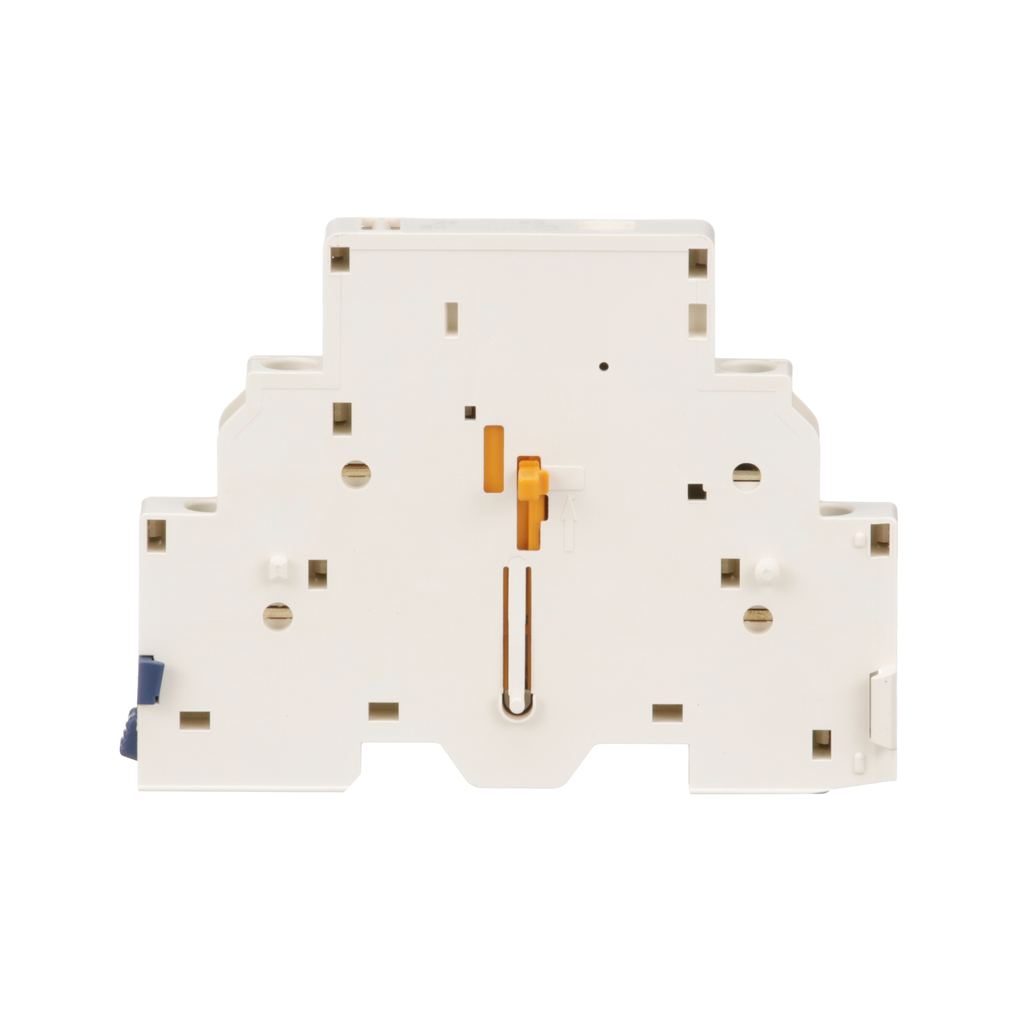

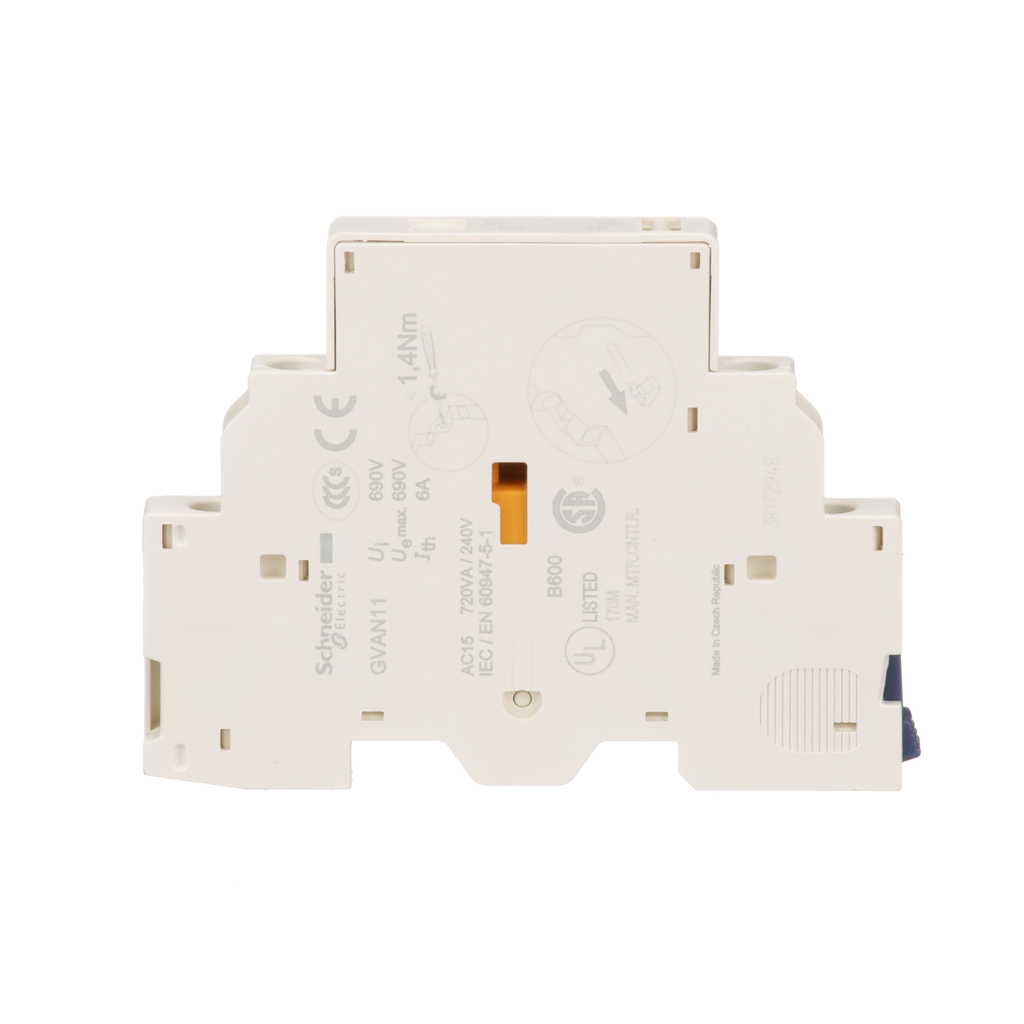

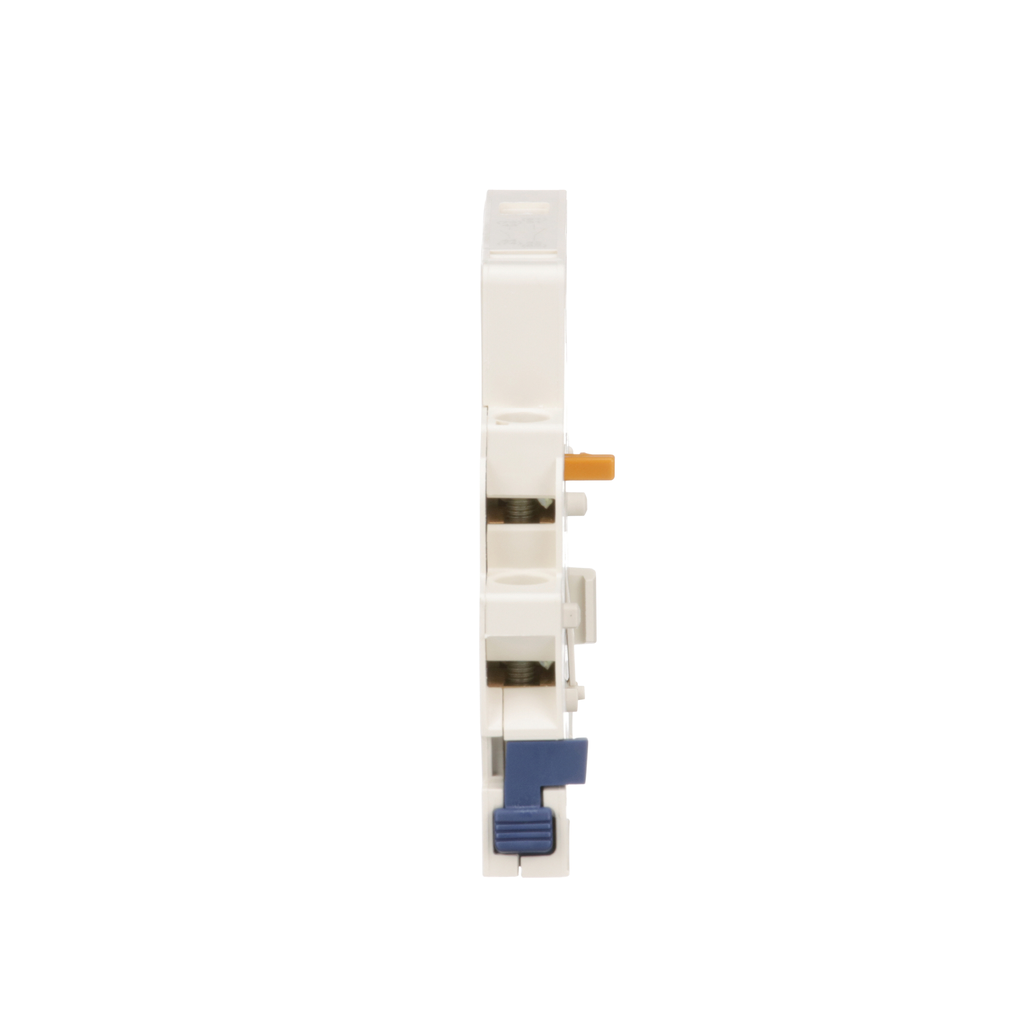

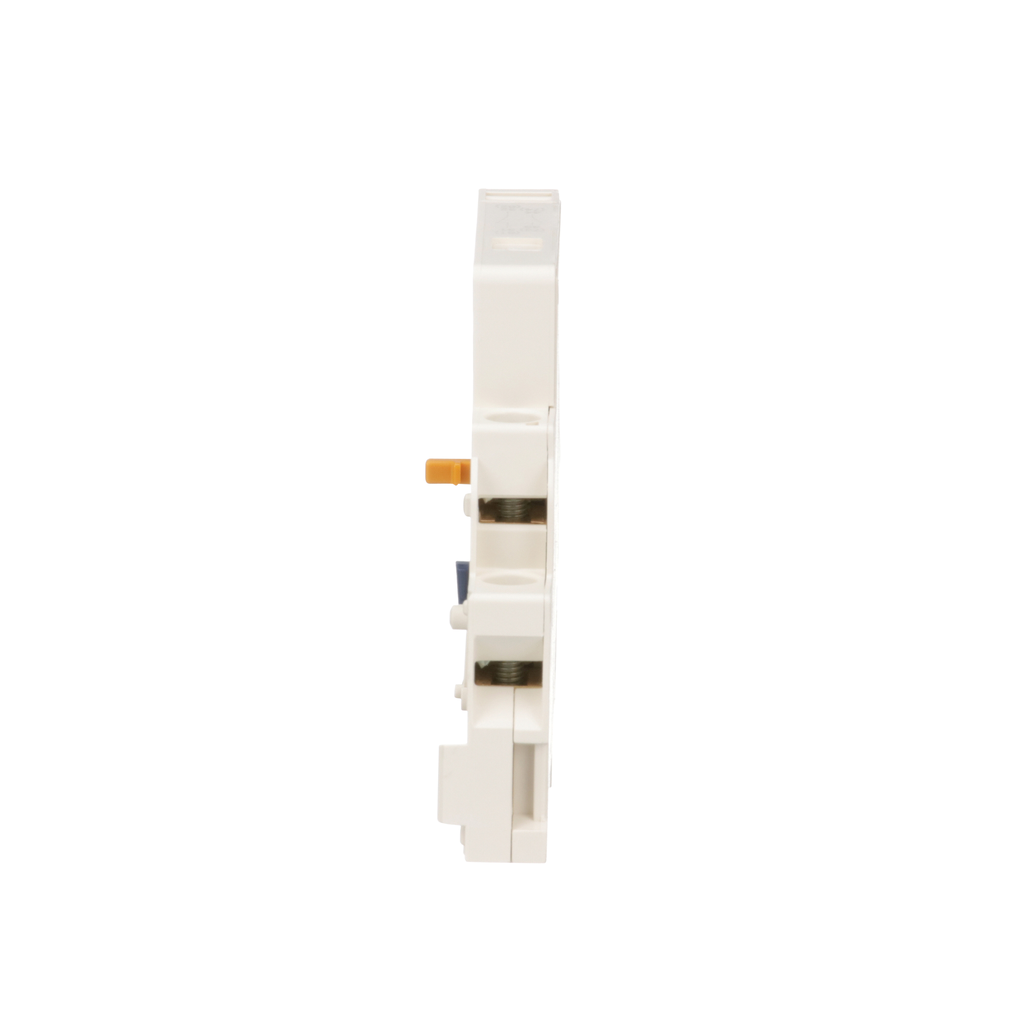

Square D GVAN11 1NO 1NC 690 VAC 240 VDC 6 Amp Manual Starter Auxiliary Contact

Manufacturer: Square-D / Schneider | Catalog # GVAN11 | Cooper Electric Part # 139660
$35.35/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
9 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
6 Amp
Applications
GV2ME-GV2RT-GV2L-GV3P-GV3L-GV2LE-GV2P
Contact Configuration
1 NO + 1 NC
Net Weight
0.05 kg
Operating Cycles
100000 CYCLES
Power Supply
24...240 V DC, 48...690 V AC
Range
TeSys
Size
66 MM,89 MM,9.3 MM
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 2 1-2.5 MMASOLID- SCREW CLAMP TERMINALS 1 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.75-2.5 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.75-1.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.75-1.5 MMAFLEXIBLE WITH CABLE END
Type
AUXILIARY CONTACT BLOCK
Voltage
240 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GVAN,TESYS

General Product Info

12-Digit UPC
389110343482
Color
Gray
Environmental Conditions
NORMAL ENVIRONMENT
GTiN
03389110343489
Product UPC
78590121243
Weight
0.05 kg

Dimensions

Depth
66 mm
Height
89 mm
Warranty Length
18 mth
Width
9.3 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
UKCA
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GV2ME08
  • GV2ME10
  • GV2ME14
  • GV2ME07
  • GV2ME06
  • GV2ME16
  • GV2ME20
  • GV2ME05
  • GV2ME22
  • GV2ME21
  • GV2ME32
  • GV3P40
  • GV2ME04
  • GV2P08
  • GV2P10
  • GV3P50
  • GV2P14
  • GV3P65
  • GV2P07
  • GV2P16
  • GV2P06
  • GV2ME03
  • GV2P20
  • GV2P32
  • GV2P05
  • GV2P22
  • GV3P80
  • GV2ME02
  • GV2L14
  • GV2P21
  • GV2P04
  • GV3P32
  • GV2L08
  • GV2LE14
  • GV2LE10
  • GV2L16
  • GV2L10
  • GV2L22
  • GV3P73
  • GV2RT10
  • GV3P25
  • GV2L20
  • GV2RT07
  • GV2RT08
  • GV2ME01
  • GV2LE16
  • GV2LE22
  • GV2LE08
  • GV2LE20
  • GV2L07
  • GV3L40
  • GV2RT06
  • GV2L32
  • GV3L50
  • GV2RT14
  • GV3L65
  • GV2P03
  • GV2LE07
  • GV2RT16
  • GV3P18
  • GV2RT20
  • GV3P13
  • GV2RT05
  • GV2P02
  • GV2LE32
  • GV2RT03
  • GV2P01
  • GV2L06
  • GV3L32
  • GV2L05
  • GV2RT04
  • GV2LE06
  • GV2RT21
  • GV2LE05
  • GV2L03
  • GV2L04
  • GV3L25
  • GV3L73
  • GV2LE04
  • GV2LE03
