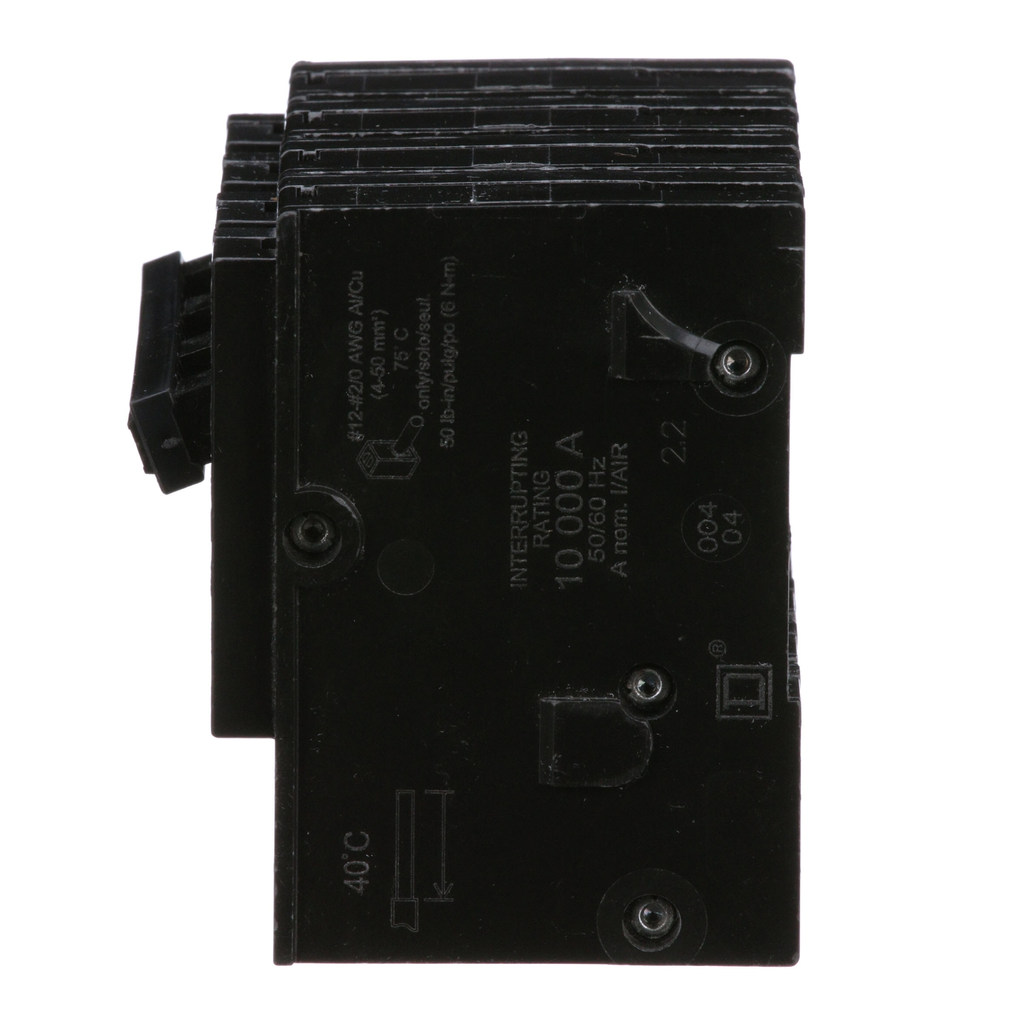

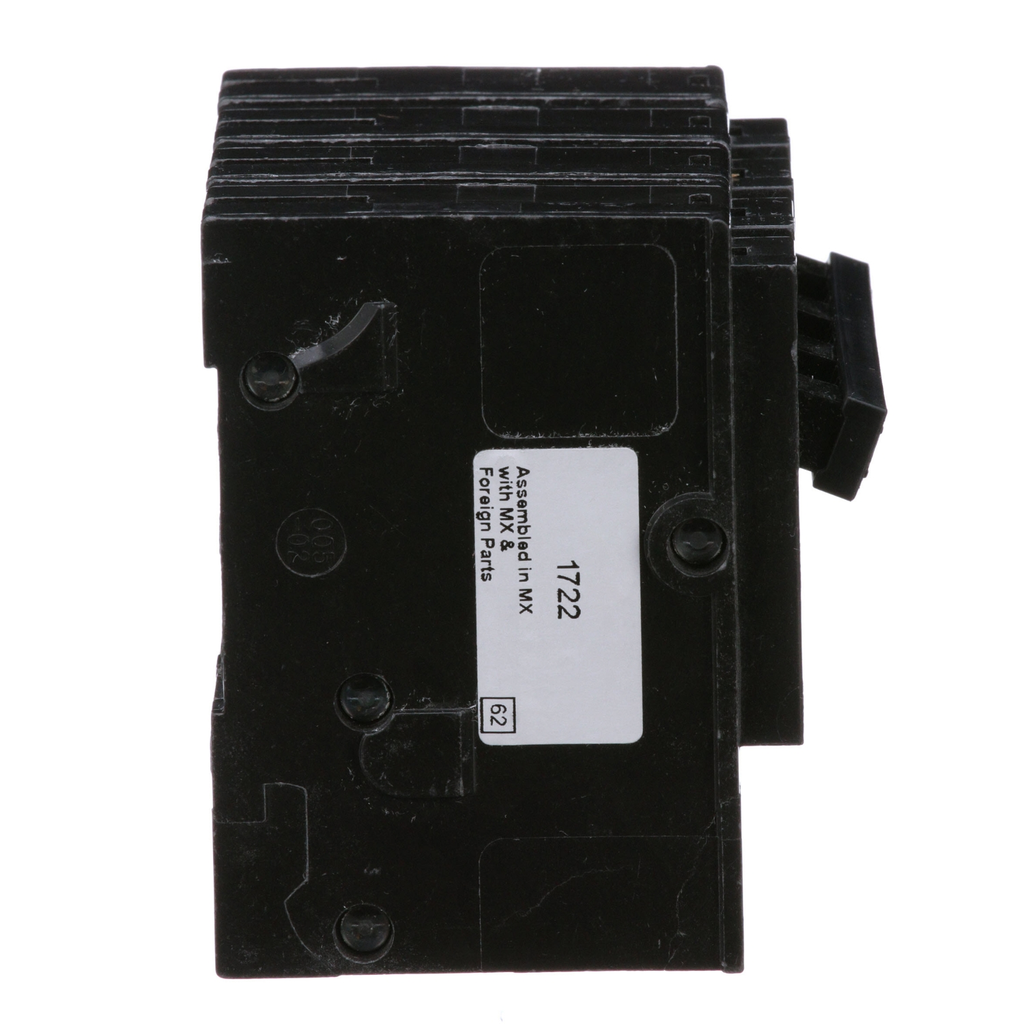

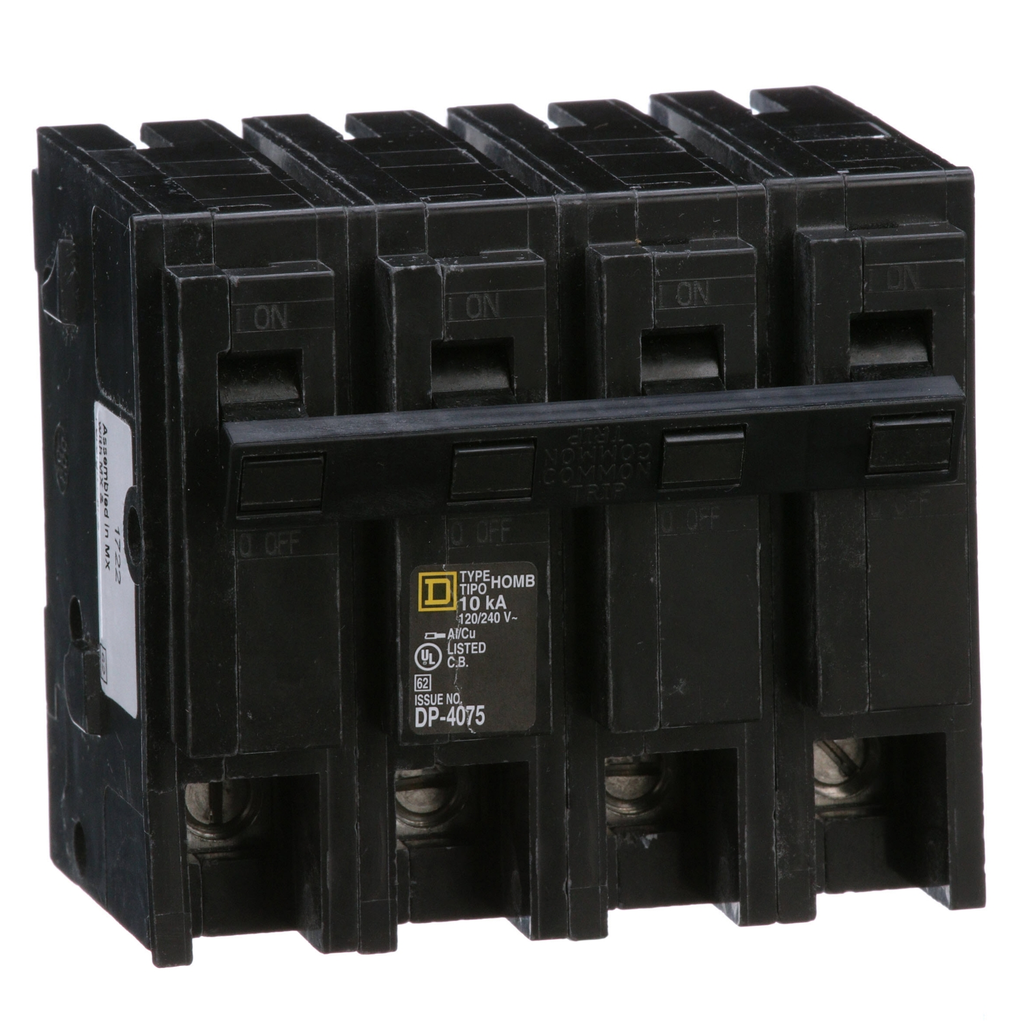

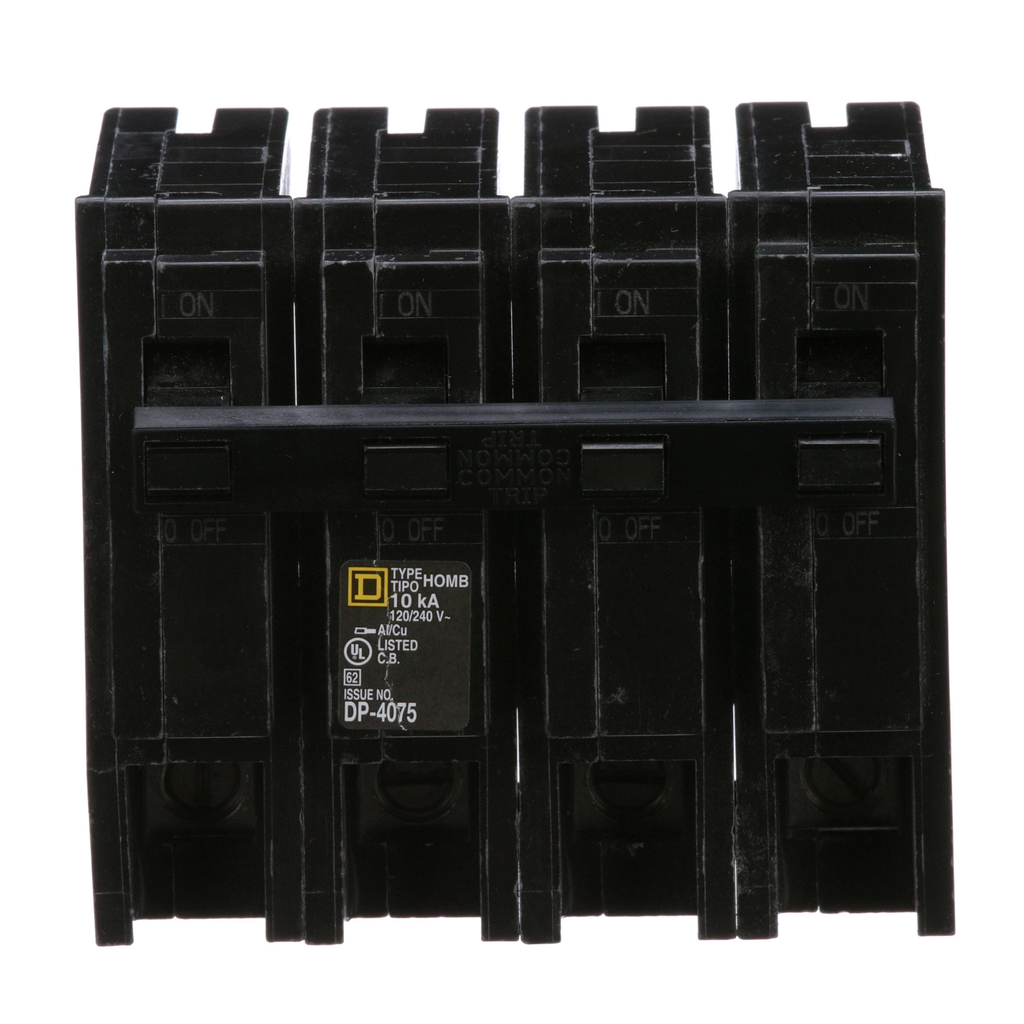

Square D HOM2150 120/240 Volt 150 Amp Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM2150 | Cooper Electric Part # 139653
$404.00/ea
ea
Log in or register to view your price, purchase history, and more!
1 2 4
Plug-In Neutral Pigtail Neutral
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
3 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 150 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Technical Information

Amperage
150 Amp
Applications
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
Circuit Breaker Type
Standard
Conductor Size
4 AWG-300 kcmil
Current
150 Amp
Interrupt Rating
10 kAIC
Line Rated Current
150 A
Mounting Type
Plug-in
Number of Poles
4 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
SCREW #4-300 AWG/KCMIL(AL/CU)
Type
MINIATURE CIRCUIT BREAKER
Voltage
120/240 Volt
Wire Size
AWG 4...300 kcmil aluminium/copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901065838
GTiN
00785901065838
Product UPC
78590106583

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
Lifetime
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • HOM1224L125PC
  • HOM1HT
  • HOM1224L125PGC
  • HOM2HBD
  • HOMTHT
  • HOM1224L125PRB
  • QO1LO
  • HOM2040L125PC
  • QOM2PA
  • HOM1PA
  • HOM2040L125PGC
  • HOML2225
  • HOM2040M100PC
  • HOM2PALA
  • HOM2448L125PGC
  • HOM2448L125PQGC
  • HOM24L70RB
  • HOM3060L225PGC
  • HOM3060M200PC
  • HOM4080L225PC
  • HOM4080L225PGC
  • HOM4080M200PCVP
  • HOM4284L225PC
  • HOM612L100RB
  • HOM816L125PRB
  • HOM816M200PFTRB
