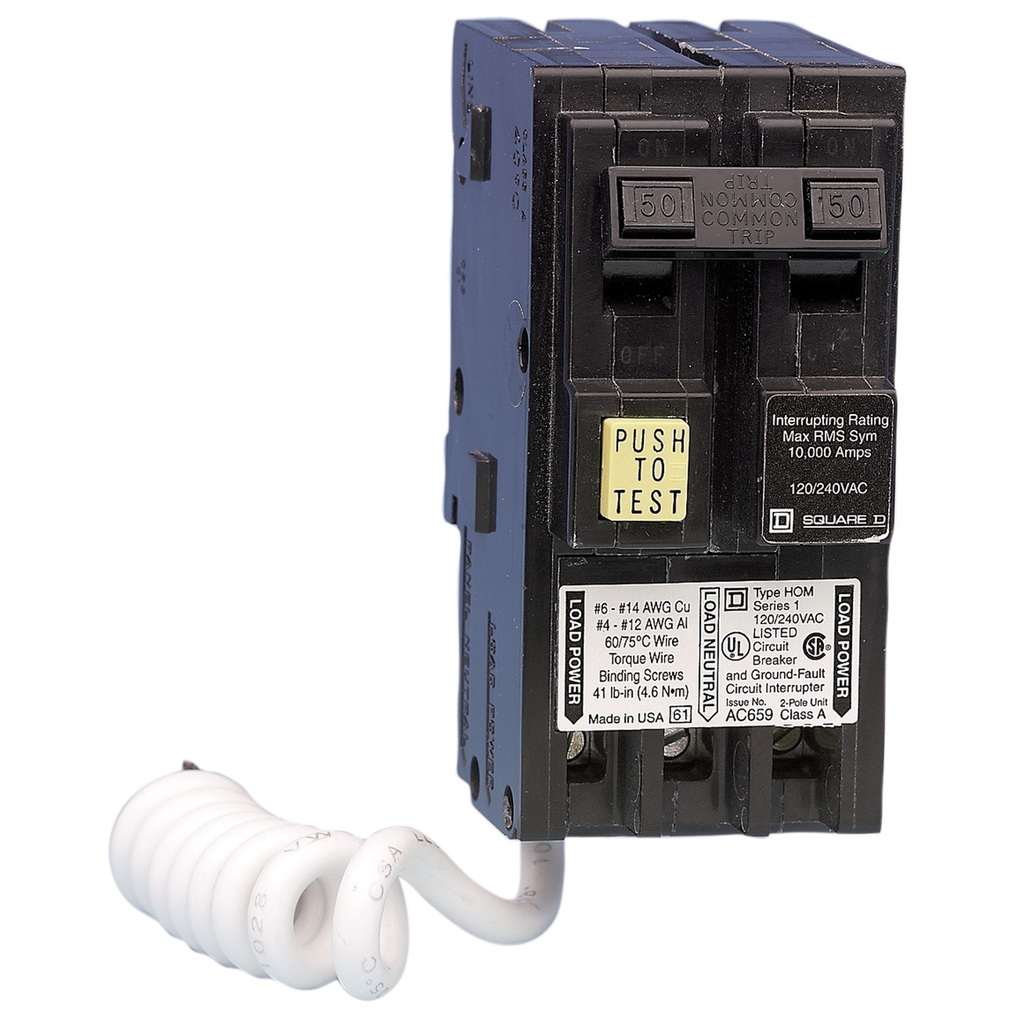

Square D HOM250GFICP 2-Pole 50 Amp 120/240 Volt Ground Fault Miniature Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # HOM250GFICP | Cooper Electric Part # 1395102
$253.73/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.

Technical Information

Amperage
50 Amp
Applications
HACR RATED
Circuit Breaker Type
Ground Fault Protecting Class A 6 MA
Conductor Size
12-4 AWG (AL)/14-6 AWG (CU)
Current
50 Amp
Interrupt Rating
10 kAIC
Line Rated Current
50 A
Mounting Type
Plug-In
Number of Poles
2 Pole
Number of Spaces
2
Operating Temperature
40 Adegrees C
Range
Homeline
Short Circuit Current
10 kA
Short Circuit Current Ratng
10 kA
TC Connection
AWG 12...AWG 4 ALUMINIUM)1 -AWG 14...AWG 6 COPPER)1,SCREW CLAMP TERMINALS
Type
MINIATURE CIRCUIT-BREAKER
Voltage
120/240 Volt
Wire Size
AWG 12...AWG 4 aluminium)1;AWG 14...AWG 6 copper)1

Manufacturer Information

Brand
Square D
Sub Brand
HOMELINE

General Product Info

12-Digit UPC
785901875895
GTiN
00785901875895
Product UPC
78590187589

Dimensions

Depth
2.98 Inch
Height
3.13 Inch
Length
2.98 Inch
Warranty Length
18 mth
Width
2 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
