Hoffman EXE400250120 EXE IP66 BLK

Manufacturer: Hoffman | Catalog # EXE400250120 | Cooper Electric Part # 1392900
$411.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

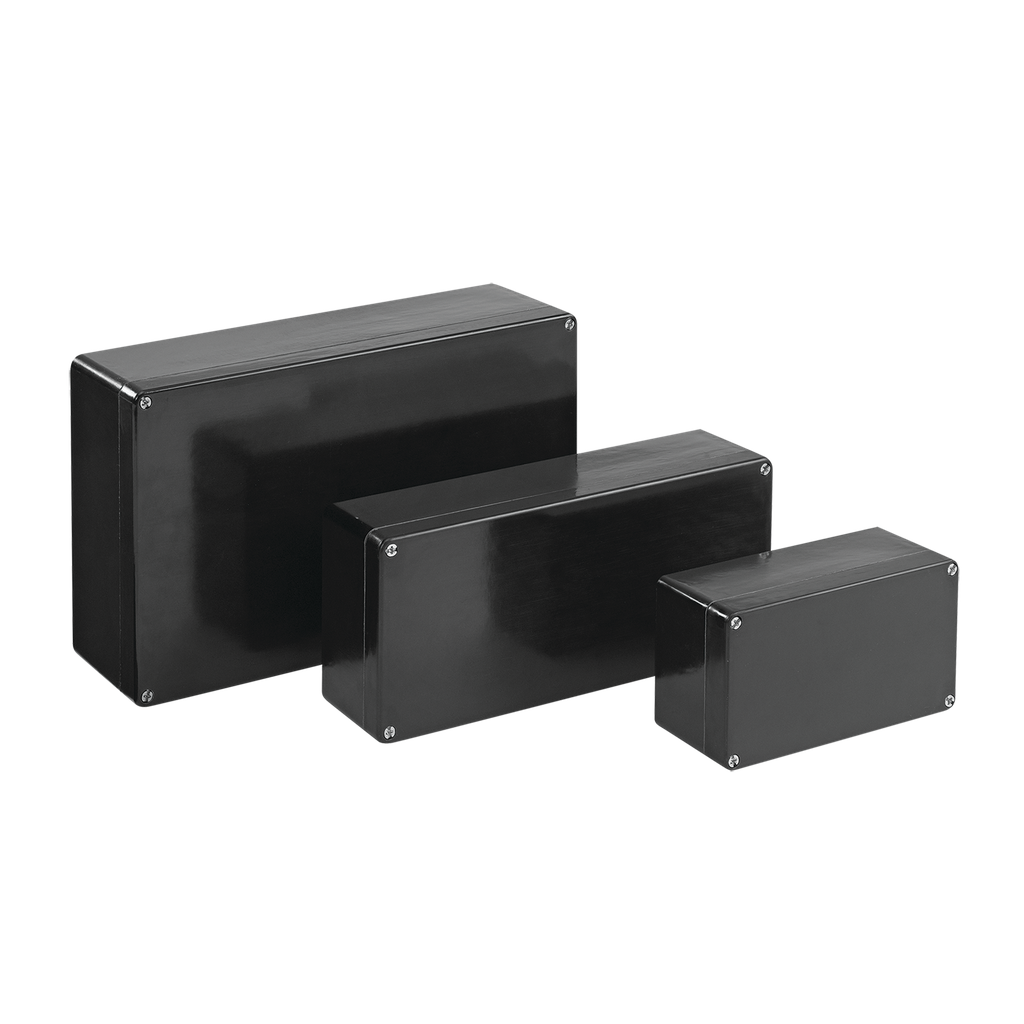

Zonex Non-Metallic Terminal Enclosure is ideal for field terminations in hazardous locations. The enclosure meets national and international standards and certifications. It can be used to protect equipment and terminations from corrosive contaminants while meeting rigorous demands. The cabinet is ideal for either panel- or din-mounted components. The enclosures meet ATEX Directives 2014/35/EU and IECEx standards for increased safety in housing electrical components in Zone 1 and Zone 2 applications.

Technical Information

Applications
Hazardous Environments
Material
Polyester
Size
250x400x120mm
Type
Fiberglass and Thermoplastic Industrial Terminal and Junction Boxes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510262525
Color
Black
Finish
Smooth
GTiN
00783510262525
Product UPC
78351026252
Weight
8.7 lb

Dimensions

Depth
4.72 Inch
Height
15-3/4 Inch
Length
16.2 Inch
Thickness
0.16 in
Width
10.20 in
Features
  • Compression-molded, high-impact strength, polyester body and cover
  • Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
  • Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
  • Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
  • Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (-in.)
  • Mounting location dimensions are molded into the back side of the enclosure
  • Panel mounting screws included, M4 or M6
  • Compression-molded fiberglass with added agents to address static charge build-up
  • High-impact strength as well as high temperature-rated
  • Increased Safety: Ex e applications
  • Optional panels are pre-plated steel, 1.5mm (16 ga.) thick; or 2mm composite
