Lithonia CPX-2X4-4000LM-35K-M2 2x4 LED Flat Panel Fixture, 4000 Lumens, 3500K, 80 CRI

Manufacturer: Lithonia Lighting | Catalog # CPX 2X4 4000LM 35K M2 | Cooper Electric Part # 1392532
$180.16/ea
ea
Log in or register to view your price, purchase history, and more!
1x4 2x2 2x4
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This panel offers 4000 lumens and 3500 kelvin CCT for a warm color temperature. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

Technical Information

Applications
Education,Government,Hospitality,Religious,Residential,Retail
Color Temperature
3500 K
Correlated Color Temp
3,500 K
Lamp Life
50,000 hr
Lamp Type
LED
Lumens
4,000 Lumen
Material
Steel
Mounting Type
Recessed,Surface,Suspended
Size
47.875x23.875x1.68
Type
Flat Panel
Voltage
120-277 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848338490
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
Fixture Type
Flat Panel
GTiN
00191848338490
Product UPC
19184833849
Shape
Rectangle
Weight
11.02

Dimensions

Height
1.68 Inch
Length
47.8 Inch
Width
23.82

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Applications
  • Education
  • Government
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
Features
  • The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This panel offers 4000 lumens and 3500K neutral white LED color temperature for a warm color temperature. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.
  • TECHNOLOGY: CPX's low-profile design with steel backplate provides installation flexibility especially in restricted ceiling space
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • RATINGS: CSA certified, damp location listed, IC rated, DLC standard
  • VOLTAGE: Standard MVOLT for 120-277 volts and can be recessed, suspended or surface box mounted with additional kit
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 60,000 hours (L7060,000)
  • INSTALLATION: Drive box sits flush on backplate and includes 4 driver board push-pin holes holes for easier installation
  • BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately
  • WARRANTY: 5-year limited warranty

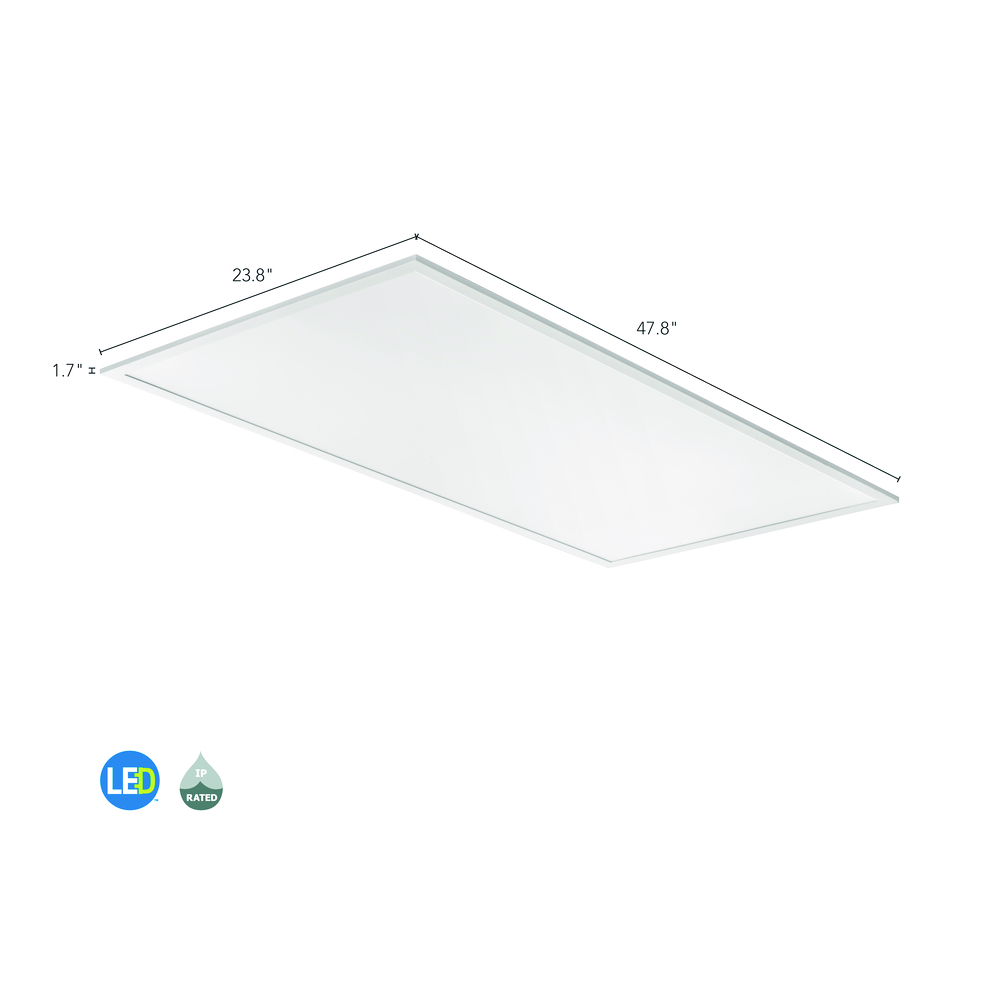

  • DIMENSIONS: 47.8 in. x 23.8 in. x 1.7 in.
  • Simple and sturdy LED panel solution, perfect for commercial applications like offices, retail or convenience stores
  • Aluminum frame with satin white lens provides smooth illumination
  • Long-life LED's and high-efficiency drivers maintain quality illumination even after 60,000 hours
  • led panel, flush driver, steel backplate, cost-effective, recessed panel, suspended panel, schools, offices, retail, convenience store, hospitals, healthcare, commercial, aluminum frame, low-profile
