WAG 734-302 M-CONN W/C-C V0 3.5MM

Manufacturer: Wago | Catalog # 734-302 | Cooper Electric Part # 1389408
$5.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
WAG 734-302 M-CONN W/C-C V0 3.5MM

Technical Information

Actuator
Operating Tool
Conductor Size
14 AWG
Connection Type
For Conductor
Contact Material
Copper
Contact Type
Tin
Current
10 Amp
Flamability Class
V0
Insulation Material
Polyamide
Number of Connections
1,2
Strip Length
0.28 in
Voltage
160 Volt

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
044918067168
Color
Gray
Product UPC
04491806716
Weight
1.894 g

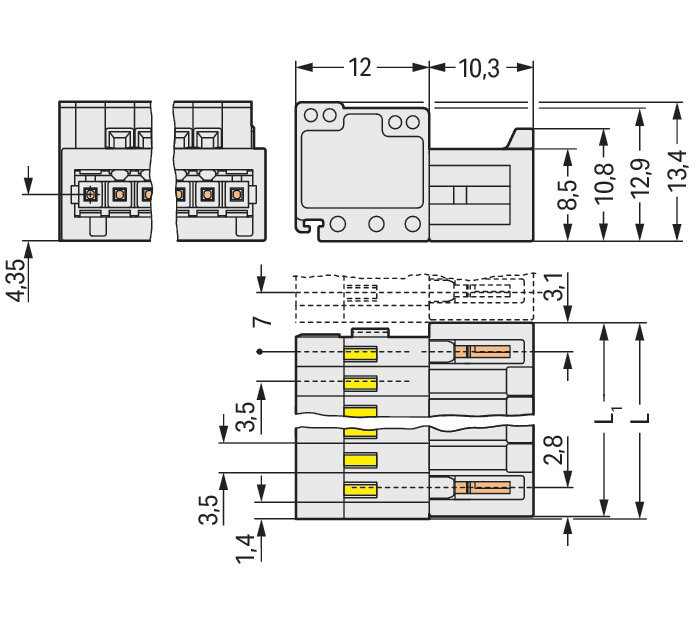

Dimensions

Depth
0.878 Inch
Height
0.528 Inch
Width
0.37 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Universal connection for all conductor types
  • Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
  • For wire-to-wire and board-to-wire connections
  • Strain relief plates and housings for factory and field assembly
  • 100% protected against mismating
  • Coding option available
Approvals
  • WAGO GmbH & Co. KG, Railway, Railway Ready
  • Underwriters Laboratories Inc., UR, E45172, UL 1059
  • DEKRA Certification B.V., CCA, nl-54190, EN 61984
  • Lloyds Register, LR, 96/20035 (E5), IEC 61984
  • American Bureau of Shipping, ABS, 19-HG1869876-PDA
  • DEKRA Certification B.V., CCA, 2169534.02, EN 61984
  • DEKRA Certification B.V., CSA, 1465035, C22.2
  • UL International Germany GmbH, UL, E45171, UL 1977
