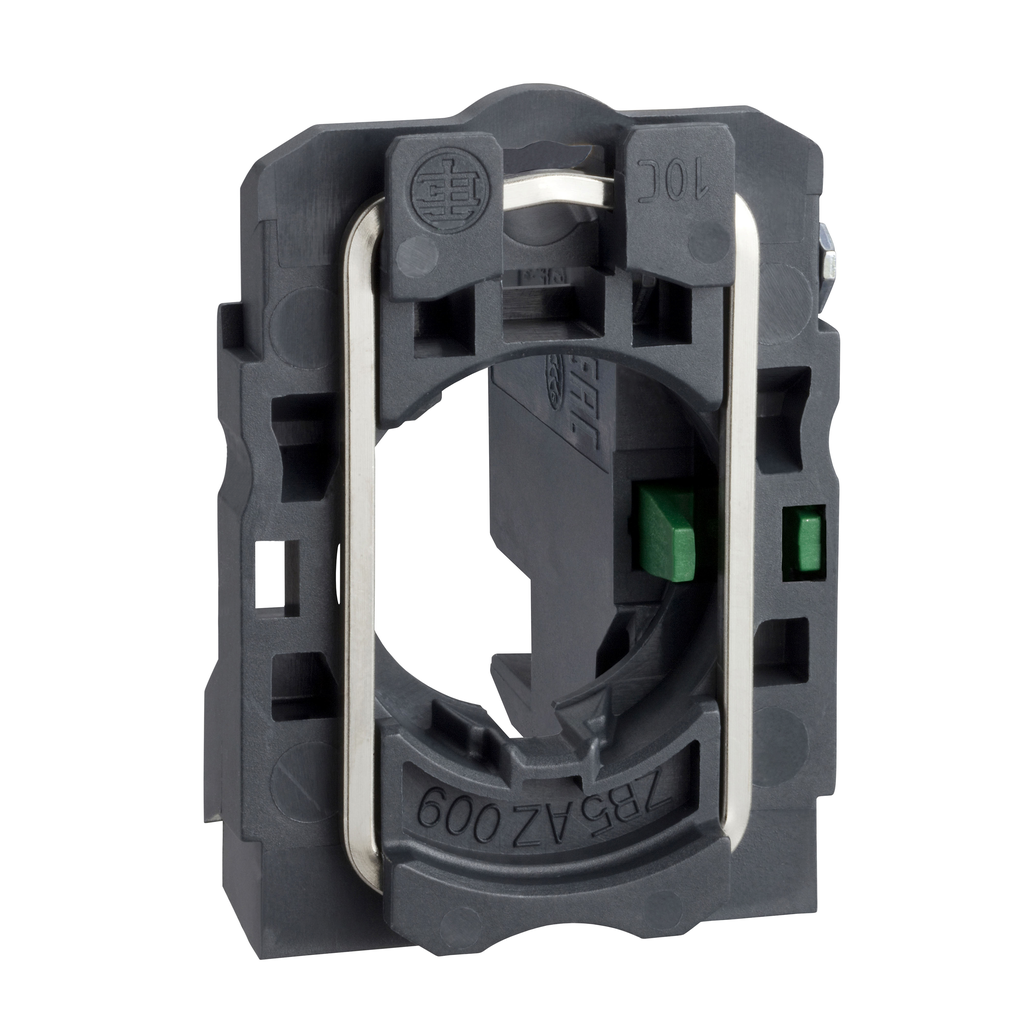

Product image for SQUARED ZB5AZ1014 Complete body/con
Image thumbnail 0
Image thumbnail 1
Email

SQUARED ZB5AZ1014 Complete body/con

Manufacturer: Square-D / Schneider | Catalog # ZB5AZ1014 | Cooper Electric Part # 1389048
$28.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony ZB5AZ1014 is a single contact block with body/fixing collar, 1 NO plug-in connector. It is part of the range Harmony XB5 diameter 22mm modular plastic push buttons, switches, and pilot lights.

Technical Information

Action
Slow-break
Amperage
3 Amp 240 V, AC-15, A300 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Contact Configuration
1 NO
Contact Material
Silver Alloy
Contact Rating
A300 - R300
Head Type
Standard
Net Weight
0.018 kg
Operating Force
2.3 N NO changing electrical state
Operating Temperature
-40-70 Adegrees C
Size
30 MM,32 MM,42 MM
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
PLUG-IN CONNECTOR
Type
Single;Complete body/contact assembly
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901396338
GTiN
03389110924404
Product UPC
78590139633
Weight
0.04 lb

Dimensions

Height
42 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL
Country of Origin
France
