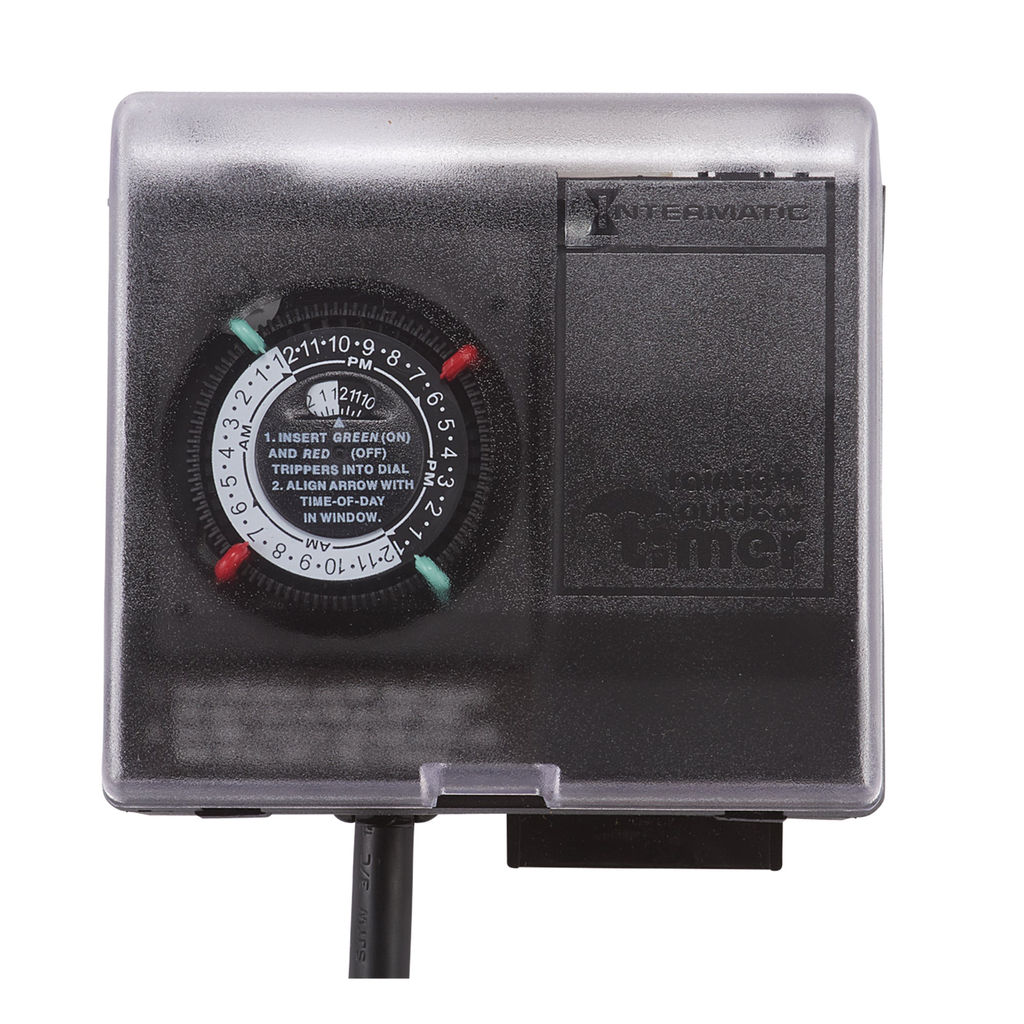

Product image for Intermatic P1131 TWO ON/OFF SETTINGS - 20 AMP TWIST LOCK
Image thumbnail 0
Image thumbnail 1
Email

Intermatic P1131 TWO ON/OFF SETTINGS - 20 AMP TWIST LOCK

Manufacturer: Intermatic, Inc | Catalog # P1131 | Cooper Electric Part # 138755
$200.06/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet

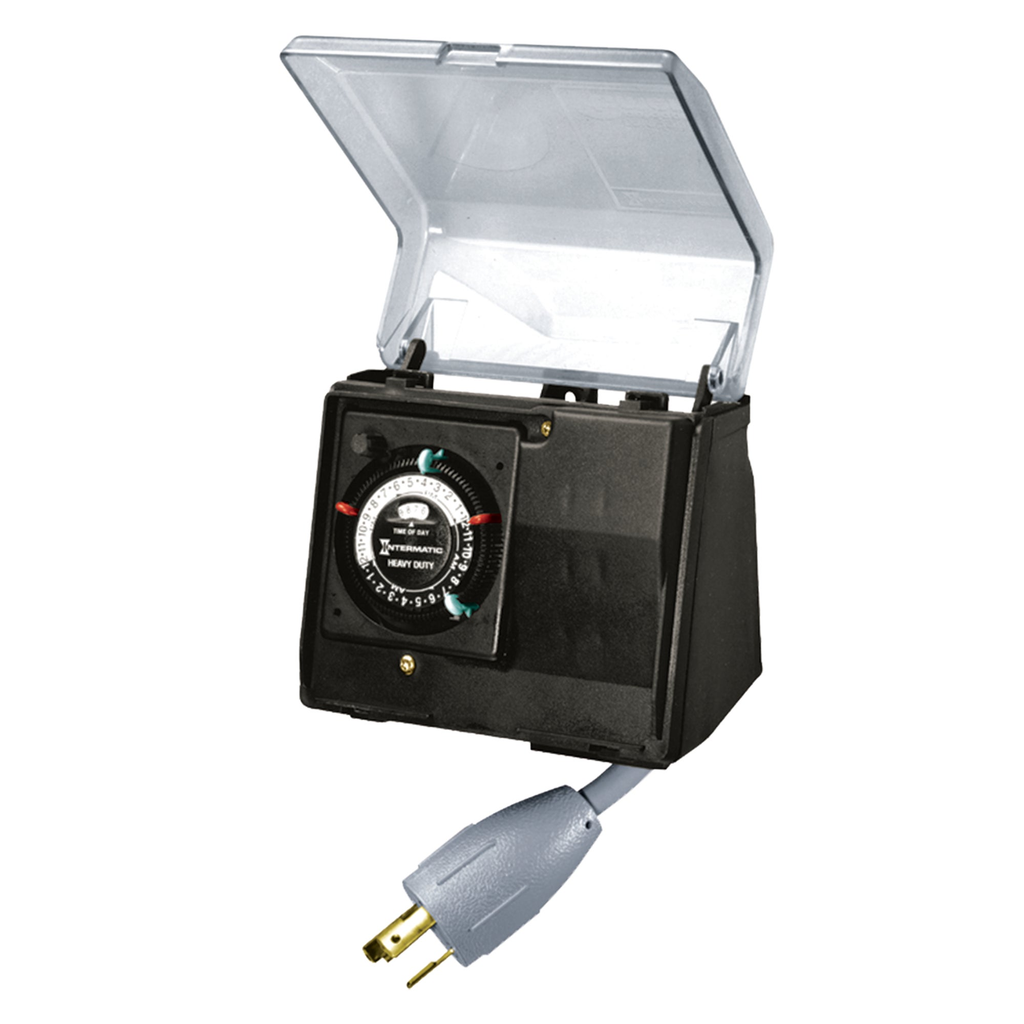

These plug-in timers are grounded and utilize a flip-open enclosure rated for outdoor use. Great for providing timer function to pumps, landscaping or holiday lighting.

Technical Information

Action
SPST
Amperage
20 Amp
Applications
Pool/Spa control, Outdoor, Filter Pumps, Air Conditioners, Signs, Lights, Engine Block Heaters, Fans
Contact Configuration
1 NO, SPST
Contact Rating
20 A
Cord Length
22 IN
Enclosure
Plastic
Enclosure Type
Plastic
Input Voltage
120 V
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
120 degrees F
Plug Type
5L-20
Power Consumption
1800 W
Power Source
1 hp
Size
5 HEIGHT X 5-1/2 WIDTH X 3-3/4 DEPTH IN, 12.7 HEIGHT X 13.97 WIDTH X 9.52 DEPTH CM
Standard
CCSAus Certified
Temperature Rating
-20 to 120 degrees F
Type
Portable Outdoor, Heavy Duty
Voltage
120 Volt
Wattage
1800 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275060982
Color
Black
GTiN
00078275060982
Product UPC
07827506098
Weight
1.647 lb

Dimensions

Depth
2-1/2 Inch
Height
5-3/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Mexico
Features
  • 2 ON/2 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers.
  • Minimum 30-min ON/OFF time.
  • Built into outdoor rated enclosure with clear or black flip cover.
  • Grounded twist-lock NEMA 5L-20 plug & receptacle.
  • Plugs directly into wall outlet.
  • NA
