Square D 8501RS42V20 120 VAC 10 Amp DPDT 2CO Socket Mount AC Operated Miniature Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # 8501RS42V20 | Cooper Electric Part # 138672
$50.67/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page

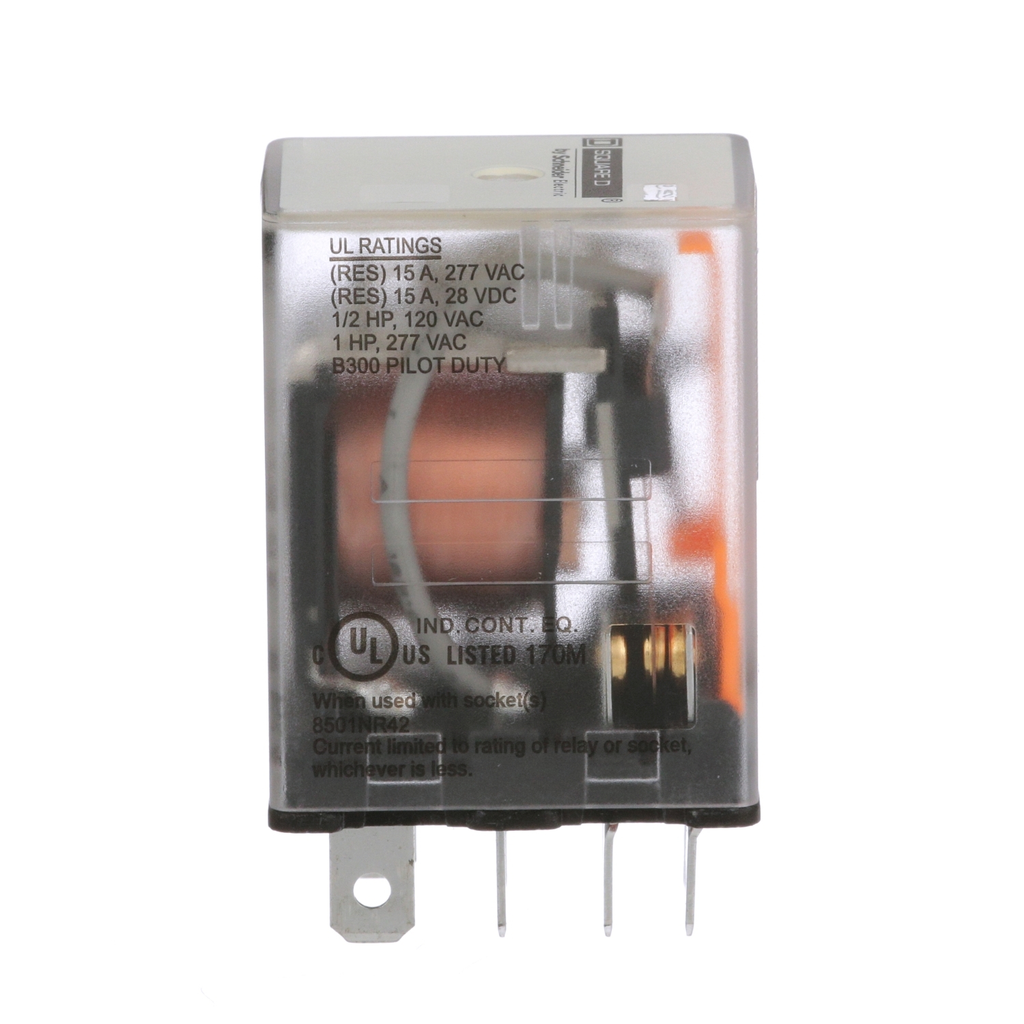

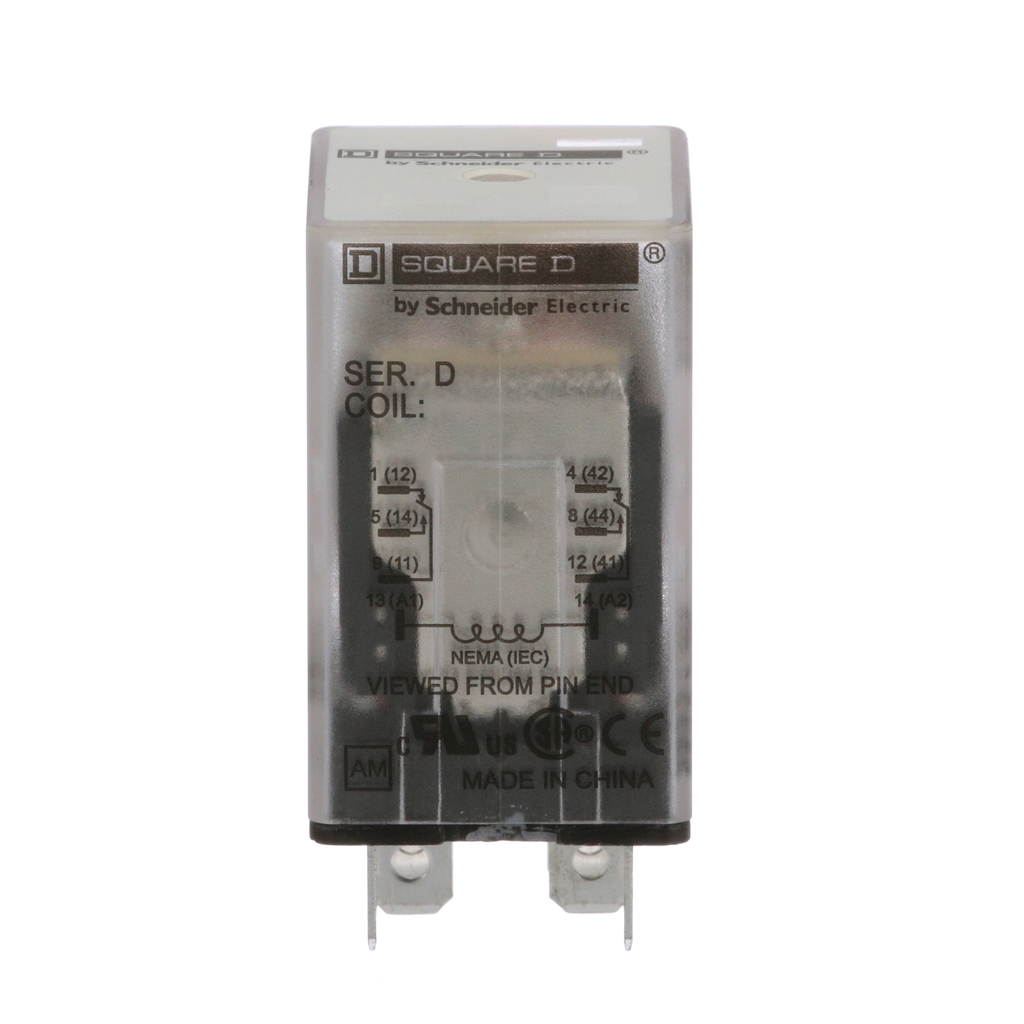

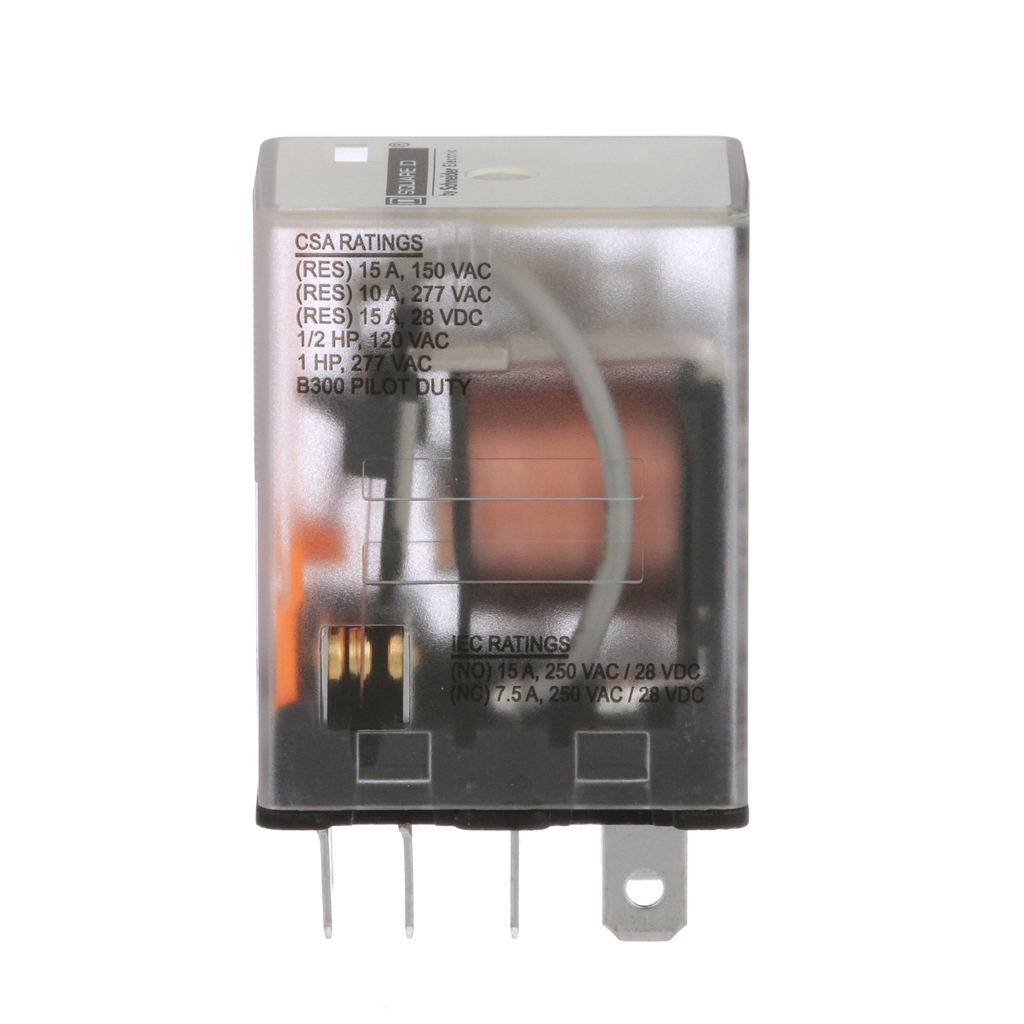

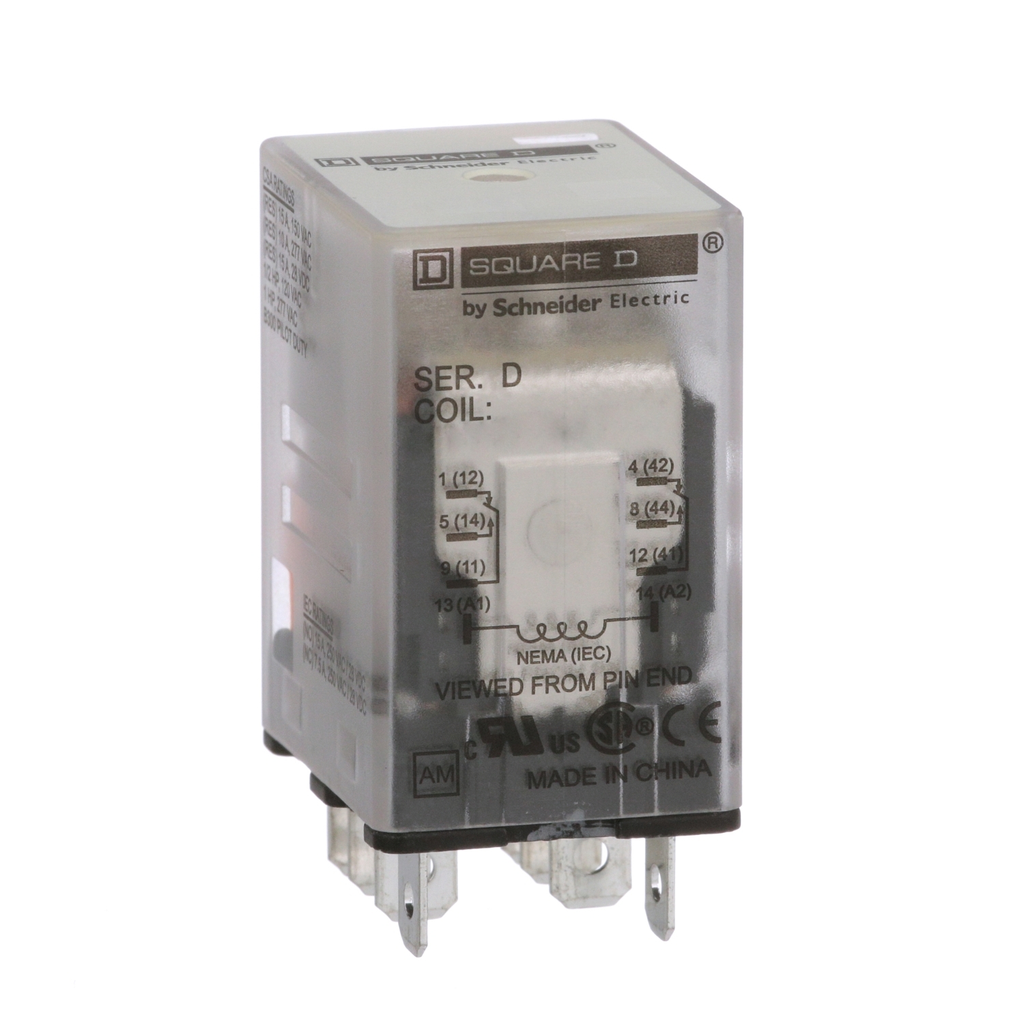

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Technical Information

Amperage
10@120/240VAC Amp
Applications
0.5 120 V AC-1 277 V AC,8501NR42
Contact Configuration
DPDT
Contact Material
Silver Alloy, Gold Flashed
Mounting Type
Socket
Operating Temperature
-40-131 Adegrees F
TC Connection
SPADE
Type
DPDT,MINIATURE RELAY,STANDARD

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901131311
GTiN
00785901131311
Product UPC
78590113131
Used With
8501NR42

Dimensions

Depth
41.8 mm
Height
27.3 mm
Warranty Length
18 mth
Width
21 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • 8501NR42
  • 8501NH42
  • 8501NR42B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Compare
