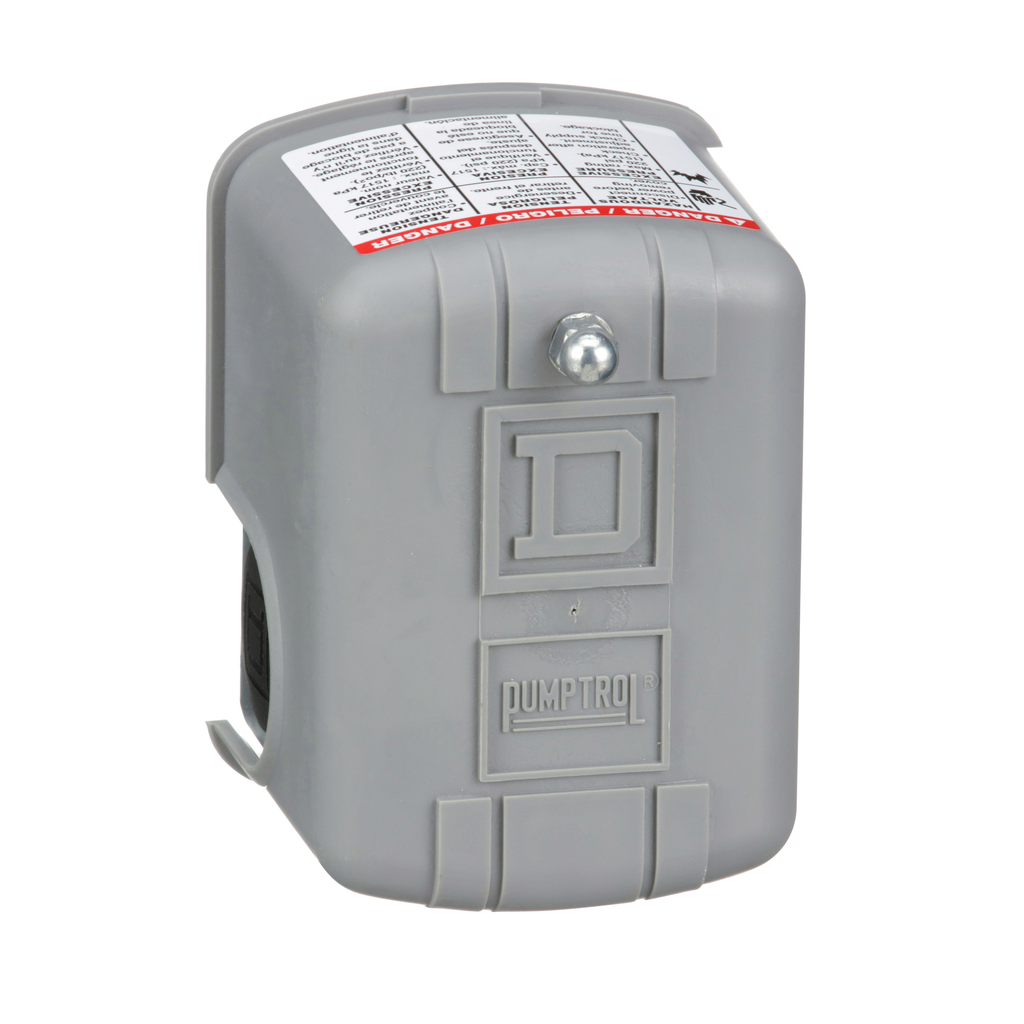

Product image for SQD 9013FHG12J68 PRESSURE SWITCH 57
Image thumbnail 0
Image thumbnail 1
Email

SQD 9013FHG12J68 PRESSURE SWITCH 57

Manufacturer: Square-D / Schneider | Catalog # 9013FHG12J68 | Cooper Electric Part # 1386451
$21.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
air compressor switch 9013FH - fixed differential - Off at 140 psi - low hp

Technical Information

Applications
1.5 KW 2 HP)230 V AC, 1 PHASE-1.1 KW 1.5 HP)115 V AC, 1 PHASE-1.5 KW 2 HP)115 V AC, 3 PHASE-2.2 KW 3 HP)230 V AC, 3 PHASE-0.75 KW 1 HP)460 V AC, 3 PHASE-0.75 KW 1 HP)575 V AC, 3 PHASE,CONTROL SMALL ELECTRICALLY DRIVEN AIR COMPRESSORS,REGULATION BETWEEN 2 THRESHOLDS
Contact Configuration
2 NC, SNAP ACTION, DPST-DB, FORM YY
Contact Rating
A600
Enclosure
NEMA 1 UL 50
Material
Noryl
Operating Cycles
10 cyc/mn
Operating Temperature
-33-257 Adegrees F
Standard
CE,UL 508
Type
ELECTROMECHANICAL PRESSURE SWITCH,FIXED DIFFERENTIAL

Manufacturer Information

Brand
Square D
Sub Brand
9013FH

General Product Info

12-Digit UPC
785901548485
GTiN
00785901548485
Product UPC
78590154848
Weight
1 lb

Dimensions

Depth
3.76 Inch
Height
3.71 Inch
Warranty Length
18 mth
Width
2.78 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA File LR25490,UL Listed File E12158
Country of Origin
Mexico
