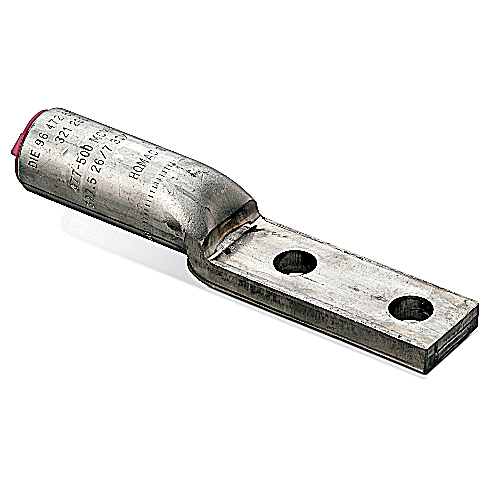

Product image for AL 2HOLE NEMA STR LUG 4 SZ2
Image thumbnail 0
Image thumbnail 1
Email

AL 2HOLE NEMA STR LUG 4 SZ2

Manufacturer: Blackburn / Thomas & Betts | Catalog # SA-4-N | Cooper Electric Part # 1386307
$26.74/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

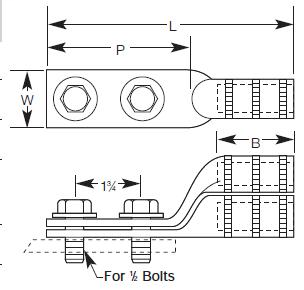

Aluminum Two-Hole NEMA Lugs - Wire Range #2 Solid, #4 Stranded - Compressed - ACSR. Installing dies TU, 52, BG, 243, 5/8, CSA 22, 640. Length 5-3/16 inch. Pad 1 inch wide x 3-1/8 inch long x 5/16 inch thick. (2) 9/16 inch holes on 1-3/4 inch centers. Barrel 1-29/64 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors

Technical Information

Applications
Routing System is a System of Channel, Fittings, Covers, and Brackets Designed to Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling Above Network Racks and Cabinets within Data Centers and Service Provider Facilities
Conductor Size
4 STR AWG ; 4 COMPR AWG ; 4 COMPT AWG ; 2 SOL AWG ; 4 ACSR AWG
Material
Aluminum
Size
5-1/8 x 7/8 inch wide
Standard
ANSI C-73
TC Connection
Compression
Type
Compression Terminal Lug
Wire Size
4 AWG ; 4 AWG ; 4 AWG ; 2 AWG ; 4 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
783786750139
Box Quantity
100
GTiN
00783786750139
Product UPC
78378675013
Features
  • Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made from Aluminum for High Strength and Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.
