HCI HBL29W49 CONN, NEMA L7-30R, 30A

Manufacturer: Hubbell Wiring Device | Catalog # HBL29W49 | Cooper Electric Part # 1385685
$98.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

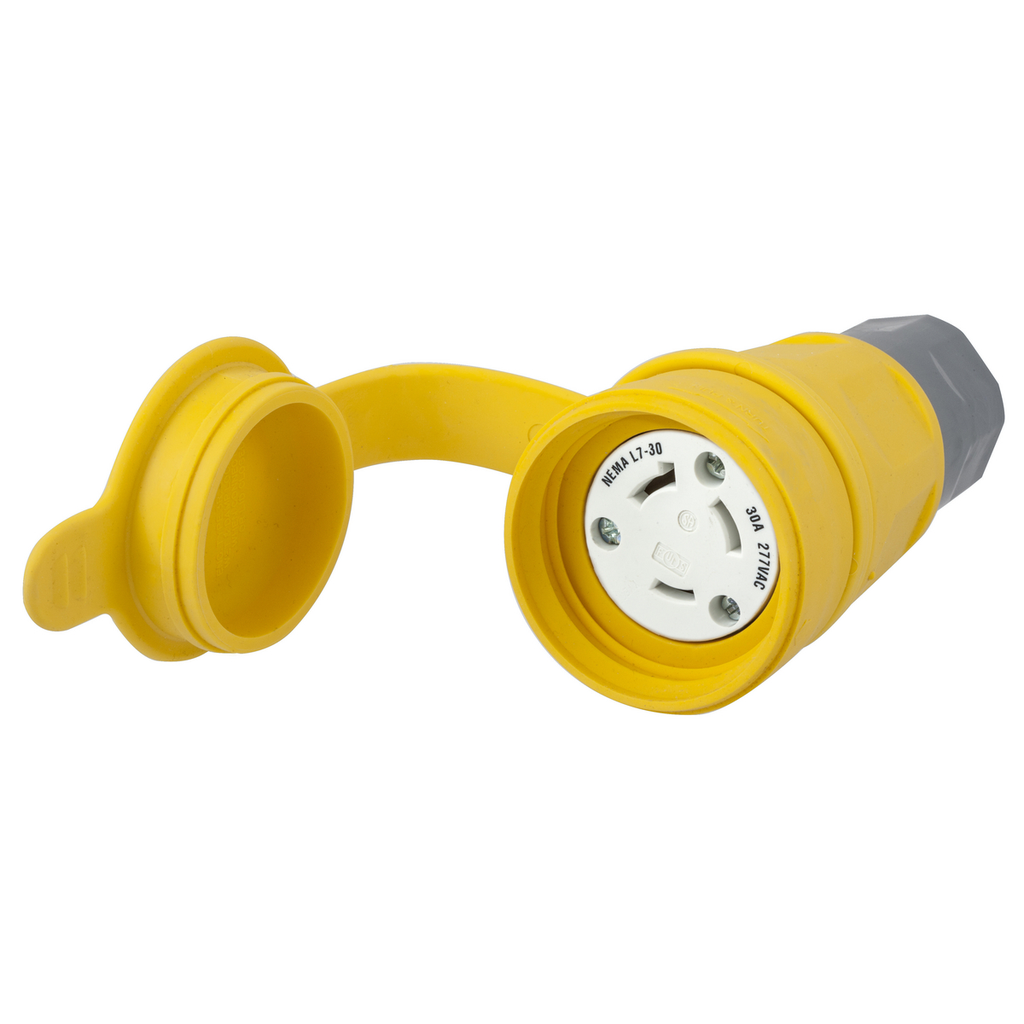

Watertight Devices, Twist-Lock® Connector, 30A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
For Power Distribution
Body Material
Thermoplastic Elastomer
Conductor Size
12-8 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.385 - 0.93 in
Current
30 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic
Mounting Type
Cable
NEMA

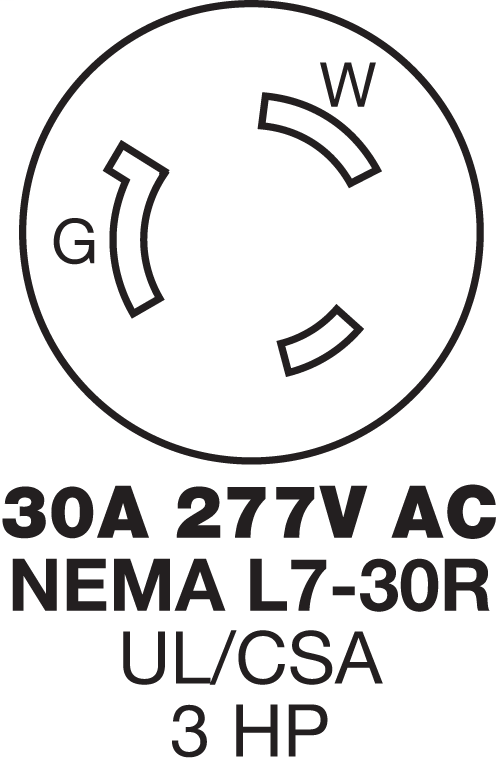

L7-30R
Number of Poles
2 Pole
Number of Wires
2 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

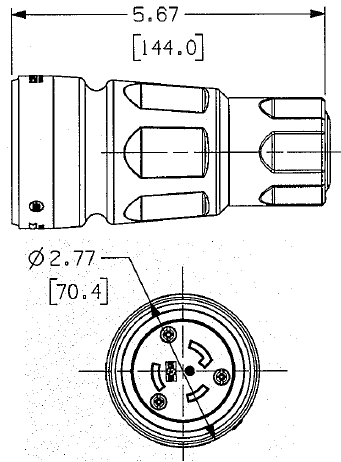

2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Connector Body
Voltage
277 Volt
Wire Count
3
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131535
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
GTiN
00783585131535
Product UPC
78358513153

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
