Product image for ABB B486 NON-INS RECT RING TRM 16-1
Image thumbnail 0
Image thumbnail 1
Email

ABB B486 NON-INS RECT RING TRM 16-1

Manufacturer: ABB | Thomas & Betts | Catalog # B486 | Cooper Electric Part # 1385285
$113.84/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

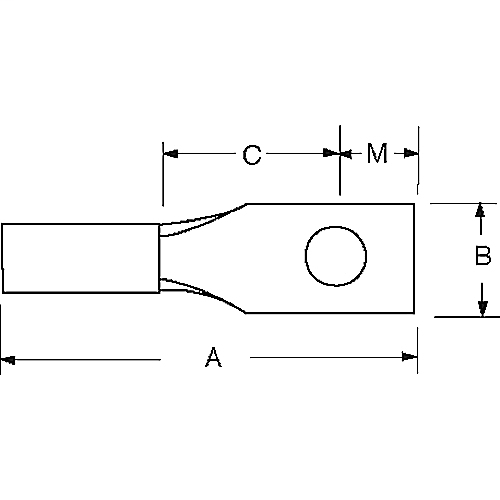

Non-Insulated Rectangular Ring Terminal, Length .65 Inches, Width .237 Inches, Bolt Hole #4, Wire Range #16-#14 AWG, Copper, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Insulation Type
Non-Insulated
Material
Copper
Standard
CSA,E2186,UL
Temperature Rating
150 degrees C
Type
Non-covered Ferrules
Voltage
600 Volt
Wire Size
16-14 AWG

Manufacturer Information

Brand
Sta-Kon

General Product Info

12-Digit UPC
786210810225
Color
Metallic
Finish
Electro Tin Plated
GTiN
00786210810225
Product UPC
78621081022
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • A, B, C486 for use with BU-Ships terminal board types 26TB.
  • 16-14 ga. = 2 1/2-4 Navy
