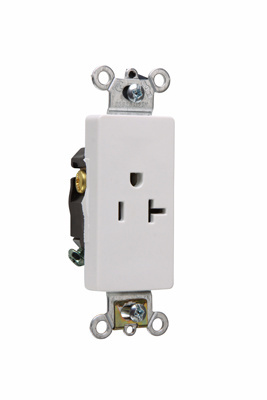

Product image for Pass & Seymour 26361-W Heavy-Duty Decorator Spec Grade Single Receptacle Back & Side Wire 20Amp 125Volt White
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 26361-W Heavy-Duty Decorator Spec Grade Single Receptacle Back & Side Wire 20Amp 125Volt White

Manufacturer: Pass & Seymour / Legrand | Catalog # 26361W | Cooper Electric Part # 13841
$36.53/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 7:00am ET
162 available

For Delivery

Order by Friday 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Decorator Spec Grade Single Receptacle Back & Side Wire 20amp 125volt Ivory

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Federal Specification
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .833 W x 3.813 H In
Style
Decorator
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Non-Reversing
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007785470
Color
White
GTiN
00785007785470
Product UPC
78500778547
UNSPSC
39121406

Dimensions

Depth
1.188 Inch
Height
3.281 Inch
Length
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CUL,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cUL Listed
  • Federal Spec Listed
