3M MV14-10FLX 100/Bottle Vinyl Insulated Locking Fork

Manufacturer: 3M | Catalog # 7000133368 | Cooper Electric Part # 1384087
$107.87/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

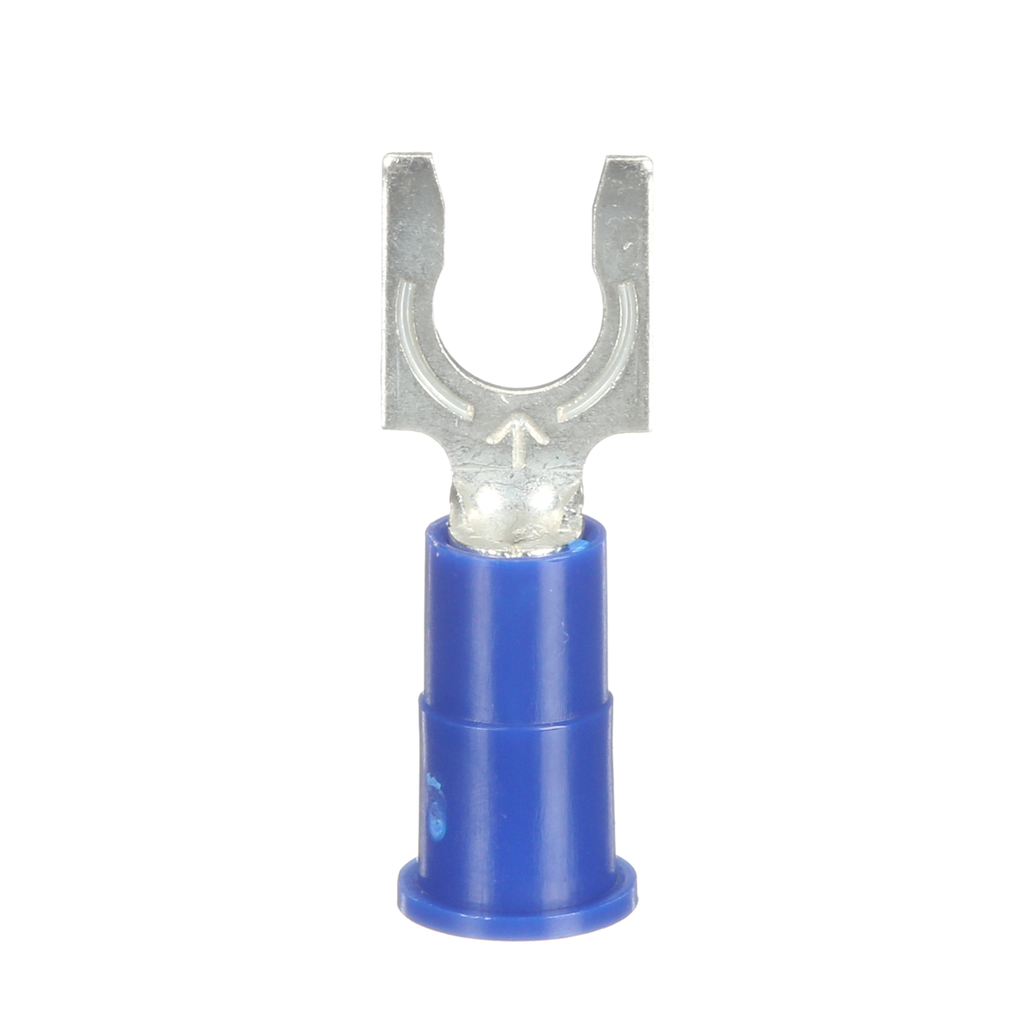

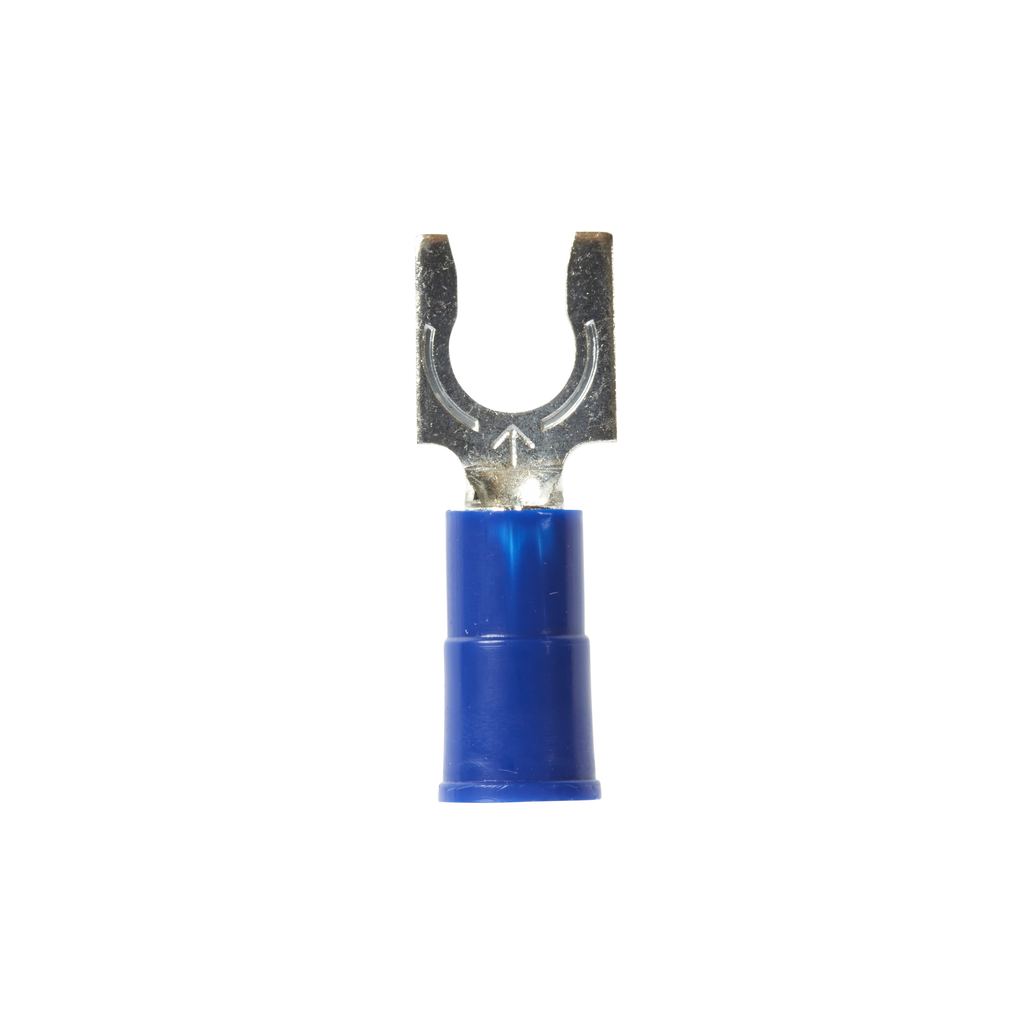

3M™ Scotchlok™ Locking Fork is a lug connection terminal that allows rapid connection of wire and are usually used on free-standing studs, because of the wider tongues. The spring-like tongue locks into place around the stud. Even when the mount screw is not tightened, extra force is required to remove it from the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees Fahrenheit (-40 to 105 degrees Celsius). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed Seam
Conductor Size
16-14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Stud Size
#10
Temperature Rating
-40 to 221 degrees F
Terminal Size
16 - 14 AWG
Terminal Style
Locking
Terminal Type
Fork
Type
Open Jaw Fork

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128588376
Color
Blue
Finish
Tin Plated
GTiN
00051128588376
Product UPC
05400713922

Dimensions

Length
0.88 Inch
Overall Length
0.88 in
Thickness
0.03 in
Width
0.32 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud

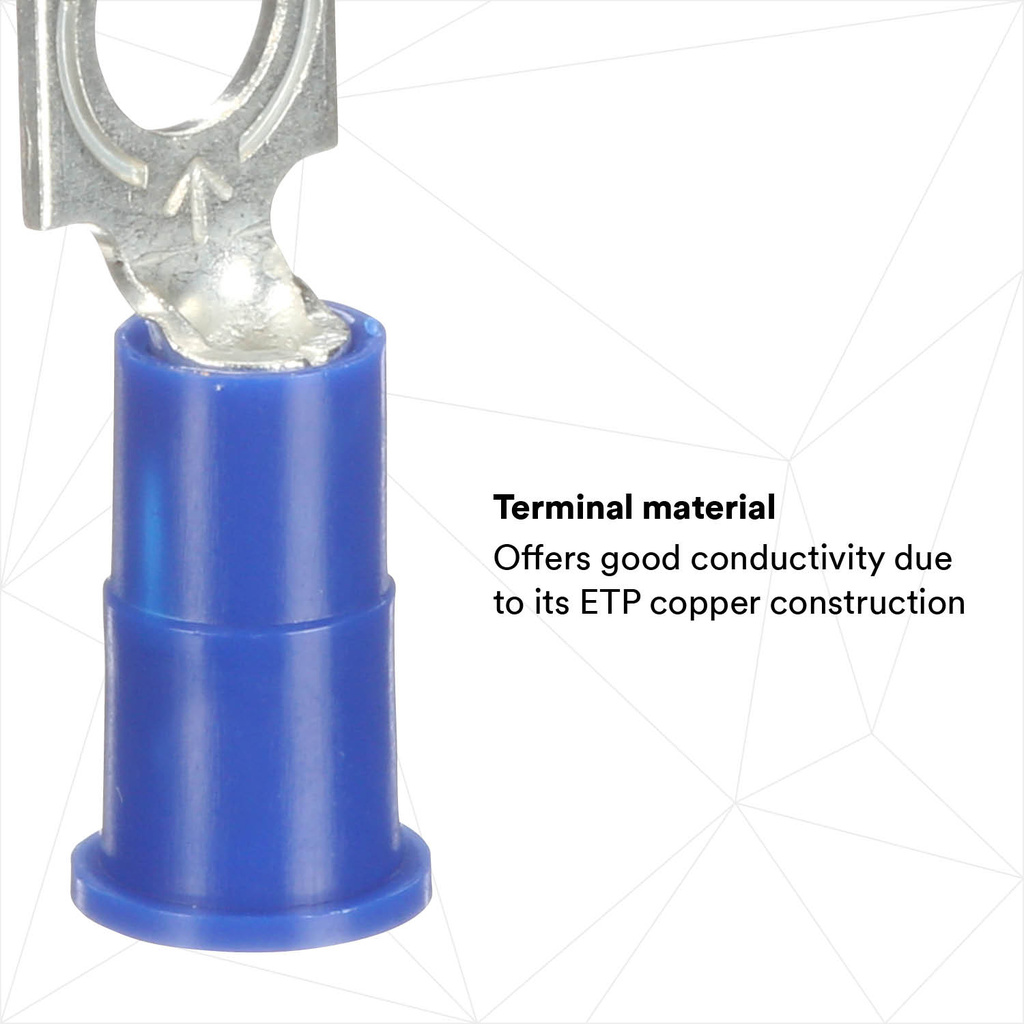

  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Compare
