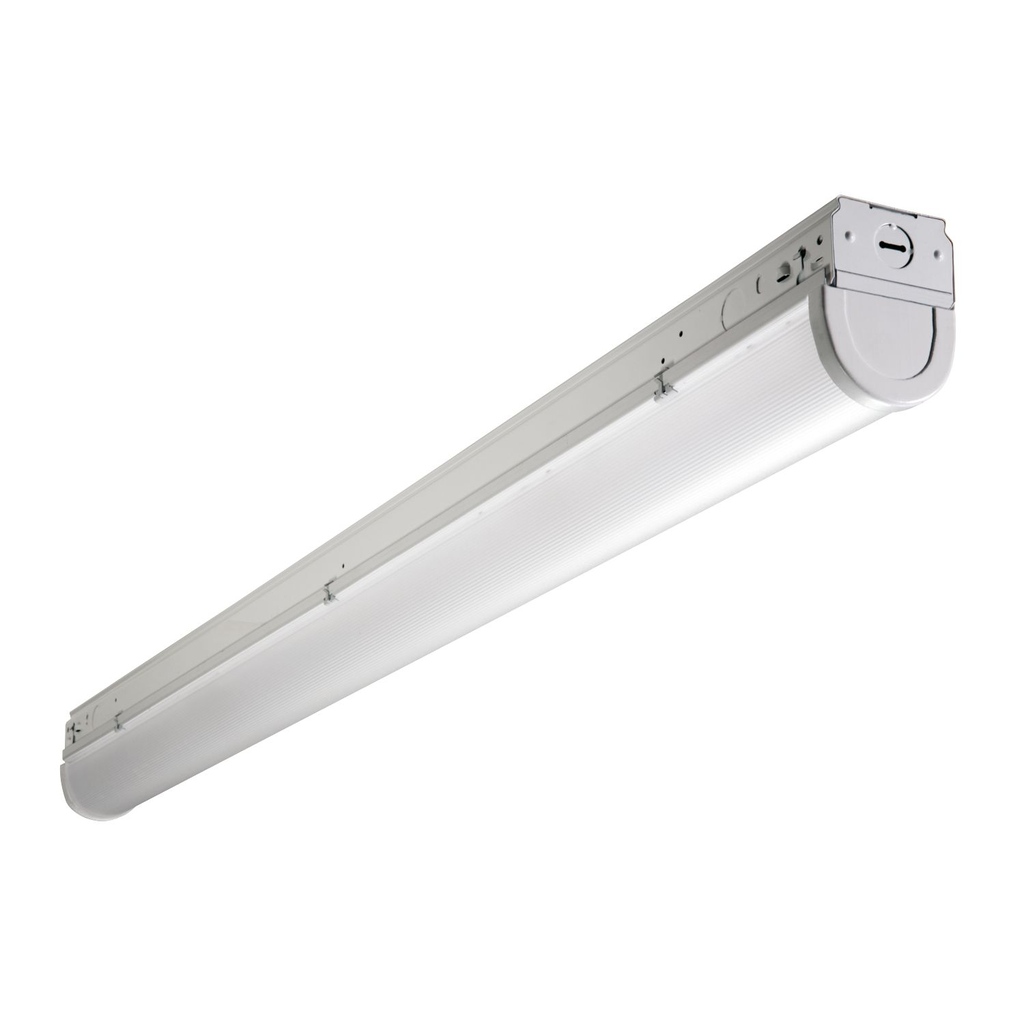

Product image for Metalux 4SNLED-LD5-46SL-LC-UNV-L835-CD1-U 4' Linear LED Striplight with Clear Lens, 4600 lumens, 3500K, 0 - 10V dimmable driver

Email

Metalux 4SNLED-LD5-46SL-LC-UNV-L835-CD1-U 4' Linear LED Striplight with Clear Lens, 4600 lumens, 3500K, 0 - 10V dimmable driver

Manufacturer: Cooper Lighting | Catalog # 4SNLED-LD5-46SL-LC-UNV-L835-CD1-U | Cooper Electric Part # 1381439

$167.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
SNLED is a linear LED striplight series which offers breakthrough fixture efficiency and control versatility. Offered in three different versions (base, lensed and reflector), the SNLED provides application flexibility of a traditional striplight with cutting-edge LED performance. Developed with standard 0 to 10V dimmability to 10% with options for 1%, Fifth Light™ and step dimming, the series provides further improved energy savings and is the ideal choice for linear applications. The small size of the SNLED makes it an ideal choice for size restricted architectural applications. The SNLED Series is well suited for commercial, industrial, retail and residential applications. Fixtures can be used in general area lighting, storage/utility areas, coves, displays, shops, tasks and in warehouses for high bay and low bay applications.

Technical Information

Applications
Lighting
Color Temperature
3500 K
Correlated Color Temp
3,500 K
Lamp Type
LED
Lumens
4,708 Lumen
Material
Steel
Mounting Type
Flushmount
Number of Lamps
1
Size
49.375 IN Length 4.0 IN Width 2.25 IN Height
Style
(blank)
Type
Strip
Voltage
120 Volt
Wattage
35 Watt

Manufacturer Information

Brand
Metalux
Sub Brand
SNLED Series

General Product Info

12-Digit UPC
080083803552
GTiN
00080083803552
Product UPC
08008380355
Weight
4.984 lb

Dimensions

Height
2-1/4 Inch
Length
49-3/8 Inch
Width
4.75 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • Standard (SL) and High lumen/High Efficacy (HL) packages
  • High efficiencies - up to 153 LPW
  • Three different lens types for optical control
  • Two different reflectors for precise distribution control
  • Minimum CRI of 80, 90 CRI available
  • Class 2 driver with standard 0-10V dimming is NEMA 410 compliant
  • UL listed up to 40 C ambient temperatures
  • Step-dim, Fifth LightTM (DALI) and motion sensing options
