3M 7000005801 3M™ Scotchlok™ IDC C

Manufacturer: 3M | Catalog # 7000005801 | Cooper Electric Part # 1381221
$0.20/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

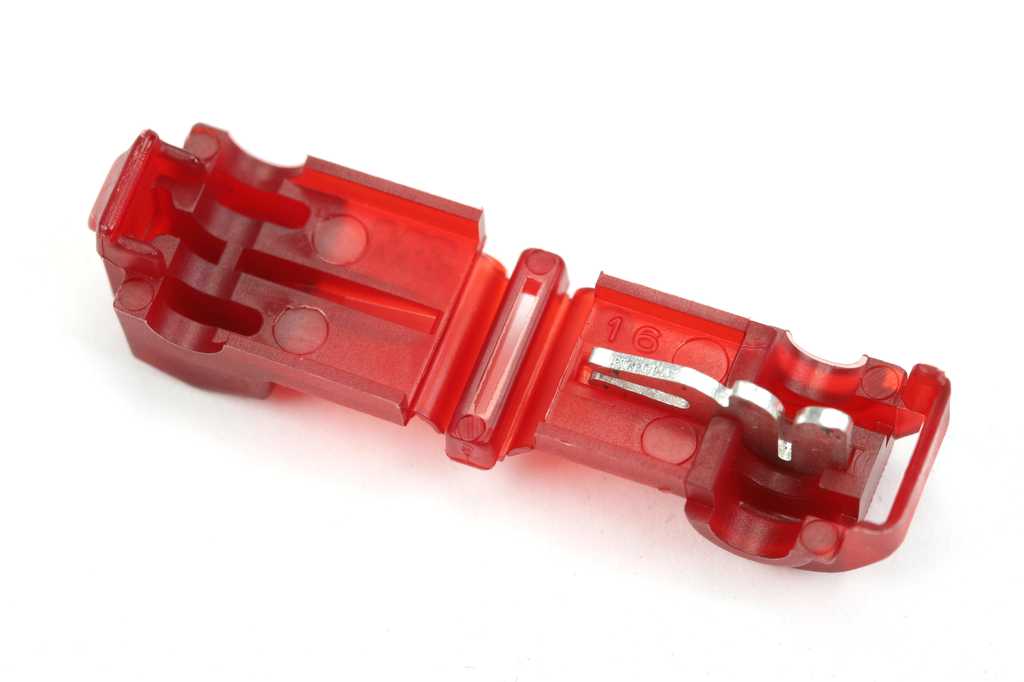

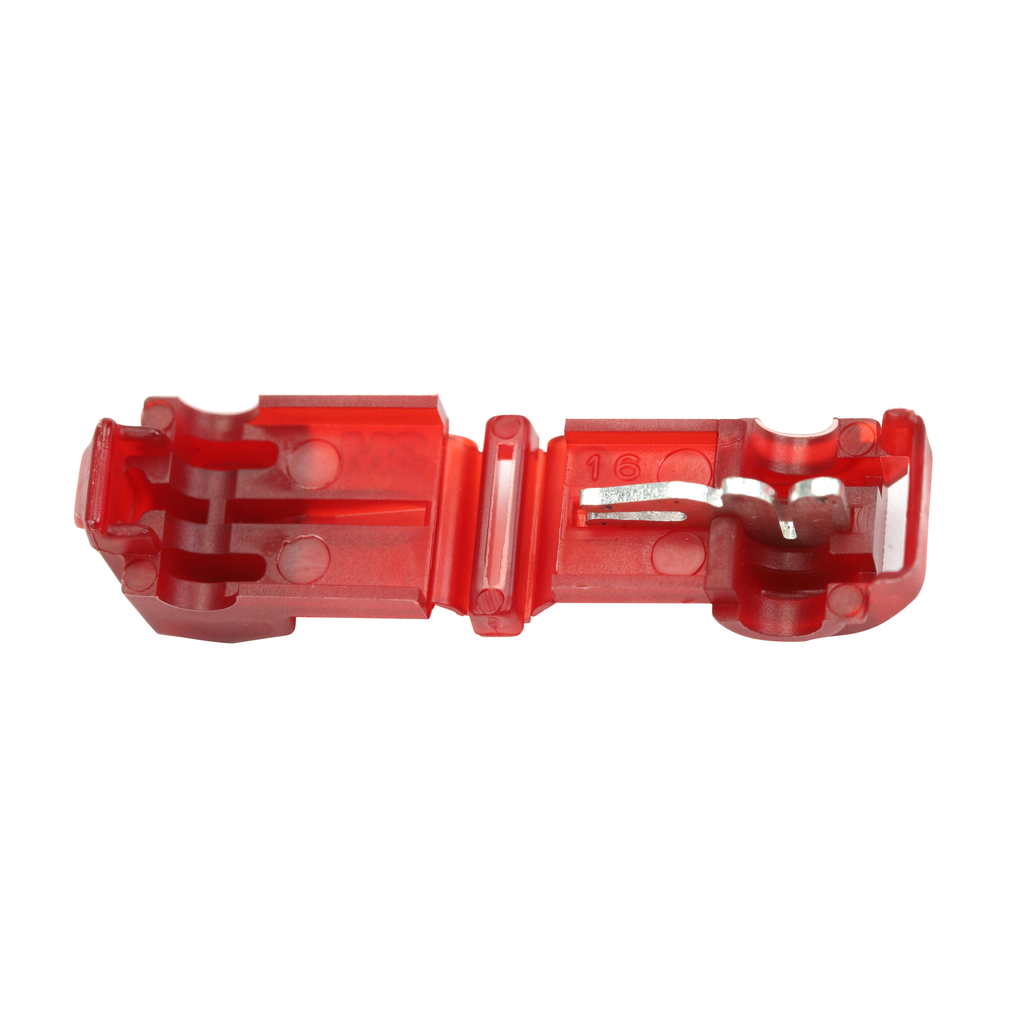

3M™ Scotchlok™ Female QuickSlide Disconnect 951 t-tap connector is nylon insulated, self-stripping and accepts 22-18 AWG. It is designed to electrically tap into a wire in mid-span without cutting or stripping the wire. The connector then mates with a .250 inch (6.35 millimetre) male tab, making a reusable quick-connect wiring termination.

Technical Information

Max Operating Temperature
105.0 degrees C
Size
22 - 18 AWG
Standard
UL And CSA
TC Connection
T-Tap

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
054007123132
Color
Red
GTiN
00054007123132
Product Type
Connector
Product UPC
05400712313

Certifications and Compliance

Country of Origin
USA
Features

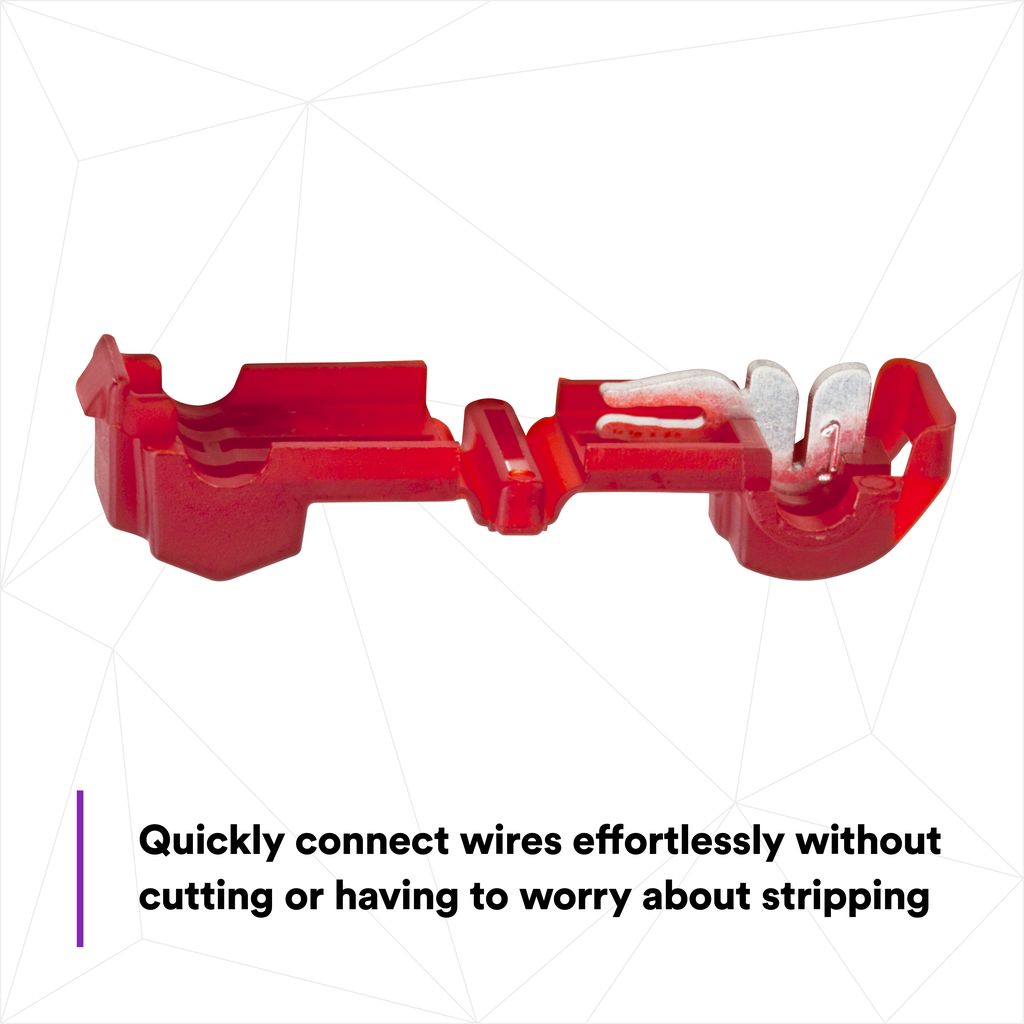

  • FAST CONNECTION: Quickly connect wires effortlessly without cutting or having to worry about stripping

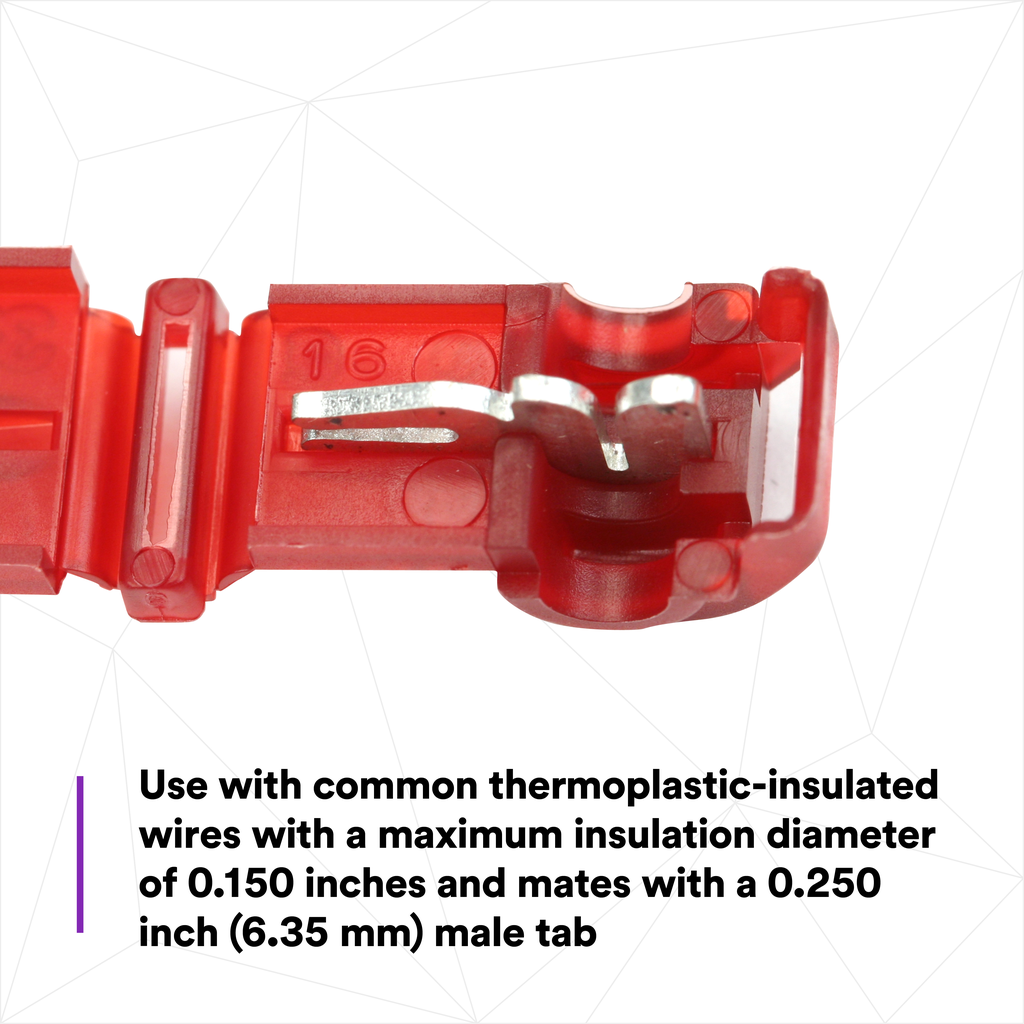

  • COMPATIBILITY: Use with common thermoplastic-insulated wires with a maximum insulation diameter of 0.150 inches and mates with a 0.250 inch (6.35 mm) male tab, making a reusable quick connect wiring termination.
  • VERSATILE: Used for multiple electrical applications, such as appliance maintenance and repair, lighting, and a host of other OEM uses
  • UL LISTED AND CSA CERTIFIED: Meets the UL standard 310 for AWG only, and CSA 22.2 Certified
  • COMPLIANCE INFORMATION: For more information, visit www.3m.com/regs
  • Operating temperature 221F (105C)
