ALUMINUM/COPPER MECHANICAL LUG CONNECTOR

Manufacturer: Square-D / Schneider | Catalog # LV426967 | Cooper Electric Part # 1378635
$72.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure

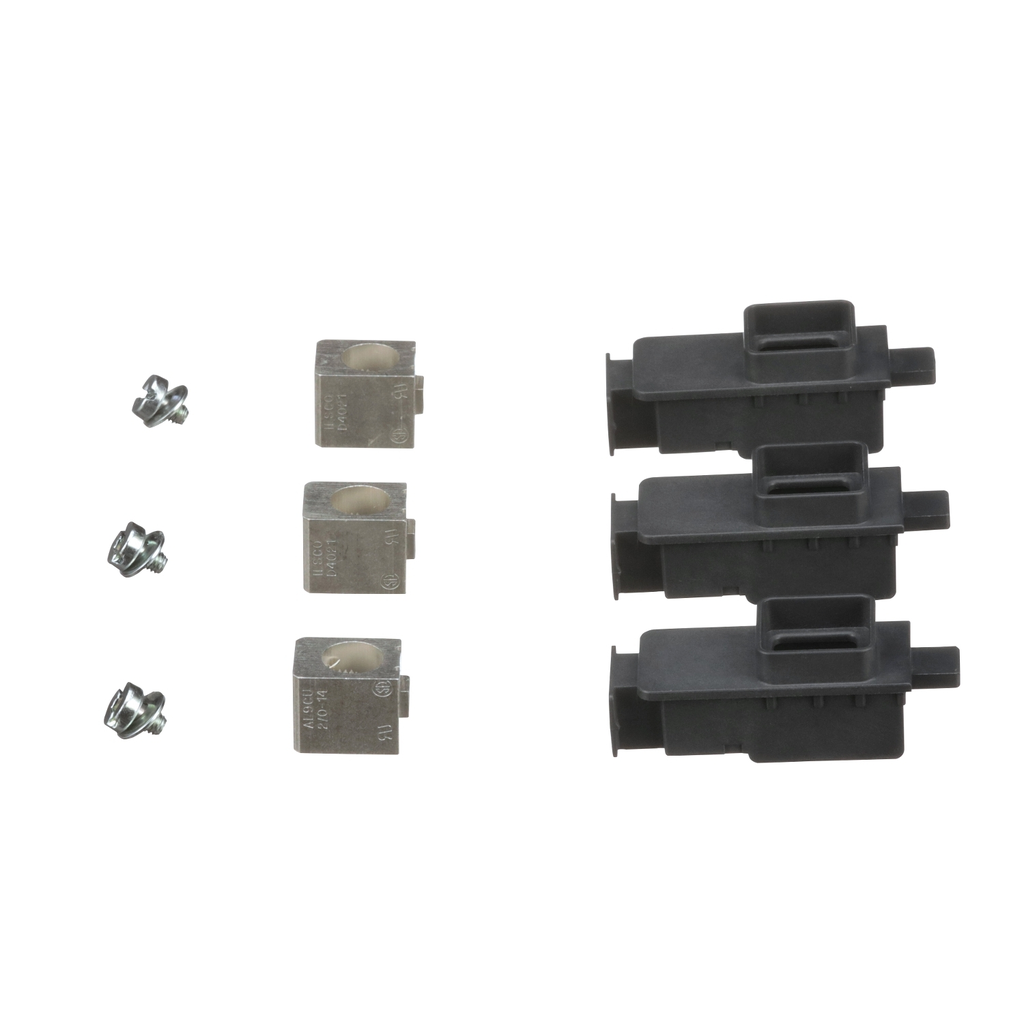

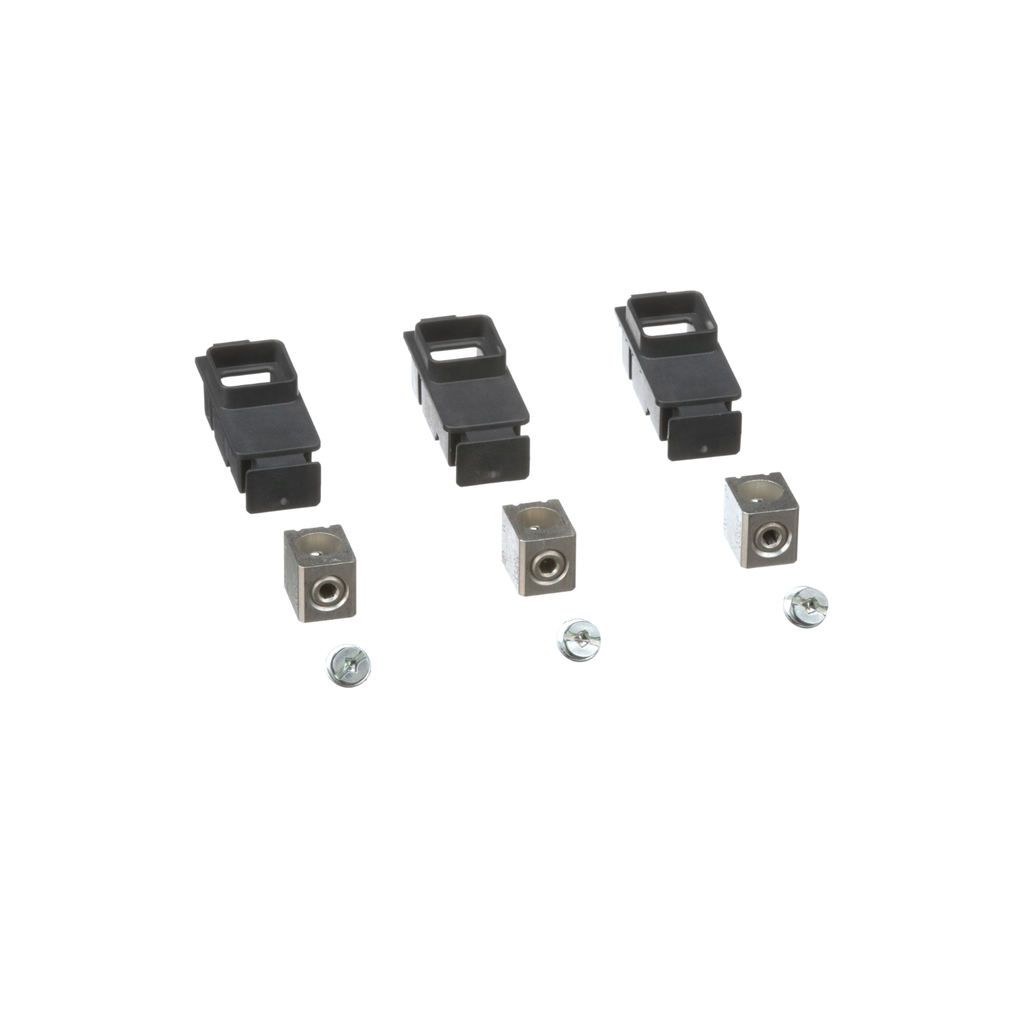

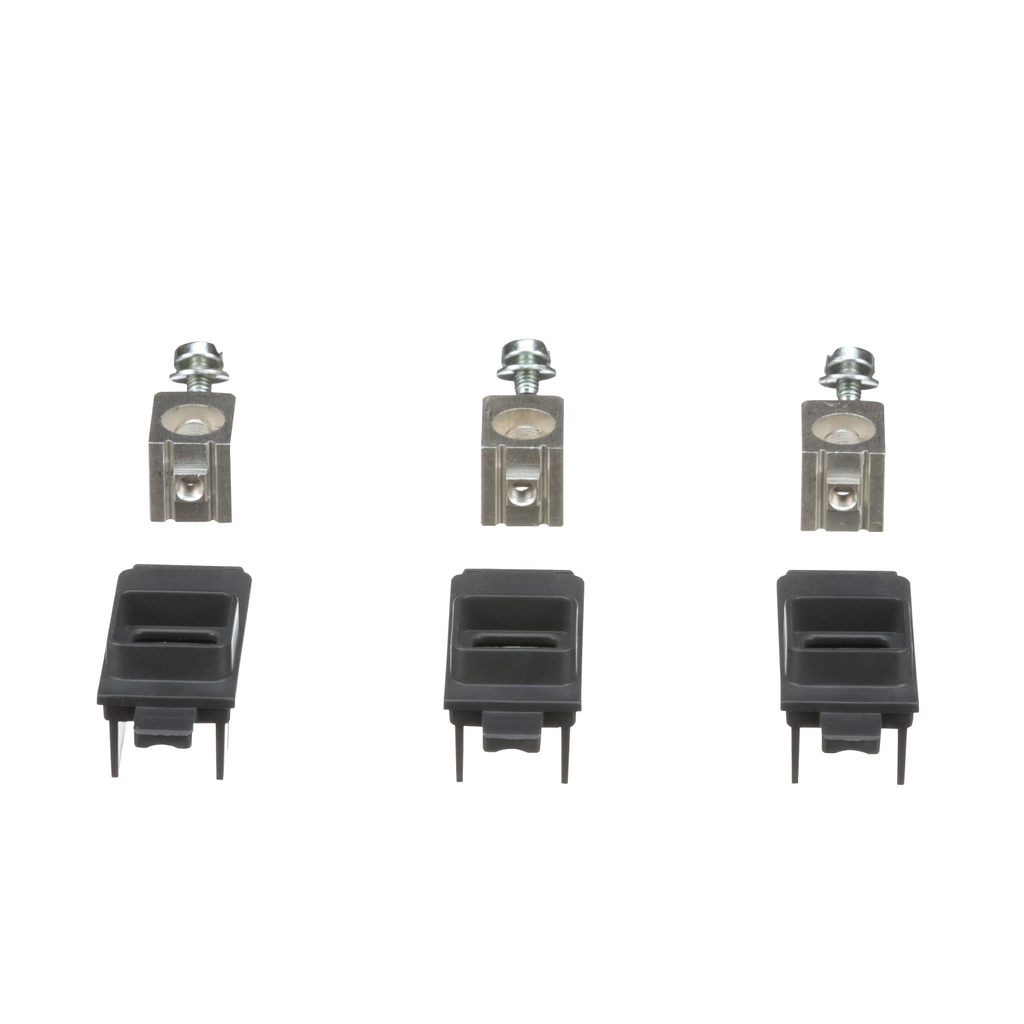

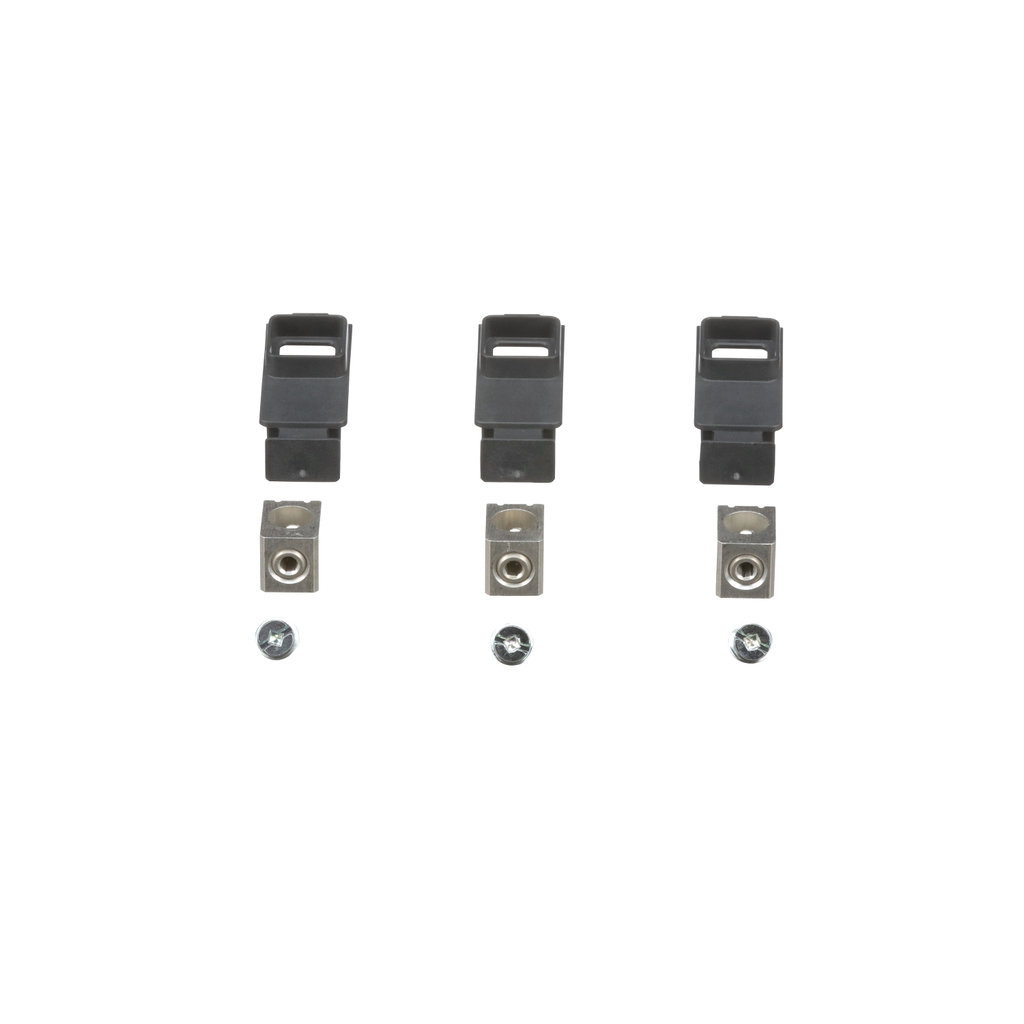

It is a set of 3 aluminium mechanical connectors for Compact NSXm and PowerPact B devices. These lugs are made of tin-plated aluminium an are suitable for copper and aluminium conductors. They are fastened to the terminals with lug mounting screws inserted from the bottom. The current rating is from 15A to 125A for copper wires (2.5 - 6 mm.), and the torque is 4 N.m +/- 0.4. For aluminium wires, the current rating is from 15A to 125 A (10 - 70 mm.), and the torque is 5.6 N.m +/- 0.6.

Technical Information

Actuator
N/A
Amperage
125 Amp
Applications
N/A
Conductor Material
Aluminium,Copper
Enclosure
N/A
Frame
N/A
Line Rated Current
16-125 A
Mounting Type
Fixed
Operating Temperature
N/A
Reset Type
N/A
TC Connection
N/A
Trip Range
N/A
Trip Type
N/A
Type
ACCESSORY

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SQUARE D

General Product Info

12-Digit UPC
360648115444
GTiN
03606481154460
Product UPC
60648115446

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
Connections Terminals
  • screw terminal 2.5-70 mm² AWG 14...AWG 2/0)
Range Of Product
  • PowerPact B
  • ComPact NSXm
Conductor Material
  • copper
  • aluminium
