Blackburn ADR35-44 4-Hole Mount

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR35-44 | Cooper Electric Part # 137813
$13,939.66/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Four-Conductor, Four-Hole Mount for Conductor Range Max 350 kcmil, Min 6 Str.

Technical Information

Conductor Size
6 AWG-350 kcmil
Conductor Type
Copper
Material
Aluminum
Number of Conductors
4
Standard
UL E9809
Type
Dual Rated

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610266
Finish
Tin Plated
GTiN
00783786610266
Product UPC
78378661026

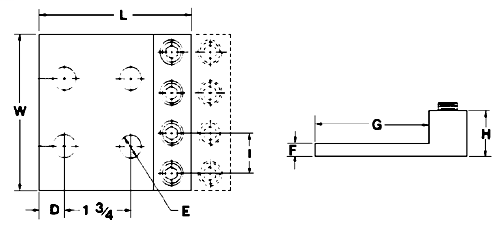

Dimensions

Height
1-3/8 Inch
Length
4-1/4 Inch
Width
4-23/32 in
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Certifications
  • CSA
  • UL
Features
  • Easy Installation - no special tools required.
