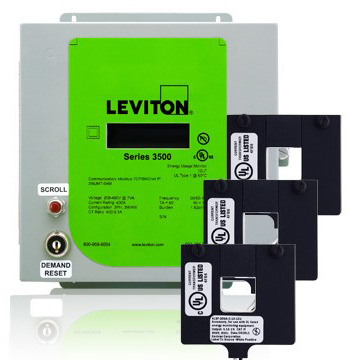

Product image for LEV 3KUMT-30M GY IND 3500SER MTR KI
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV 3KUMT-30M GY IND 3500SER MTR KI

Manufacturer: Leviton Mfg Co | Catalog # 3KUMT-30M | Cooper Electric Part # 1377650
$2,375.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Modbus TCP/BACnet IP Submeter - Indoor Series 3500 Multi-Function Universal Voltage (208-480VAC) 3 PHASE 3W/4W Submeter Kit (CTs included), 3 3000A Split Core Current Transformers (CT)

Technical Information

Accuracy
1 PCT
Amperage
3 Amp
Applications
Commercial
Cable Size
18-14 AWG
Communication Type
BACnet IP,Ethernet,ModBus TCP/IP,Pulse Output
Current Ratio
3000:0.11
Enclosure
JIC Steel
Enclosure Rating
1
Enclosure Type
Indoor (NEMA 1)
Frequency
60 Hz
Number of Phases
3 Phase
Primary Current
3000 A
Primary Voltage
177 To 552 V
Secondary Current
0.11 A
Standard
ANSI C12.1 And C12.20 (0.5),UL And CUL Listed
Temperature Rating
-20 To 50 degrees C
Type
Meter With Ethernet Communication

Manufacturer Information

Brand
Meters
Sub Brand
METER KITS

General Product Info

12-Digit UPC
078477631294
GTiN
60078477631296
Product UPC
07847763129

Dimensions

Height
9.66 Inch
Length
8.21 Inch
Width
2.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
  • Isolated pulse output
  • Integrates easily with building management systems
  • Highly accurate 0.5% accuracy class
  • Delivers universal voltage performance
  • 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
  • 100-5000 Amps
  • Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data
  • Certified to all applicable standards of ANSI C12.1
  • Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
  • Up to three sets of CTs per phase can be paralleled per meter
