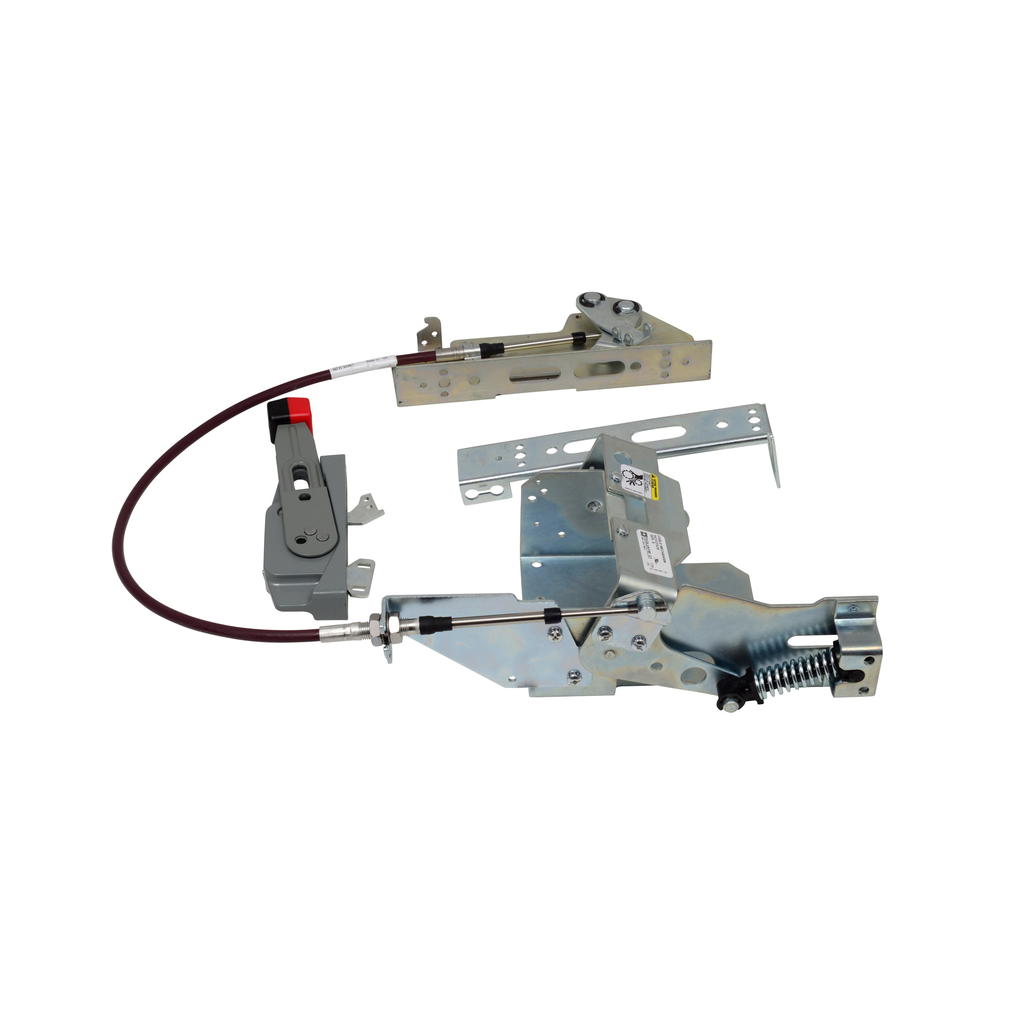

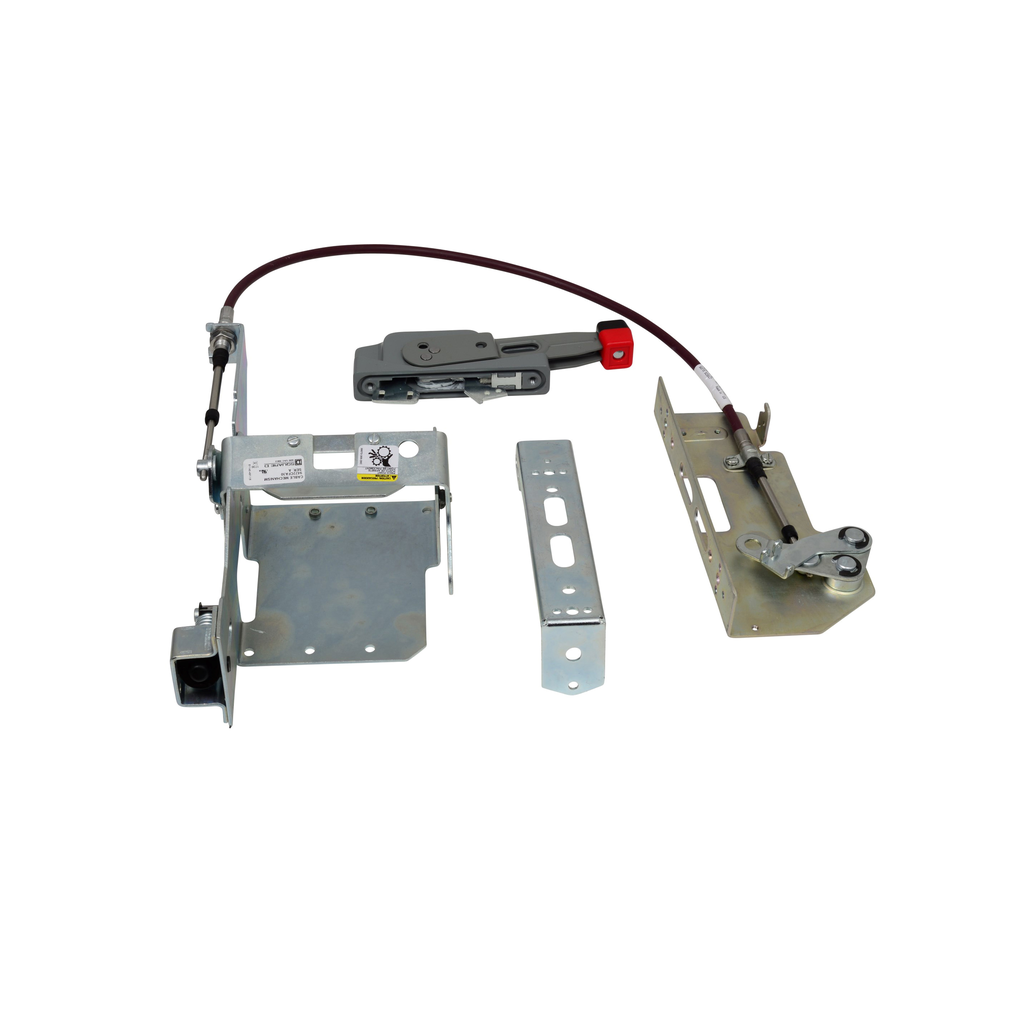

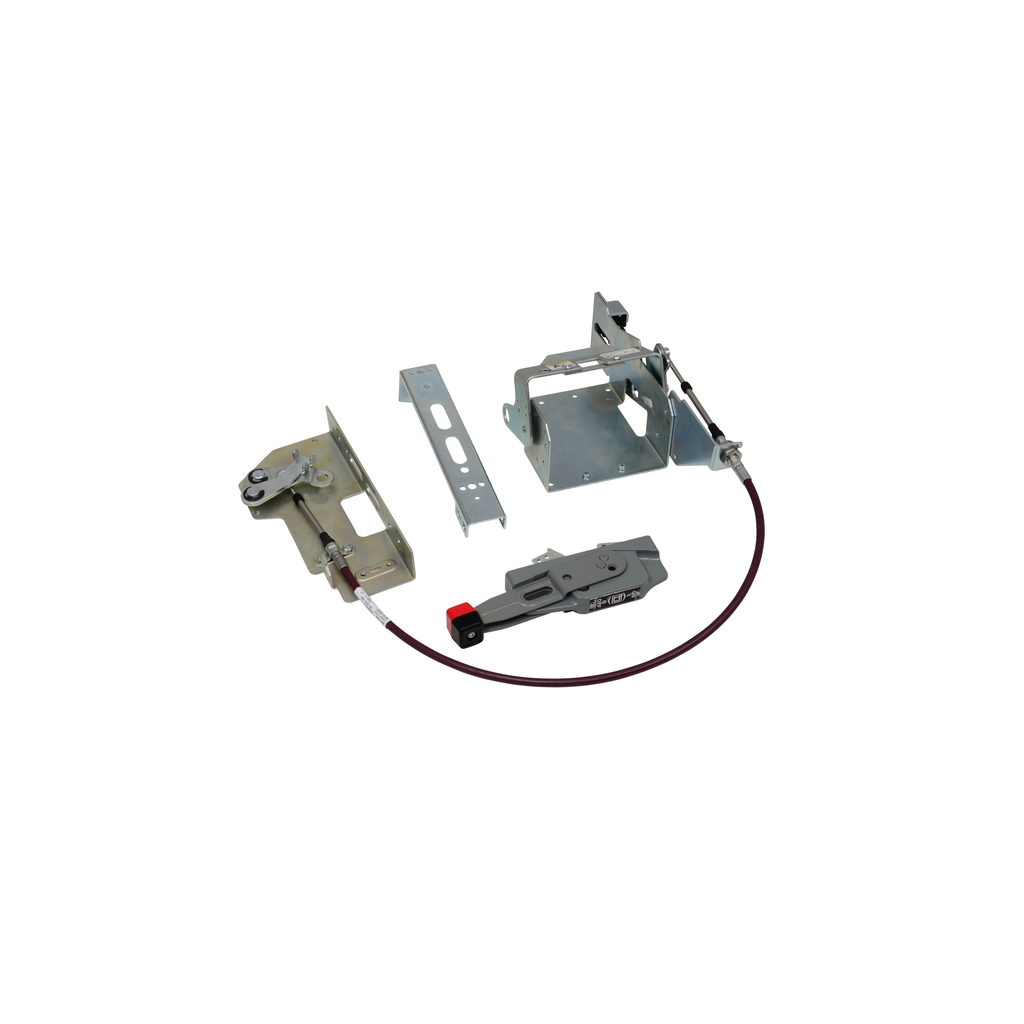

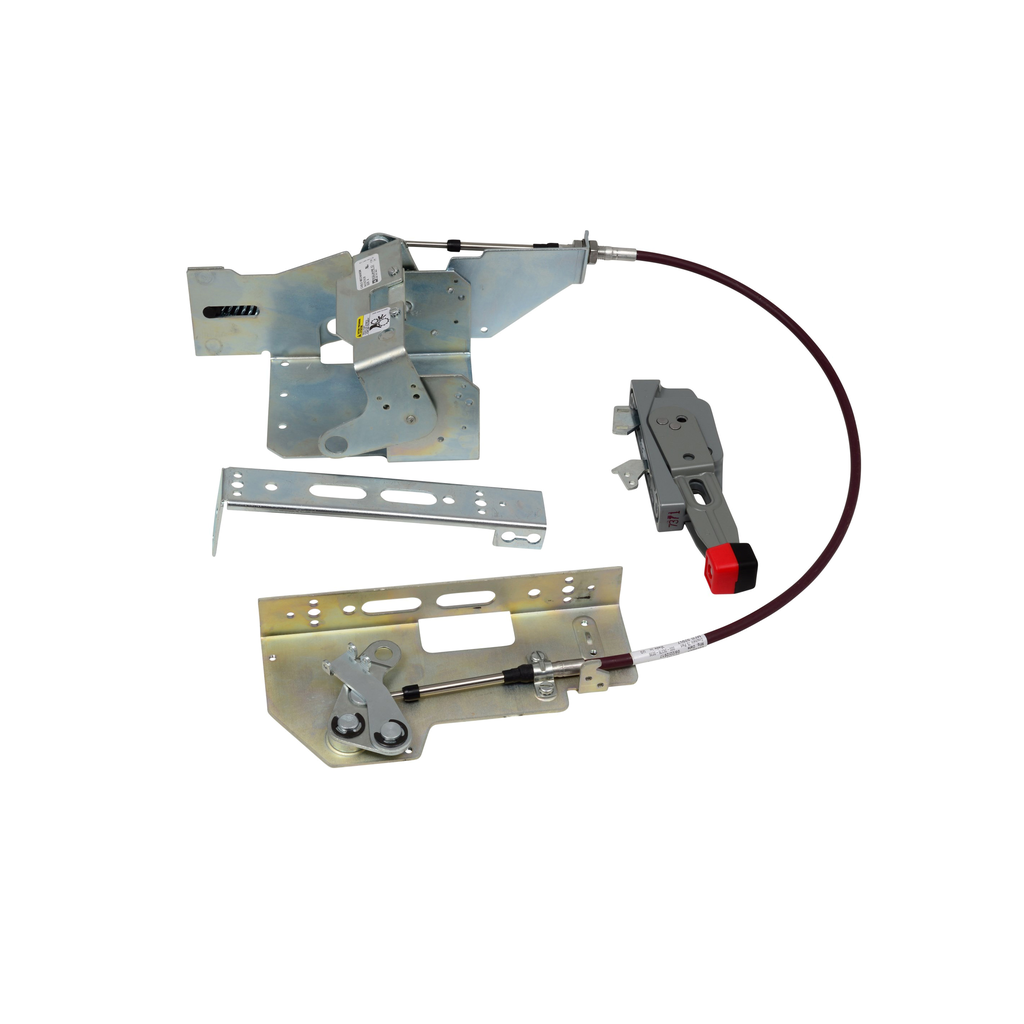

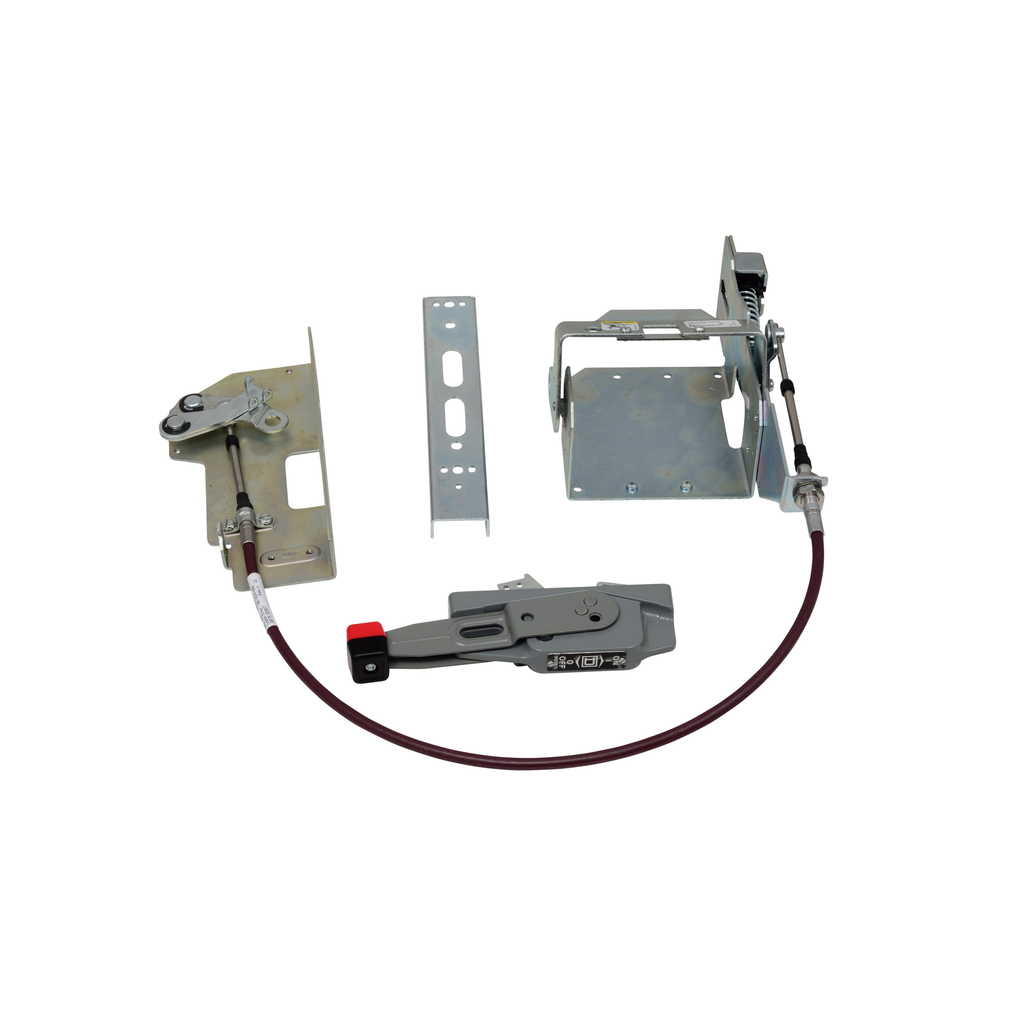

Square D 9422CFA31 36 Inch Cable 3-Pole 100 Amp Circuit Breaker Flexible Cable Operating Mechanism

Manufacturer: Square-D / Schneider | Catalog # 9422CFA31 | Cooper Electric Part # 137644
$774.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with FAL, FCL and FHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 100 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated. The handle is NEMA 1, 3, 3R and 12 rated. Cable operated mechanism is UL Component Recognized and CSA certified

Technical Information

Actuator
6 HANDLE INCLUDED (9422A1)
Amperage
100 Amp
Applications
SINGLE CABLE OPERATING MECHANISM FOR FAL/FHL CIRCUIT BREAKERS 36 INCHES
Circuit Breaker Type
FAL/FHL 2,FAL/FHL 3
Enclosure
NEMA 1/3/3R/4/12
Indicator
OFF/ON
Number of Poles
3 Pole
Size
100A FRAME SIZE, 6 INCH HANDLE
TC Connection
FLANGE MOUNT
Trip Type
FAL/FHL CIRCUIT BREAKERS (2 OR 3-POLE) 100A
Type
CABLE MECHANISM

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901868873
GTiN
00785901868873
Product UPC
78590186887

Dimensions

Cable Length
36 in
Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
