Thomas & Betts RC2233 1/4 Inch 12-10 AWG Stud Red Insulated Nylon Locking Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # RC2233 | Cooper Electric Part # 1376018
$142.73/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

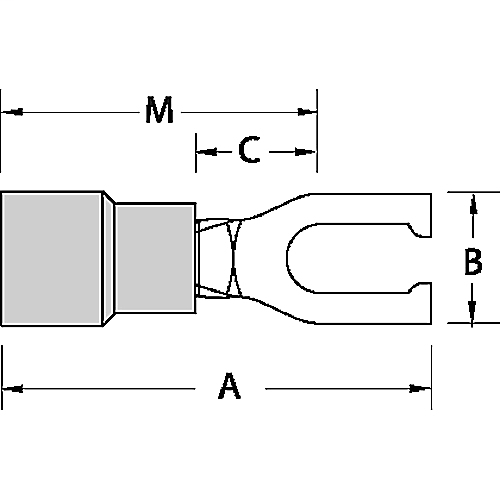

Nylon Insulated Locking Fork Terminal, Length 1.12 Inches, Width .50 Inch, Maximum Insulation .21, Bolt Hole 1/4 Inch, Wire Range #12-10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210887722
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159254
Product UPC
78621088772
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
