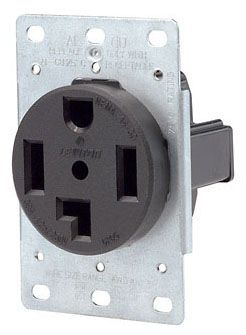

Product image for Leviton 278 NEMA 14-30R 30amp 3 Pole 4 Wire Straight Blade Industrial Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Leviton 278 NEMA 14-30R 30amp 3 Pole 4 Wire Straight Blade Industrial Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 278 | Cooper Electric Part # 13746
$6,657.34/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Leviton 071-00278-000 4 Wire 30 Amp 250 Volt Flush Mount Dryer Receptacle

Technical Information

Amperage
30 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-6 AWG
Connection Type
Side Wire
Contact Material
Brass
Contact Type
Double-Wipe
Current
30 Amp
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Flush
NEMA
14-30R,WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Size
3.75 H x 2.50 W x 2.10 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Terminal Size
4 AWG
Type
Flush Mount,Straight Blade
Voltage
125/250 Volt
Wire Count
4
Wire Size
14-6 AWG

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477074510
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00078477074510
Product UPC
07847707451

Dimensions

Warranty Length
10 yr
Additional Information
  • Power Rating 2 HP
  • Wire Size up to 4 AWG
  • Face Material Nylon
  • Strap Material Galvanized Steel
  • Operating Temperature Rating -40 to 60 Deg C
  • Application Industrial
  • Applicable Standard ANSI C73, UL 94 V-2 NOM 057, NEMA WD-6
Features
  • Built of Durable Thermoplastic
  • Heavy Gauge, Double-Wipe Copper Alloy Contacts
  • Easy to Wire Terminals Accept up to #4 AWG Conductors
  • Terminals Marked for Easy Identification and Fast Wiring
  • Flush Mount Devices Fit 2-Gang Outlet Box
  • RoHS Compliant
