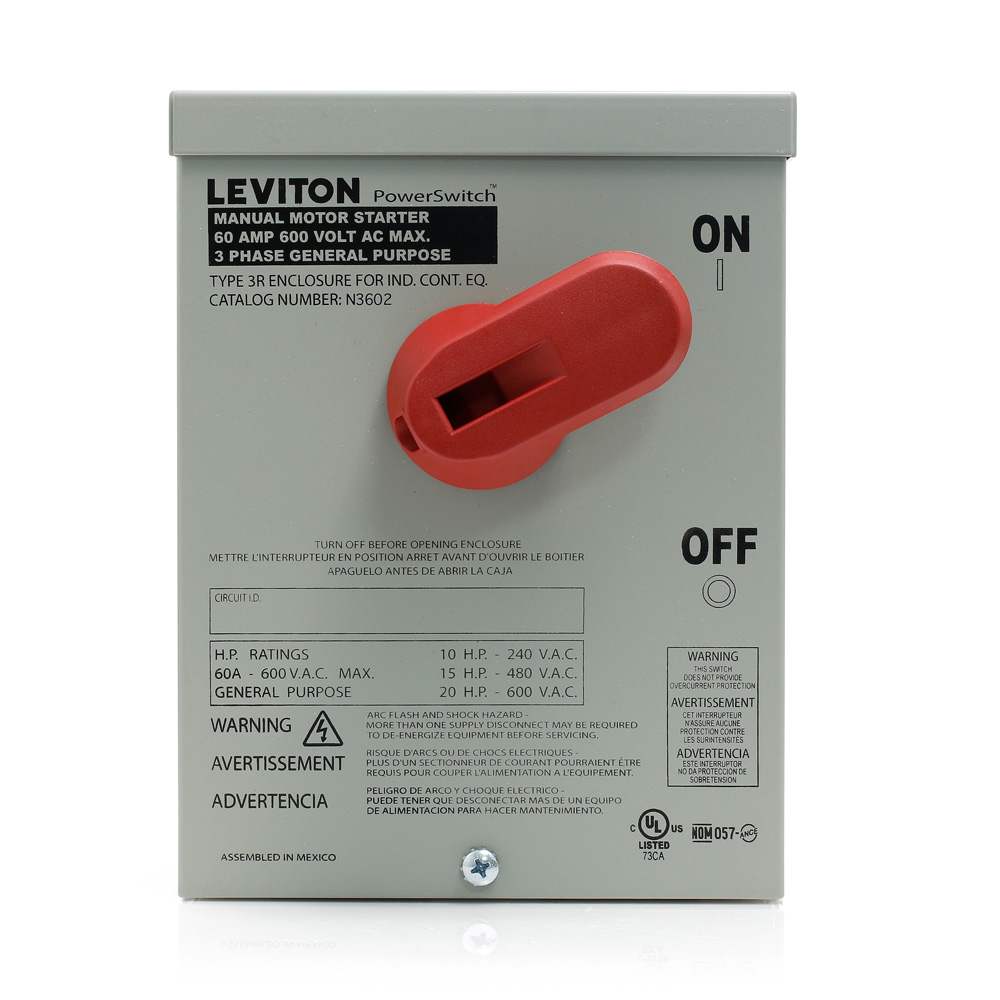

Product image for LEV N3602 GY 3R MTL ENC AC MAN NON-
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV N3602 GY 3R MTL ENC AC MAN NON-

Manufacturer: Leviton Mfg Co | Catalog # N3602 | Cooper Electric Part # 1372018
$219.14/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
60 Amp, 600 Volt, Toggle In Type 3R Enclosure Double-Pole AC Manual Motor Controller, Industrial Grade, Non-Grounding, Front Wired, - Gray

Technical Information

Action
DP
Actuator
Toggle
Amperage
60 Amp
Applications
For Commercial use
Base Material
Thermoplastic Polyester
Coil Voltage
600 VAC
Connection Type
Back Wired,Side Wired
Contact Configuration
DP
Contact Material
Silver-Cadmium Oxide
Device Type
Enclosed Switch
Dielectric
2200 V
Enclosure
Powder coated sheet steel
Face Material
Thermoplastic Polyester
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
Horsepower
10 hp
Material
Steel
NEMA
WD-1
Number of Poles
2 Pole
Operating Temperature
-40 to 65 degrees C
Size
8.1 H x 6.3 W x 4.3 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 to 65 degrees C
Temperature Rise
50 degrees C
Termination Type
Front
Toggle Material
Thermoplastic Polyester
Torque
25 lb-in
Type
Non-Reversing
Voltage
600 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Powerswitch®

General Product Info

12-Digit UPC
078477101858
Color
Gray
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477101858
Product UPC
07847710185

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features

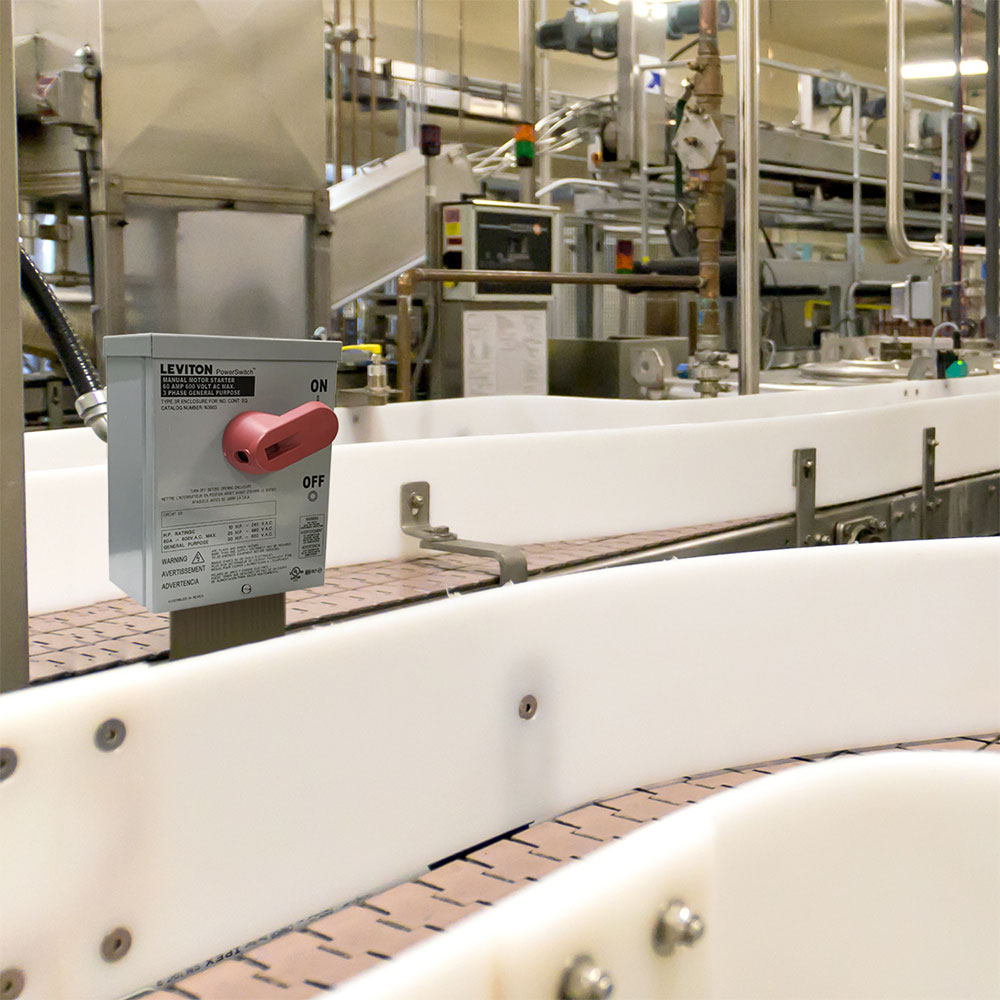

  • Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
