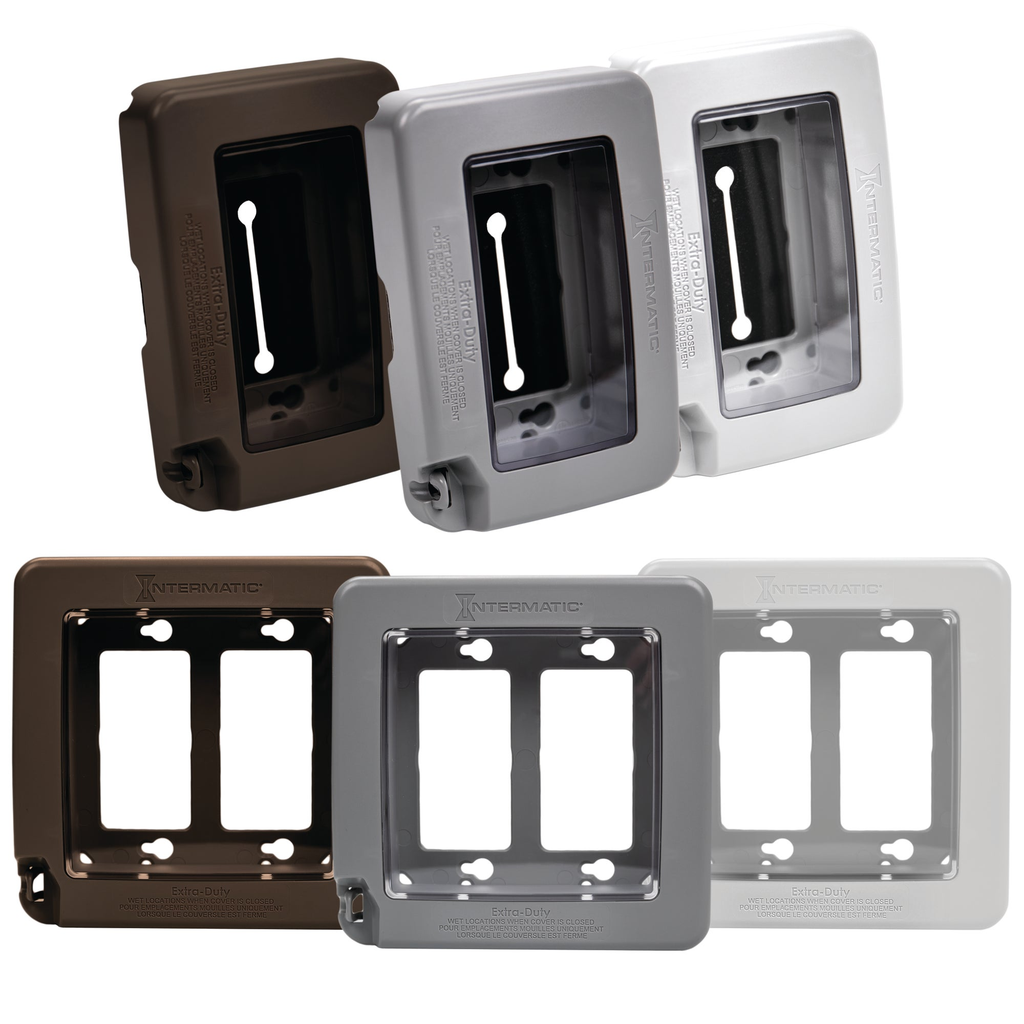

Product image for Intermatic WP7000G 1Gang Waterproof Low-Profile In-Use Cover, Extra-Duty, Vertical / Horizontal - Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

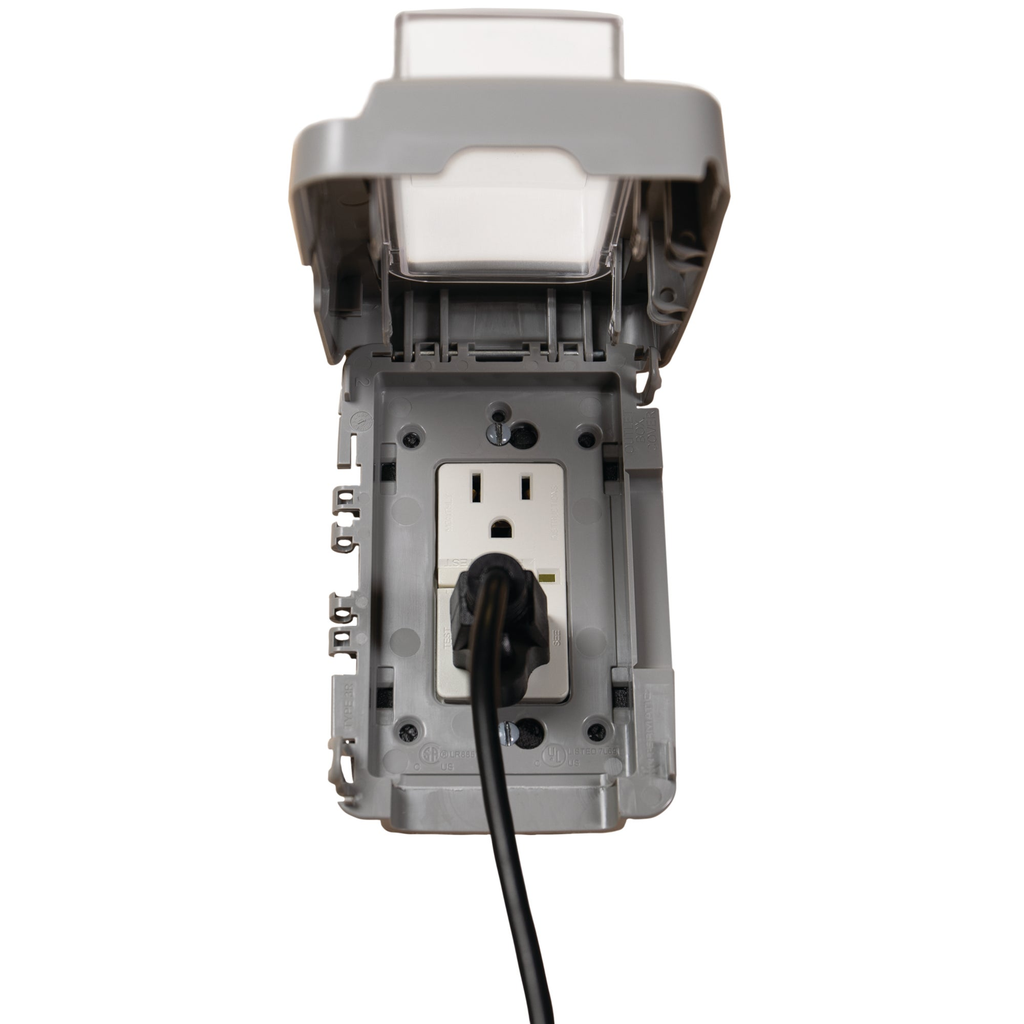

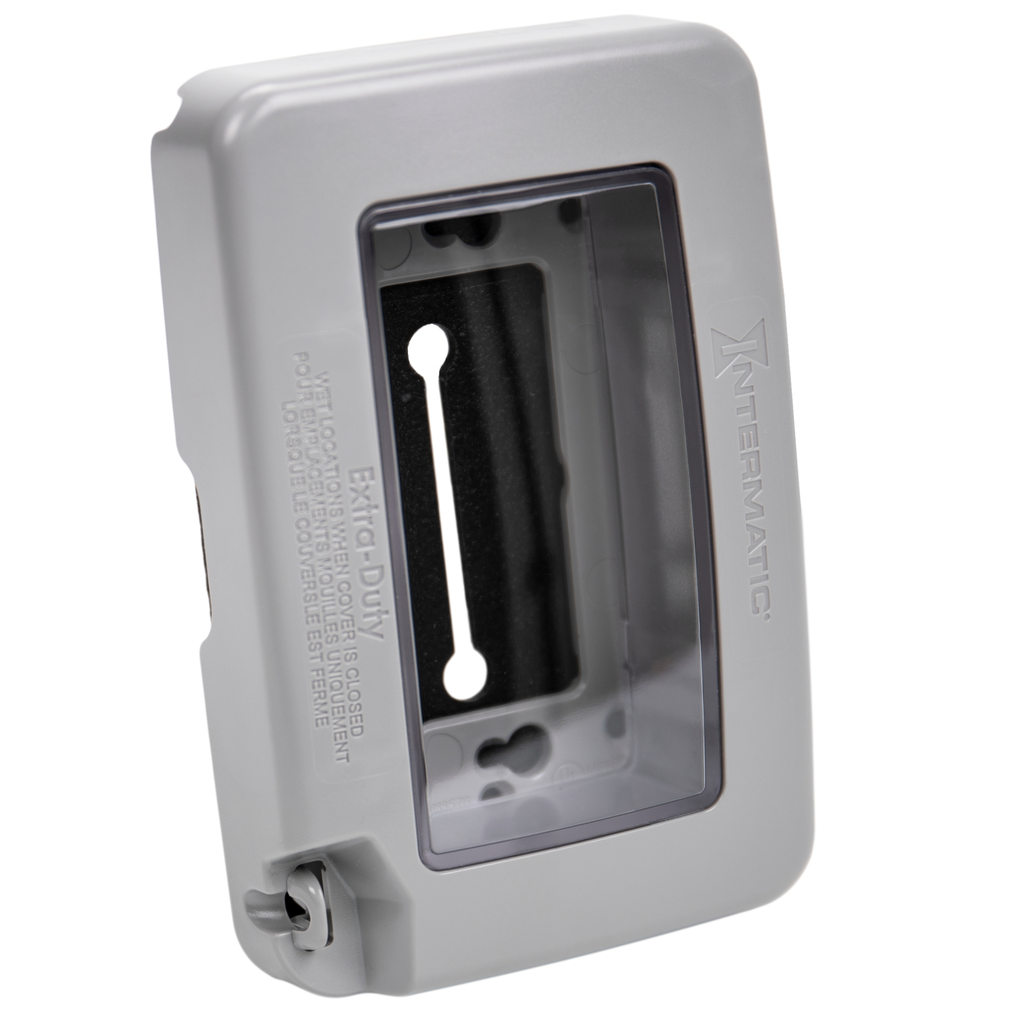

Intermatic WP7000G 1Gang Waterproof Low-Profile In-Use Cover, Extra-Duty, Vertical / Horizontal - Gray

Manufacturer: Intermatic, Inc | Catalog # WP7000G | Cooper Electric Part # 1369196
$33.95/ea
ea
Log in or register to view your price, purchase history, and more!
Single Double
Vertical Vertical/Horizontal
Yes No
Standard Low Profile
12 available

For Pick Up

at Ocean Closes 5:00pm ET
117 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet
Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Outdoor Signage, Athletic Fields, Agricultural, Residential, Commercial
Cover Material
Plastic
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Insulation Type
Neoprene Gasket
Material
Plastic
Mounting Configuration
Mounting screws
Mounting Type
Vertical/Horizontal
Number of Gangs
1 Gang
Size
1.5 x 3.75 x 5.5 in
Type
Low Profile, Extra Duty, Single Gang, Rectangle
Voltage
139.7 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275149878
Color
Gray
Finish
Plastic
GTiN
00078275149878
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827514987
Shape
Rectangle
Used With
Commercial, home
Weight
0.35 lb

Dimensions

Depth
1-1/2 Inch
Diameter
4.8 mm
Height
5-1/2 Inch
Length
5-1/2 Inch
Warranty Length
1 yr
Width
3-3/4 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 100% Paintable surface
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
  • 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 0.19\" dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
